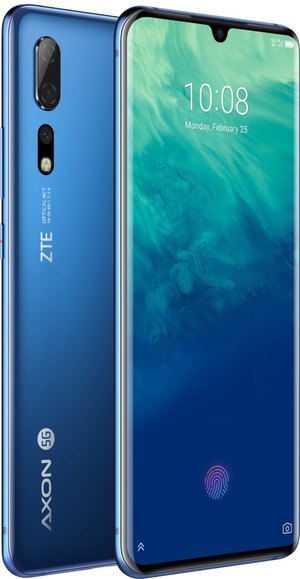

ZTE Axon 10 Pro 5G A2020N3 Premium Edition Dual SIM TD-LTE EMEA 128GB (ZTE A2020N)

Osnovno

Datum izlaska

2019-05-29

Brend

ZTE

Model

Axon 10 Pro 5G A2020N3 Premium Edition Dual SIM TD-LTE EMEA 128GB

Najavljen

2019 Feb 20

Dizajner hardvera

ZTE

Proizvođač

ZTE

Kodna oznaka

ZTE A2020N

Dodatna oprema

Haptic touch feedback

Kategorija

Smartphone

Kućište

Masa

175 g

Širina

73.4 mm

Visina

159.2 mm

Debljina

7.9 mm

Zapremina kućišta

92.3 ccm

Ekran

Tip

AM-OLED display

Dijagonala

6.47 inča

Rezolucija

1080x2340

Gustina

398 ppi

Otvor na ekranu

1-notch

Rezolucija

1080x2340

Širina ekrana

68.86 mm

Visina ekrana

149.2 mm

Horizontal Full Bezel Width

4.54 mm

Površina ekrana

10274.8 square millimeter

Display Area Utilization

87.9%

Pixel Size

0.06376 mm/pixel

Gustina piksela

398 PPI

Tip ekrana

Color AM-OLED display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

8 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Zaštita ekrana

Da

Graphical Controller

Qualcomm Adreno 640

GPU Clock:

585 MHz

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-855-sm8150

Takt procesora

2842 MHz

Procesor

Qualcomm Snapdragon 855 SM8150 (Hana), 2019, 64 bit, octa-core, 64 Kbyte I-Cache, 64 Kbyte D-Cache, 1792 Kbyte L2, 2048 Kbyte L3, 7 nm, Qualcomm Adreno 640 GPU

Tip RAM memorije

LPDDR4x SDRAM

RAM

6144 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

UFS 2.1

Interna memorija

122070 MiB non-volatile

Memorija

RAM

6 GB

Interna

128 GB

Baterija

Kapacitet

4000 mAh

Battery

Lithium-ion

Nominal Cell Voltage (1st cell)

3.85 Volts

Nominal Cell Capacity (1st cell)

4000 mAh cell

Nominal Battery Voltage

3.85 Volts

Kapacitet baterije

4000 mAh battery

Nominal Battery Energy

15.40 Wh

Wireless Charging

Qi wireless charging

Market Countries

Austria , Bahrain , Finland , Germany , Jordan , Kuwait , Oman , Qatar , Saudi Arabia , Spain , Emirates (UAE) , UK

Market Regions

Asia , Europe , Middle East , Western Europe

Mobile Operator

Etisalat UAE Saudi Telecom Company

Data Integrity

Preliminary

Added

2020-06-26 13:18

Softver

Platforma

Google Android

Operativni sistem

Google Android 9.0 (Pie)

Softverske mogućnosti

Voice Command , Navigation software , Augmented Reality (AR) , Virtual Reality (VR) support , Intelligent personal assistant , Face Recognition

Zvuk

Audio Channel(s)

8

Microphone(s)

stereo

D/A Converter Nominal Resolution

24 bit quantization

D/A Holding Frequency

192000 Hz

Loudspeaker(s):

mono

Audio Output:

USB Type-C

Supported Cellular Data Links

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , DC-HSDPA 42.2 Mbps (Cat. 24) , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) , LTE 150 Mbps / 50 Mbps (Cat. 4) , LTE 300 Mbps / 50 Mbps (Cat. 6) , LTE 300 Mbps / 100 Mbps (Cat. 7) , LTE 450 Mbps / 100 Mbps (LTE Cat. 10) , LTE 600 Mbps / 50 Mbps (LTE Cat. 11) , LTE 1.2 Gbps / 200 Mbps (LTE Cat. 18) data links

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

128-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE)

Cellular Controller

Qualcomm SM8150

Dual Cellular Network Operation

Dual standby

Sec. Supported Cellular Data Links:

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , DC-HSDPA 42.2 Mbps (Cat. 24) , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) , LTE 150 Mbps / 50 Mbps (Cat. 4) , LTE 300 Mbps / 50 Mbps (Cat. 6) , LTE 300 Mbps / 100 Mbps (Cat. 7) , LTE 450 Mbps / 100 Mbps (LTE Cat. 10)

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Qualcomm SM8150

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB On-The-Go 2.0 , USB Power Delivery , USB Power Delivery 2.0

USB Connector

USB Type-C reversible

Max. Charging Power

18.0 W charging

Bluetooth

Bluetooth 5.0

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , DIP , HFP , HID , HSP , MAP , OPP , PAN , PBA , SAP

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering , WiDi , Wi-Fi Calling (VoWiFi)

NFC

NFC A , NFC B

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Supported BeiDou system (BDS)

B1I BeiDou receiver

Navigation Controller

Qualcomm SM8150

Kamere

Camera Placement

Rear

Camera Module

Sony IMX586

Senzor kamere

BSI CMOS

Image Sensor Format

1/2.00

Image Sensor Pixel Size

0.80 micrometer

Camera Resolution

8000x6000 pixel

Number of effective pixels

48.0 MP camera

Aperture (W)

f/1.70

Zoom

3.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Minimal Focal Length

28 mm

Recordable Image Formats

JPG

Video snimanje

4096x2160 pixel

Recordable Video Formats

MPEG4

Flash

dual LED

Camera Extra Functions

Optical Image Stabilization (OIS) , Pixel unification , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Refocus , Touch focus , Macro mode , Panorama Photo , Face detection , Smile detection , Face retouch , Intelligent scene detection

Aux. Camera Image Sensor

BSI CMOS

Aux. Camera Number of Pixels

19.7 MP aux. cam

Aux. Camera Aperture (W)

f/2.20

Aux. Cam. Min. Equiv. Focal Length

11 mm

Aux. Camera Extra Functions

Pixel unification , HDR photo , HDR video , Burst mode

Aux. 2 Camera Image Sensor

CMOS

Aux. 2 Camera Number of Pixels

8.0 MP aux. 2 cam

Aux. 2 Camera Aperture (W)

f/2.40

Aux. 2 Cam. Min. Equiv. Focal Length

80 mm

Aux. 2 Camera Extra Functions

Optical Image Stabilization (OIS) , HDR photo , Burst mode , Panorama Photo

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

5120x3840 pixel

Secondary Camera Number of pixels

19.7 MP sec. cam

Secondary Aperture (W)

f/2.00

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1920x1080 pixel

Secondary Recordable Video Formats

3GP

Secondary Camera Extra Functions

Pixel unification , HDR photo , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video)

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

3D (3-axis) accelerometer

Built-in gyroscope

3D (3-axis) gyro

Additional sensors

In-screen fingerprint sensor , Light intensity sensor , Proximity sensor

Zaštita od prašine

5 Protected against dust with limited ingress (no harmful deposit)

Zaštita od vode

4 Protection against water sprayed from all directions (limited ingress permitted)
