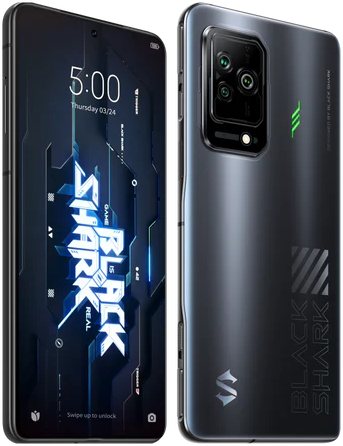

Xiaomi Black Shark 5 5G Standard Edition Global Dual SIM TD-LTE 128GB PAR-H0 (Xiaomi Patriot)

Osnovno

Datum izlaska

2022-05-12

Brend

Xiaomi

Model

Black Shark 5 5G Standard Edition Global Dual SIM TD-LTE 128GB PAR-H0

Najavljen

2022 Mar

Dizajner hardvera

Xiaomi

Kodna oznaka

Xiaomi Patriot

Dodatna oprema

Haptic touch feedback

Kategorija

Smartphone

Kućište

Masa

220 g

Širina

76.35 mm

Visina

163.83 mm

Debljina

10.4 mm

Typical depth

9.9 mm

Zapremina kućišta

130.1 ccm

Ekran

Tip

AM-OLED display

Dijagonala

6.67 inča

Rezolucija

1080x2400

Gustina

395 ppi

Display Hole

1-hole

Rezolucija

1080x2400

Širina ekrana

69.52 mm

Visina ekrana

154.48 mm

Horizontal Full Bezel Width

6.83 mm

Površina ekrana

10738.8 square millimeter

Display Area Utilization

85.9%

Pixel Size

0.06437 mm/pixel

Gustina piksela

395 PPI

Tip ekrana

Color AM-OLED display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

10 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Display Refresh Rate

144 Hz

Zaštita ekrana

Da

Graphical Controller

Qualcomm Adreno 650

GPU Clock:

670 MHz

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-870-5g-sm8250-ac

Takt procesora

3190 MHz

Procesor

Qualcomm Snapdragon 870 5G SM8250-AC (Kona), 2021, 64 bit, octa-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache, 2304 Kbyte L2, 4096 Kbyte L3, 7 nm, Qualcomm Adreno 650 GPU

Tip RAM memorije

LPDDR5 SDRAM

RAM

8192 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

UFS 3.1

Interna memorija

122070 MiB non-volatile

Memorija

RAM

8 GB

Interna

128 GB

Baterija

Kapacitet

4650 mAh

Battery

Lithium-ion polymer (LiPo)

Battery Cells in Parallel

Da

Nominal Cell Voltage (1st cell)

3.87 Volts

Nominal Cell Capacity (1st cell)

2325 mAh cell

Nominal Battery Voltage (2nd cell)

3.87 Volts

Nominal Cell Capacity (2nd cell)

2325 mAh cell

Nominal Battery Voltage

3.87 Volts

Kapacitet baterije

4650 mAh battery

Nominal Battery Energy

18.00 Wh

Market Countries

Australia , Austria , Bahrain , Belarus , Belgium , Bulgaria , Canada , Cyprus , Croatia , Czech Republic , Denmark , Estonia , Finland , France , Germany , Greece , HK , Hungary , India , Ireland , Israel , Italy , Japan , Kuwait , Latvia , Lithuania , Luxembourg , Malaysia , Netherlands , Nerway , NZ , Oman , Philippines , Poland , Portugal , Qatar , Romania , Russia , Saudi Arabia , Slovakia , Singapore , Slovenia , South Korea , Spain , Sweden , Taiwan , Thailand , Turkey , Emirates (UAE) , UK , USA , Vietnam

Market Regions

Asia , Eastern Europe , Europe , Middle East , Southeast Asia , Western Europe

Price

549

Data Integrity

Final

Added

2022-10-16 22:24

Softver

Platforma

Google Android

Operativni sistem

Google Android 12 (S)

Softverske mogućnosti

Voice Command , Navigation software , Augmented Reality (AR) , Intelligent personal assistant , Face Recognition

Zvuk

Audio Channel(s)

stereo

Microphone(s)

3

Loudspeaker(s):

stereo

Audio Output:

3.5mm

Supported Cellular Data Links

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , HSPA+ 42.2 Mbps (Cat. 20) , DC-HSDPA 42.2 Mbps (Cat. 24) , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) , LTE 150 Mbps / 50 Mbps (Cat. 4) , LTE 300 Mbps / 50 Mbps (Cat. 6) , LTE 600 Mbps / 50 Mbps (LTE Cat. 11) , LTE 1 Gbps / 100 Mbps (LTE Cat. 16) , NR 1.5 Gbps , NR 2.6 Gbps data links

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE) , Video over LTE (ViLTE)

Cellular Controller

Qualcomm SM8250

Dual Cellular Network Operation

Dual standby

Sec. Supported Cellular Data Links:

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 42.2 Mbps (Cat. 20) , DC-HSDPA 42.2 Mbps (Cat. 24) , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) , LTE 150 Mbps / 50 Mbps (Cat. 4) , LTE 300 Mbps / 50 Mbps (Cat. 6) , LTE 600 Mbps / 50 Mbps (LTE Cat. 11) , LTE 1 Gbps / 100 Mbps (LTE Cat. 16)

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Qualcomm SM8250

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Touchscreen Sampling rate

720 Hz

Proširenja

Ne

USB

USB 2.0

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB On-The-Go 2.0 , USB Power Delivery , USB Power Delivery 2.0 , USB Power Delivery 3.0

USB Connector

USB Type-C reversible

Max. Charging Power

120.0 W charging

Bluetooth

Bluetooth 5.0

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , GATT , GAVDP , HID , HSP , OPP , PAN , PBA

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac , IEEE 802.11ax (Wi-Fi 6)

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering , WiDi , Wi-Fi Calling (VoWiFi)

NFC

NFC A , NFC B

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Kétfrekvenciás GPS , Geotagging , QuickGPS , QZSS

Supported GLONASS protocol(s)

L1OF

Supported Galileo service(s)

E1

Supported BeiDou system (BDS)

B1I BeiDou receiver

Navigation Controller

Qualcomm SM8250

Kamere

Camera Placement

Rear

Senzor kamere

BSI CMOS

Image Sensor Pixel Size

0.70 micrometer

Camera Resolution

9216x6912 pixel

Number of effective pixels

63.7 MP camera

Aperture (W)

f/1.79

Zoom

1.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Recordable Image Formats

JPG , RAW

Video snimanje

3840x2160 pixel

Recordable Video Formats

HEVC , MPEG4

Flash

single LED

Camera Extra Functions

Pixel unification , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Refocus , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. Camera Image Sensor

BSI CMOS

Aux. Camera Number of Pixels

8.0 MP aux. cam

Aux. Camera Aperture (W)

f/2.20

Aux. Camera Extra Functions

HDR photo , HDR video , Burst mode , Refocus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. 2 Camera Image Sensor

CMOS

Aux. 2 Camera Number of Pixels

4.9 MP aux. 2 cam

Aux. 2 Camera Aperture (W)

f/2.40

Aux. 2 Camera Extra Functions

Burst mode , Macro mode

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

BSI CMOS

Prednja kamera

5184x3880 pixel

Secondary Camera Number of pixels

20.1 MP sec. cam

Secondary Aperture (W)

f/2.45

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1920x1080 pixel

Secondary Recordable Video Formats

3GP

Secondary Camera Extra Functions

HDR photo , HDR video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

3D (3-axis) accelerometer

Built-in gyroscope

3D (3-axis) gyro

Additional sensors

Barometer , Fingerprint sensor , Hall sensor , Light intensity sensor , Proximity sensor

Zaštita od prašine

Da

Zaštita od vode

Da
