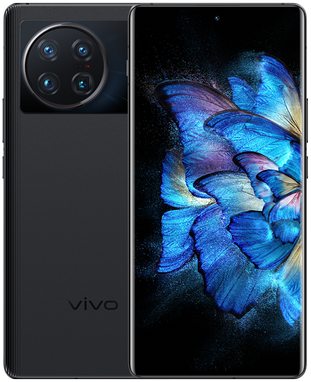

Vivo BBK Vivo X Note 5G 2022 Premium Edition Dual SIM TD-LTE CN 512GB V2170A (BBK V2170A)

Osnovno

Datum izlaska

2022-04-01

Brend

BBK

Model

Vivo X Nete 5G 2022 Premium Edition Dual SIM TD-LTE CN 512GB V2170A

Najavljen

2022 Apr 10

Dizajner hardvera

BBK Electronics

Proizvođač

BBK Electronics

Kodna oznaka

BBK V2170A

Dodatna oprema

Haptic touch feedback , Tactile touch feedback

Kategorija

Smartphone

Kućište

Masa

221 g

Širina

80.31 mm

Visina

168.78 mm

Debljina

8.75 mm

Zapremina kućišta

118.6 ccm

Ekran

Tip

AM-OLED display

Dijagonala

7 inča

Rezolucija

1440x3080

Gustina

486 ppi

Display Hole

1-hole

Rezolucija

1440x3080

Širina ekrana

75.3 mm

Visina ekrana

161.07 mm

Horizontal Full Bezel Width

5.01 mm

Površina ekrana

12128.8 square millimeter

Display Area Utilization

89.5%

Pixel Size

0.05229 mm/pixel

Gustina piksela

486 PPI

Tip ekrana

Color AM-OLED display

Dubina boja

30 bit/pixel

Number of Display Scales

1073.7M

Display Dynamic Range Depth

10 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Display Refresh Rate

120 Hz

Zaštita ekrana

Da

Graphical Controller

Qualcomm Adreno 730

GPU Clock:

818 MHz

A/V Out

DisplayPort (Unspecified)

A/V Out Max. Resolution

3840x2160 (2160p) 4K UHD

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-8-gen-1-5g-sm8450

Takt procesora

2995 MHz

Procesor

Qualcomm Snapdragon 8 Gen 1 5G SM8450 (Waipio), 2021, 64 bit, octa-core, 6144 Kbyte L3, 4 nm, Qualcomm Adreno 730 GPU

Tip RAM memorije

LPDDR5 SDRAM

RAM

12288 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

UFS 3.1

Interna memorija

488281 MiB non-volatile

Memorija

RAM

12 GB

Interna

512 GB

Baterija

Kapacitet

5000 mAh

Battery

Lithium-ion

Battery Cells in Parallel

Da

Nominal Cell Voltage (1st cell)

3.89 Volts

Nominal Cell Capacity (1st cell)

2500 mAh cell

Softver

Platforma

Google Android

Operativni sistem

Google Android 12 (S)

Softverske mogućnosti

Voice Command , Navigation software , Augmented Reality (AR) , Intelligent personal assistant , Face Recognition

Zvuk

Audio Channel(s)

stereo

Microphone(s)

stereo

Loudspeaker(s):

stereo

Audio Output:

USB Type-C

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE) , Video over LTE (ViLTE)

Cellular Controller

Qualcomm SM8450

Dual Cellular Network Operation

Dual standby

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Qualcomm SM8450

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Touchscreen Sampling rate

240 Hz

Proširenja

Ne

USB

USB 3.0 / USB 3.1 Gen 1 / USB 3.2 Gen 1x1

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB On-The-Go 2.0 , USB Power Delivery , USB Power Delivery 2.0 , USB Power Delivery 3.0

USB Connector

USB Type-C reversible

Max. Charging Power

80.0 W charging

Bluetooth

Bluetooth 5.2

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , GAVDP , HFP , HID , HSP , OPP , PAN , PBA

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac , IEEE 802.11ax (Wi-Fi 6)

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering , WiDi , Wi-Fi Calling (VoWiFi)

NFC

NFC A , NFC B

IR

Da

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Kétfrekvenciás GPS , Geotagging , QuickGPS , QZSS , NavIC

Supported GLONASS protocol(s)

L1OF , L2OF

Supported Galileo service(s)

E1 , E5a

Supported BeiDou system (BDS)

B1I , B2a BeiDou receiver

Navigation Controller

Qualcomm SM8450

Kamere

Camera Placement

Rear

Camera Module

Samsung ISOCELL GN1

Senzor kamere

BSI CMOS

Image Sensor Format

1/1.31

Image Sensor Pixel Size

1.20 micrometer

Camera Resolution

8160x6144 pixel

Number of effective pixels

50.1 MP camera

Aperture (W)

f/1.57

Zoom

5.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF) , Laser Autofocus

Min. Equiv. Focal Length

25 mm

Recordable Image Formats

JPG , RAW

Video snimanje

7680x4320 pixel

Recordable Video Formats

3GP , HEVC , MPEG4

Flash

triple LED

Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , Optical Image Stabilization (OIS) , Pixel unification , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Refocus , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. Camera Image Sensor

BSI CMOS

Aux. Cam. Image Sensor Format

1/2.00

Aux. Cam. Image Sensor Pixel Size

0.80 micrometer

Aux. Camera Number of Pixels

48.0 MP aux. cam

Aux. Camera Aperture (W)

f/2.20

Aux. Cam. Min. Equiv. Focal Length

14 mm

Aux. Camera Extra Functions

Video Stabilizer (EIS) , Pixel unification , HDR photo , HDR video , Slow motion video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. 2 Camera Image Sensor

BSI CMOS

Aux. 2 Cam. Image Sensor Pixel Size

1.22 micrometer

Aux. 2 Cam. Image Sensor Format

1/2.93

Aux. 2 Camera Number of Pixels

12.0 MP aux. 2 cam

Aux. 2 Camera Aperture (W)

f/1.98

Aux. 2 Cam. Min. Equiv. Focal Length

47 mm

Aux. 2 Camera Focus

Phase-Detection Autofocus (PD AF)

Aux. 2 Camera Extra Functions

Video Stabilizer (EIS) , Gimbal , HDR photo , HDR video , Slow motion video , Burst mode , Touch focus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. 3 Camera Image Sensor

BSI CMOS

Aux. 3 Camera Number of Pixels

8.0 MP aux. 3 cam

Aux. 3 Camera Aperture (W)

f/3.40

Aux. 3 Cam. Min. Equiv. Focal Length

125 mm

Aux. 3 Camera Focus

Phase-Detection Autofocus (PD AF)

Aux. 3 Camera Extra Functions

Video Stabilizer (EIS) , Optical Image Stabilization (OIS) , HDR photo , Slow motion video , Burst mode , Touch focus , Panorama Photo , Intelligent scene detection

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

BSI CMOS

Prednja kamera

4608x3456 pixel

Secondary Camera Number of pixels

15.9 MP sec. cam

Secondary Aperture (W)

f/2.45

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1920x1080 pixel

Secondary Recordable Video Formats

MPEG4

Secondary Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , Pixel unification , HDR photo , HDR video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

3D (3-axis) compass

Built-in accelerometer

3D (3-axis) accelerometer

Built-in gyroscope

3D (3-axis) gyro

Additional sensors

Barometer , In-screen fingerprint sensor , Light intensity sensor , Proximity sensor , Step counter

Zaštita od prašine

6 Totally protected from dust (no ingress)

Zaštita od vode

8 Persistently protected against immersion beyond 1 meter of depth

Immersion into liquids (depth limit)

150 cm

Immersion into liquids time limit

30 min
