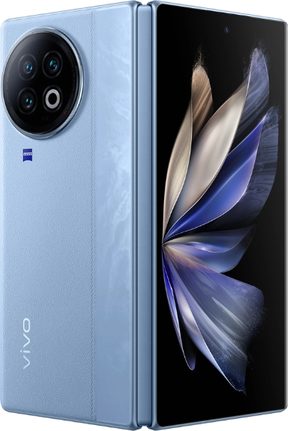

Vivo BBK Vivo X Fold2 5G 2023 Dual SIM TD-LTE CN 512GB V2266A (BBK V2266A)

Osnovno

Datum izlaska

2023-04-01

Brend

BBK

Model

Vivo X Fold2 5G 2023 Dual SIM TD-LTE CN 512GB V2266A

Najavljen

2023 Apr 20

Dizajner hardvera

BBK Electronics

Proizvođač

BBK Electronics

Kodna oznaka

BBK V2266A

Dodatna oprema

Haptic touch feedback , Tactile touch feedback , Foldable screen

Kategorija

Smartphone

Kućište

Masa

279 g

Širina

73.42 mm

Visina

161.29 mm

Debljina

5.95 mm

Zapremina kućišta

70.5 ccm

Ekran

Tip

AM-OLED display

Dijagonala

6.53 inča

Rezolucija

1080x2520

Gustina

420 ppi

Display Hole

1-hole

Rezolucija

1080x2520

Širina ekrana

65.34 mm

Visina ekrana

152.45 mm

Horizontal Full Bezel Width

8.08 mm

Površina ekrana

9960.4 square millimeter

Display Area Utilization

84.1%

Pixel Size

0.0605 mm/pixel

Gustina piksela

420 PPI

Tip ekrana

Color AM-OLED display

Display Subtype

Da

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

10 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Display Refresh Rate

120 Hz

Zaštita ekrana

Da

Secondary Display Hole

1-hole

Secondary Display Diagonal:

203.96 mm

Secondary Display Resolution

2160x1916

Secondary Number of pixels:

4138560 pixels

Secondary Horizontal Display Size:

152.58 mm

Secondary Horizontal Display Size :

6.01 inch

Secondary Vertical Display Size:

135.35 mm

Secondary Display Area:

20651.3 square millimeter

Secondary Display Pixel Size:

0.07064 mm/pixel

Secondary Display Pixel Density (dot pitch):

360 PPI

Secondary Display Type:

Color AM-OLED 2nd display

Secondary Display Subtype:

Foldable AMOLED

Secondary Display Color Depth:

24 bit/pixel

Secondary Number of Display Colors/Scales:

16.8M

Secondary Display Dyn. Range Depth:

10 bit/pixel

Secondary Display Illumination:

Self-illuminating

Secondary Display Light Reflection Mode:

Da

Secondary Display Subpixel Scheme:

Da

Secondary Display Refresh Rate

120 Hz

Graphical Controller

Qualcomm Adreno 740

GPU Clock:

680 MHz

A/V Out

DisplayPort (Unspecified)

A/V Out Max. Resolution

3840x2160 (2160p) 4K UHD

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-8-gen-2-5g-sm8550-ab

Takt procesora

3187 MHz

Procesor

Qualcomm Snapdragon 8 Gen 2 5G SM8550-AB (Kalama), 2022, 64 bit, octa-core, 8192 Kbyte L3, 4 nm, Qualcomm Adreno 740 GPU

Tip RAM memorije

LPDDR5X SDRAM

RAM

12288 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

UFS 4.0

Interna memorija

488281 MiB non-volatile

Memorija

RAM

12 GB

Interna

512 GB

Baterija

Kapacitet

4800 mAh

Softver

Platforma

Google Android

Operativni sistem

Google Android 13 (Tiramisu)

Softverske mogućnosti

Voice Command , Navigation software , Augmented Reality (AR) , Intelligent personal assistant , Face Recognition

Zvuk

Audio Channel(s)

stereo

Microphone(s)

stereo

Loudspeaker(s):

stereo

Audio Output:

USB Type-C

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE) , Video over LTE (ViLTE)

Cellular Controller

Qualcomm SM8550

Dual Cellular Network Operation

Dual standby

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Qualcomm SM8550

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Proširenja

Ne

USB

USB 3.0 / USB 3.1 Gen 1 / USB 3.2 Gen 1x1

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB On-The-Go 2.0 , USB Power Delivery , USB Power Delivery 2.0 , USB Power Delivery 3.0

USB Connector

USB Type-C reversible

Max. Charging Power

120.0 W charging

Bluetooth

Bluetooth 5.3

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , GAVDP , HFP , HID , HSP , OPP , PAN , PBA

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac , IEEE 802.11ax (Wi-Fi 6) , IEEE 802.11be (Wi-Fi 7)

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering , WiDi , Wi-Fi Calling (VoWiFi)

NFC

NFC A , NFC B

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Kétfrekvenciás GPS , Geotagging , QuickGPS , QZSS

Supported GLONASS protocol(s)

L1OF , L2OF

Supported Galileo service(s)

E1 , E5a

Supported BeiDou system (BDS)

B1c , B1I , B2a , B2b BeiDou receiver

Navigation Controller

Qualcomm SM8550

Kamere

Camera Placement

Rear

Camera Module

Sony IMX866

Senzor kamere

BSI CMOS

Image Sensor Format

1/1.49

Image Sensor Pixel Size

1.00 micrometer

Camera Resolution

8160x6144 pixel

Number of effective pixels

50.1 MP camera

Aperture (W)

f/1.75

Zoom

2.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF) , Laser Autofocus

Recordable Image Formats

JPG , RAW

Video snimanje

7680x4320 pixel

Recordable Video Formats

3GP , HEVC , MPEG4

Flash

quad LED

Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , Optical Image Stabilization (OIS) , Pixel unification , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Refocus , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. Camera Image Sensor

BSI CMOS

Aux. Camera Module

Sony IMX663

Aux. Cam. Image Sensor Format

1/2.93

Aux. Cam. Image Sensor Pixel Size

1.22 micrometer

Aux. Camera Number of Pixels

12.0 MP aux. cam

Aux. Camera Aperture (W)

f/2.00

Aux. Cam. Min. Equiv. Focal Length

16 mm

Aux. Camera Focus

Phase-Detection Autofocus (PD AF)

Aux. Camera Extra Functions

Video Stabilizer (EIS) , HDR photo , HDR video , Slow motion video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. 2 Camera Image Sensor

BSI CMOS

Aux. 2 Cam. Image Sensor Pixel Size

1.22 micrometer

Aux. 2 Cam. Image Sensor Format

1/2.93

Aux. 2 Camera Number of Pixels

12.0 MP aux. 2 cam

Aux. 2 Camera Aperture (W)

f/1.98

Aux. 2 Cam. Min. Equiv. Focal Length

47 mm

Aux. 2 Camera Focus

Phase-Detection Autofocus (PD AF)

Aux. 2 Camera Extra Functions

Video Stabilizer (EIS) , HDR photo , HDR video , Slow motion video , Burst mode , Touch focus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

BSI CMOS

Prednja kamera

4608x3456 pixel

Secondary Camera Number of pixels

15.9 MP sec. cam

Secondary Aperture (W)

f/2.45

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1920x1080 pixel

Secondary Recordable Video Formats

MPEG4

Secondary Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , Pixel unification , HDR photo , HDR video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection
