Samsung

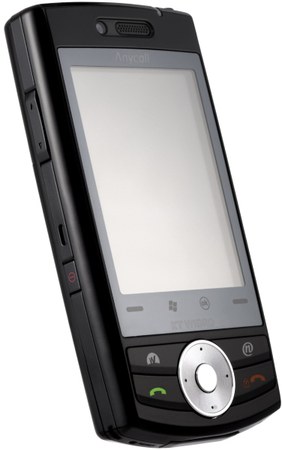

Samsung SPH-M8200
Model iz 2007. godine, ekran od 2.8 inča, baterija od 1500 mAh.
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2007-12-01
- Brend
- Samsung
- Model
- SPH-M8200
- Dizajner hardvera
- Samsung Electronics
- Proizvođač
- Samsung Electronics
- Kategorija
- Smartphone
Kućište
- Masa
- 144 g
- Širina
- 58 mm
- Visina
- 114 mm
- Debljina
- 16.6 mm
- Zapremina kućišta
- 109.8 ccm
Ekran
- Tip
- Color TN-TFT LCD display
- Dijagonala
- 2.8 inča
- Rezolucija
- 240x320
- Gustina
- 143 ppi
- Rezolucija
- 240x320
- Širina ekrana
- 42.6 mm
- Visina ekrana
- 56.8 mm
- Horizontal Full Bezel Width
- 15.4 mm
- Površina ekrana
- 2419.7 square millimeter
- Display Area Utilization
- 36.6%
- Pixel Size
- 0.1775 mm/pixel
- Gustina piksela
- 143 PPI
- Tip ekrana
- Color TN-TFT LCD display
- Dubina boja
- 18 bit/pixel
- Number of Display Scales
- 262144
- Osvetljenje ekrana
- LED
- Display Light Reflection Mode
- transflective
- Display Subpixel Scheme
- RGB Matrix (3 subpixels)
- Zaštita ekrana
- Ne
- Graphical Controller
- N/A
- A/V Out
- Da
- A/V Out Max. Resolution
- Da
Platforma
- Sistem
- Windows Mobile
- Čip
- intel-xscale-pxa270
- Takt procesora
- 520 MHz
- Procesor
- Intel XScale PXA270 (Bulverde), 2004, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache
- Tip RAM memorije
- SDRAM
- RAM
- 64 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 384 MiB non-volatile
Memorija
- RAM
- 1 GB
Baterija
- Kapacitet
- 1500 mAh
- Battery
- Lithium-ion
- Nominal Cell Capacity (1st cell)
- 1500 mAh cell
- Kapacitet baterije
- 1500 mAh battery
- Market Countries
- South Korea
- Market Regions
- Asia
- Related Page:
- URL
- Data Integrity
- Preliminary
- Added
- 2009-05-22 15:51
Softver
- Platforma
- Windows (mobile-class)
- Operativni sistem
- Microsoft Windows Mobile 5.0 for Pocket PC Phone Edition (Magneto)
- Operating System Kernel Version
- 5.1
Zvuk
- Audio Channel(s)
- 6
- A/D Converter Nominal Resolution
- 16 bit quantization
- A/D Sampling Frequency
- 44100 Hz
- Microphone(s)
- mono
- D/A Converter Nominal Resolution
- 16 bit quantization
- D/A Holding Frequency
- 44100 Hz
- Loudspeaker(s):
- stereo
- Audio Output:
- Proprietary
- Mrežni opsezi
- CDMA 800MHz (BC0, 850) , CDMA 1900MHz (BC1/BC14, PCS) bands
- Supported Cellular Data Links
- cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 data links
- Cellular Antenna
- Internal antenna
- Call Alert Sound
- 64-chord melody
- Complementary Phone Services
- Voice transmission , Voice speaker , Vibrating Alert , Speakerphone
- Cellular Controller
- Qualcomm MSM6500 (QDSP4000)
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Touchscreen Type
- Resistive touch sensing screen
- Touchscreen Simultaneous Touch Points
- Single-touch
- Proširenja
- MMCmicro
- USB
- USB 2.0
- USB Services
- USB charging
- USB Connector
- Proprietary
- Bluetooth
- Bluetooth 2.0
- Bluetooth profiles
- A2DP , AVRCP
- Wi‑Fi
- Nepoznato
- Wireless MAN
- 802.16e-2005 , WiBro
- FM Radio Receiver
- Ne
- Digital Media Broadcast
- T-DMB receiver
- Supported GPS protocol(s)
- Ne
Kamere
- Camera Placement
- Rear
- Senzor kamere
- CMOS
- Camera Resolution
- 1600x1200 pixel
- Number of effective pixels
- 1.9 MP camera
- Zoom
- 1.0 x optical zoom
- Focus
- Ne
- Recordable Image Formats
- JPG
- Video snimanje
- 320x240 pixel
- Recordable Video Formats
- 3G2 , MPEG4
- Flash
- single LED
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Placement
- Front
- Secondary Camera Sensor
- CMOS
- Prednja kamera
- 640x480 pixel
- Secondary Camera Number of pixels
- 0.3 MP sec. cam
- Secondary Video Recording
- 320x240 pixel
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in accelerometer
- Ne
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
