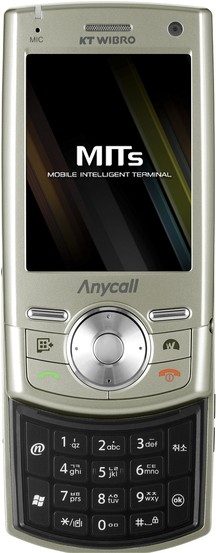

Samsung SPH-M8100

Osnovno

Datum izlaska

2007-04-01

Brend

Samsung

Model

SPH-M8100

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Dodatna oprema

Passive stylus

Kategorija

Smartphone

Kućište

Masa

169.5 g

Širina

58.4 mm

Visina

114.5 mm

Debljina

19.8 mm

Zapremina kućišta

132.4 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.83 inča

Rezolucija

320x240

Gustina

141 ppi

Rezolucija

320x240

Širina ekrana

57.6 mm

Visina ekrana

43.2 mm

Horizontal Full Bezel Width

0.8 mm

Površina ekrana

2488.3 square millimeter

Display Area Utilization

37.2%

Pixel Size

0.18 mm/pixel

Gustina piksela

141 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

18 bit/pixel

Number of Display Scales

262144

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Da

A/V Out Max. Resolution

Da

Platforma

Sistem

Windows Mobile

Čip

n-a

Takt procesora

520 MHz

Tip RAM memorije

SDRAM

RAM

128 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

256 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1300 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1300 mAh cell

Kapacitet baterije

1300 mAh battery

Market Countries

South Korea

Market Regions

Asia

Related Page:

URL

Data Integrity

Preliminary

Added

2008-12-29 16:16

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Mobile 6 Professional (Crossbow)

Operating System Kernel Version

5.2

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

44100 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

stereo

Audio Output:

Proprietary

Mrežni opsezi

CDMA 800MHz (BC0, 850) , CDMA 1900MHz (BC1/BC14, PCS) bands

Supported Cellular Data Links

cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 data links

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

Qualcomm MSM6500 (QDSP4000)

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Tastatura

Slide-out numeric

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

16

Directional Pad

Four-way (with action button)-way

Proširenja

Secure Digital Input/Output interface , TransFlash , microSD , microSDHC

USB

USB 1.1

USB Services

USB charging

USB Connector

Proprietary

Bluetooth

Bluetooth 2.0

Bluetooth profiles

A2DP

Wi‑Fi

Ne

Wireless MAN

802.16e-2005 , WiBro

FM Radio Receiver

Ne

Digital Media Broadcast

T-DMB receiver

Supported GPS protocol(s)

Ne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

1600x1200 pixel

Number of effective pixels

1.9 MP camera

Zoom

1.0 x optical zoom

Focus

Ne

Recordable Image Formats

BMP , JPG

Video snimanje

320x240 pixel

Recordable Video Formats

3G2 , MPEG4

Flash

single LED

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

640x480 pixel

Secondary Camera Number of pixels

0.3 MP sec. cam

Secondary Video Recording

320x240 pixel

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
