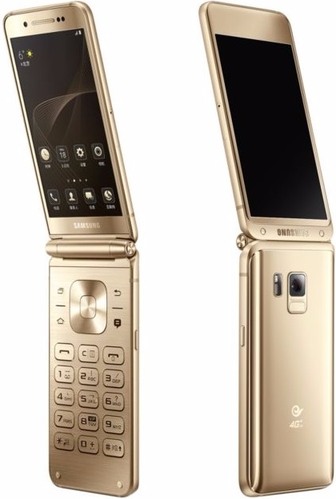

Samsung SM-W2017 Galaxy Golden 4 Dual SIM TD-LTE (Samsung Veyron)

Osnovno

Datum izlaska

2016-11-01

Brend

Samsung

Model

SM-W2017 Galaxy Golden 4 Dual SIM TD-LTE

Najavljen

2016 Nev 4

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kodna oznaka

Samsung Veyron

Dodatna oprema

Haptic touch feedback

Kategorija

Smartphone

Kućište

Masa

208 g

Širina

61.4 mm

Visina

127.8 mm

Debljina

15.8 mm

Zapremina kućišta

124 ccm

Ekran

Tip

AM-OLED display

Dijagonala

4.21 inča

Rezolucija

1080x1920

Gustina

523 ppi

Rezolucija

1080x1920

Širina ekrana

52.46 mm

Visina ekrana

93.26 mm

Horizontal Full Bezel Width

8.94 mm

Površina ekrana

4892.2 square millimeter

Display Area Utilization

62.3%

Pixel Size

0.04857 mm/pixel

Gustina piksela

523 PPI

Tip ekrana

Color AM-OLED display

Display Subtype

Super AM-OLED

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

8 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Subpixel Scheme

RGBG PenTile Matrix (2 subpixels)

Zaštita ekrana

Ne

Secondary Display Diagonal:

107 mm

Secondary Display Resolution

1080x1920

Secondary Number of pixels:

2073600 pixels

Secondary Horizontal Display Size:

52.46 mm

Secondary Horizontal Display Size :

2.07 inch

Secondary Vertical Display Size:

93.26 mm

Secondary Display Area:

4892.2 square millimeter

Secondary Display Pixel Size:

0.04857 mm/pixel

Secondary Display Pixel Density (dot pitch):

523 PPI

Secondary Display Type:

Color AM-OLED 2nd display

Secondary Display Subtype:

Super AM-OLED

Secondary Display Color Depth:

24 bit/pixel

Secondary Number of Display Colors/Scales:

16.8M

Secondary Display Dyn. Range Depth:

8 bit/pixel

Secondary Display Illumination:

Self-illuminating

Secondary Display Subpixel Scheme:

RGBG PenTile Matrix (2 subpixels)

Graphical Controller

Qualcomm Adreno 530

Dedicated Graphics Memory

1 MiB

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-820-msm8996

Takt procesora

2150 MHz

Procesor

Qualcomm Snapdragon 820 MSM8996, 2015, 64 bit, quad-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache, 1536 Kbyte L2, 14 nm, Qualcomm Adreno 530 GPU

Tip RAM memorije

mobile (LP) DDR4 SDRAM

RAM

4096 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

61035 MiB non-volatile

Memorija

RAM

4 GB

Interna

64 GB

Baterija

Kapacitet

2300 mAh

Battery

Lithium-ion

Nominal Cell Voltage (1st cell)

3.85 Volts

Nominal Cell Capacity (1st cell)

2300 mAh cell

Nominal Battery Voltage

3.85 Volts

Kapacitet baterije

2300 mAh battery

Nominal Battery Energy

8.86 Wh

Vreme pripravnosti

208 hours

Standby Current

11 mA

Wireless Charging

Qi wireless charging

Softver

Platforma

Google Android

Operativni sistem

Google Android 7.0 (Neugat)

Zvuk

Audio Channel(s)

stereo

Microphone(s)

Da

Loudspeaker(s):

mono

Audio Output:

Da

Mrežni opsezi

GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , CDMA 800MHz (BC0, 850) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , LTE 1700/2100 MHz (Band 4, AWS) , LTE 850 MHz (Band 5) , LTE 2600 MHz (Band 7) , LTE 850 MHz (Band 26) , TD-LTE 2500 MHz (Band XLI) bands

Supported Cellular Data Links

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSDPA (Cat. unspecified) , cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 , CDMA2000 1xEV-DO Revision A , LTE (Cat. unspecified) , LTE 150 Mbps / 50 Mbps (Cat. 4) , LTE 300 Mbps / 50 Mbps (Cat. 6) data links

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

Qualcomm MSM8996

SAR (head)

0.100 W/kg

SAR (body)

0.440 W/kg

2nd highest SAR (head)

0.100 W/kg

2nd highest SAR (body)

0.490 W/kg

Dual Cellular Network Operation

Dual standby

Sec. Supported Cellular Networks:

GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2)

Sec. Supported Cellular Data Links:

GPRS (Class unspecified) , EDGE (Class unspecified)

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Qualcomm MSM8996

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Tastatura

Built-in numeric

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

19

Directional Pad

Four-way (with action button)-way

Proširenja

miniSDHC , TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging , USB Host , USB On-The-Go 1.3 , USB Power Delivery

USB Connector

USB Series Micro-AB

Bluetooth

Bluetooth 4.1

Bluetooth profiles

A2DP , AVRCP , DIP , HFP , HSP , OPP , PAN , PBA

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering

NFC

NFC A , NFC B

FM Radio Receiver

FM radio (76-108 MHz) with RDS

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Supported BeiDou system (BDS)

B1I BeiDou receiver

Navigation Controller

Qualcomm MSM8996 iZat

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

4000x3000 pixel

Number of effective pixels

12.0 MP camera

Aperture (W)

f/1.70

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

3840x2160 pixel

Recordable Video Formats

3GP , 3G2 , MPEG4

Flash

single LED

Camera Extra Functions

HDR photo , Red-eye effect reduction , Slow motion video , Touch focus , Macro mode , Panorama Photo , Face detection , Smile detection

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

2576x1932 pixel

Secondary Camera Number of pixels

5.0 MP sec. cam

Secondary Aperture (W)

f/1.90

Secondary Recordable Image Formats

JPG

Secondary Recordable Video Formats

3GP

Secondary Camera Extra Functions

Panorama Photo , Face detection , Smile detection , Face retouch

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Built-in gyroscope

Da

Additional sensors

Barometer , Fingerprint sensor , Hall sensor , Heart rate sensor , Light intensity sensor , Proximity sensor , Step counter

Zaštita od prašine

Da

Zaštita od vode

Da
