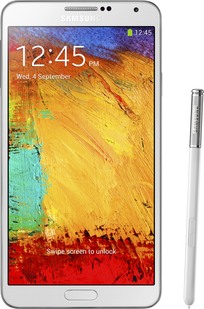

Samsung SM-N9005 Galaxy Note 3 LTE 32GB

Model iz 2013. godine, ekran od 5.68 inča, baterija od 3200 mAh.

Ovo je posebna verzija uređaja. Glavna stranica modela: Samsung SM-N900V Galaxy Note 3 LTE.

Najavljen: —Oznaka: —

Druge verzije ovog modela

Tehnički podaci

Specifikacije

Sistem: Android
Čip: qualcomm-snapdragon-800-msm8974ab-v2
Takt procesora: 2265 MHz
Procesor: Qualcomm Snapdragon 800 MSM8974AB v2, 2013, 32 bit, quad-core, 16 Kbyte I-Cache, 16 Kbyte D-Cache, 2048 Kbyte L2, 28 nm, Qualcomm Adreno 330 GPU
Tip RAM memorije: mobile (LP) DDR3 SDRAM
RAM: 3072 MiB RAM
RAM IC: Samsung K3QF7F70DM-QGCE
Non-volatile Memory Type: Flash EEPROM
Non-volatile Memory Interface: eMMC 5.0
Interna memorija: 30518 MiB non-volatile
Non-volatile Memory IC: Samsung KLMBG4GEAC-B001

Kapacitet: 3200 mAh
Battery: Lithium-ion
Nominal Cell Voltage (1st cell): 3.80 Volts
Nominal Cell Capacity (1st cell): 3200 mAh cell
Nominal Battery Voltage: 3.80 Volts
Kapacitet baterije: 3200 mAh battery
Nominal Battery Energy: 12.16 Wh
Power Supply Controller IC: Qualcomm PM8941
Market Countries: Australia , France , Germany , Oman , Russia , Spain , Sweden , Emirates (UAE) , UK
Market Regions: Australia , Eastern Europe , Europe , Middle East , Western Europe
Data Integrity: Preliminary
Added: 2013-09-05 07:01

Audio Channel(s): stereo
Audio Controller: Qualcomm WCD9320
A/D Converter Nominal Resolution: 24 bit quantization
A/D Sampling Frequency: 192000 Hz
Microphone(s): 3
D/A Converter Nominal Resolution: 24 bit quantization
D/A Holding Frequency: 192000 Hz
Loudspeaker(s):: mono
Audio Output:: 3.5mm
Mrežni opsezi: GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , LTE 850 MHz (Band 5) , LTE 2600 MHz (Band 7) , LTE 900 MHz (Band 8) , LTE 800 MHz (Band 20) bands
Supported Cellular Data Links: GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 12 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , HSPA+ 42.2 Mbps (Cat. 20) , LTE (Cat. unspecified) , LTE 150 Mbps / 50 Mbps (Cat. 4) data links
SIM: Da
Cellular Antenna: Internal antenna
Call Alert Sound: 64-chord melody
Complementary Phone Services: Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC
Cellular Controller: Qualcomm MSM8974AB
SAR (head): 0.290 W/kg
SAR (body): 0.363 W/kg
Sec. Supported Cellular Networks:: Ne

Touchscreen Type: Capacitive multi-touch sensing screen
Touchscreen Simultaneous Touch Points: Da
Proširenja: TransFlash , microSD , microSDHC , microSD Extended Capacity
USB: USB 3.0 / USB 3.1 Gen 1 / USB 3.2 Gen 1x1
USB Services: USB charging , USB Host , USB On-The-Go 1.3 , USB Power Delivery
USB Connector: USB Series Micro-AB
Bluetooth: Bluetooth 4.0
Bluetooth profiles: A2DP , A2DP with aptX codec , AVRCP
Wi‑Fi: IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac
Wireless Services: Wi-Fi Direct , Wi-Fi Tethering
WLAN Controller IC: Murata 0154A1
IR: Da
FM Radio Receiver: Ne
Supported GPS protocol(s): GPS (NMEA 0183)
Satellite Antenna:: Internal antenna
Complementary Satellite Services: Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS
Supported GLONASS protocol(s): L1OF
Navigation Controller: Qualcomm MSM8974AB gpsOne

Camera Placement: Rear
Senzor kamere: CMOS
Camera Resolution: 4128x3096 pixel
Number of effective pixels: 12.8 MP camera
Zoom: 1.0 x optical zoom
Focus: Contrast Detection Autofocus (CD AF)
Recordable Image Formats: JPG
Video snimanje: 3840x2160 pixel
Recordable Video Formats: 3GP , 3G2 , MPEG4
Flash: single LED
Camera Extra Functions: Optical Image Stabilization (OIS) , Slow motion video , Touch focus , Macro mode , Panorama Photo
Aux. Camera Image Sensor: Ne
Aux. 2 Camera Image Sensor: Ne
Aux. 3 Camera Image Sensor: Ne
Aux. 4 Camera Image Sensor: Ne
Aux. 4 Camera Focus: Ne
Secondary Camera Placement: Front
Secondary Camera Sensor: CMOS
Prednja kamera: 1920x1080 pixel
Secondary Camera Number of pixels: 2.1 MP sec. cam
Secondary Recordable Image Formats: JPG
Secondary Video Recording: 1920x1080 pixel
Secondary Recordable Video Formats: 3G2
Sec. Aux. Cam. Image Sensor: Ne
Sec. Aux. 2 Cam. Image Sensor: Ne

Built-in compass: Da
Built-in accelerometer: Da
Built-in gyroscope: Da
Additional sensors: Barometer , Fingerprint sensor , Hall sensor , Humidity sensor , Light intensity sensor , Proximity sensor , Thermometer
Zaštita od prašine: Da
Zaštita od vode: Da
