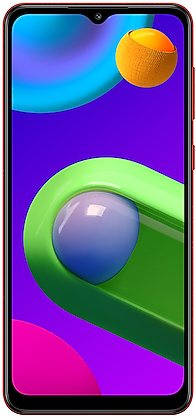

Samsung SM-M022M/DS Galaxy M02 2021 Premium Edition Dual SIM LTE LATAM (Samsung A022)

Osnovno

Datum izlaska

2021-02-01

Brend

Samsung

Model

SM-M022M/DS Galaxy M02 2021 Premium Edition Dual SIM LTE LATAM

Najavljen

2021 Feb

Dizajner hardvera

Wingtech Mobile

Proizvođač

Wingtech Mobile

Kodna oznaka

Samsung A022

OEM ID

M022MZKDTPA

Dodatna oprema

Haptic touch feedback

Kategorija

Smartphone

Kućište

Masa

206 g

Širina

75.9 mm

Visina

165.4 mm

Debljina

9.1 mm

Zapremina kućišta

114.2 ccm

Ekran

Tip

Color PLS TFT LCD display

Dijagonala

6.52 inča

Rezolucija

720x1600

Gustina

269 ppi

Otvor na ekranu

1-notch

Rezolucija

720x1600

Širina ekrana

67.92 mm

Visina ekrana

150.92 mm

Horizontal Full Bezel Width

7.98 mm

Površina ekrana

10250 square millimeter

Display Area Utilization

81.6%

Pixel Size

0.09433 mm/pixel

Gustina piksela

269 PPI

Tip ekrana

Color PLS TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

8 bit/pixel

Osvetljenje ekrana

LED

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Zaštita ekrana

Da

Graphical Controller

PowerVR Ge8100

A/V Out

Ne

Platforma

Sistem

Android

Čip

mediatek-mt6739

Takt procesora

1500 MHz

Procesor

MediaTek MT6739, 2017, 64 bit, quad-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache, 28 nm, IMG PowerVR GE8100 GPU

Tip RAM memorije

mobile (LP) DDR3 SDRAM

RAM

3072 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

eMMC 5.1

Interna memorija

30518 MiB non-volatile

Memorija

RAM

3 GB

Interna

32 GB

Baterija

Kapacitet

5000 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

5000 mAh cell

Kapacitet baterije

5000 mAh battery

Estimated Battery Life

19.0 hours

Estimated Average Current

263 mA

Talk Time:

24.0 hours

Current During Talk

208 mA

Market Countries

Brazil , Costa Rica , Guatemala , Paraguay

Market Regions

Central America , South America (SA)

Data Integrity

Final

Added

2021-07-11 13:49

Softver

Platforma

Google Android

Operativni sistem

Google Android 10 (Q)

Softverske mogućnosti

Navigation software , Face Recognition

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 1700/2100MHz (Band IV, AWS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , LTE 2100 MHz (Band 1) , LTE 1900 MHz (Band 2, PCS) , LTE 1800 MHz (Band 3) , LTE 1700/2100 MHz (Band 4, AWS) , LTE 850 MHz (Band 5) , LTE 2600 MHz (Band 7) , LTE 900 MHz (Band 8) , LTE 700 MHz (Band 12) , LTE 700 MHz (Band 17) , LTE 700 MHz (Band 28) , LTE 1700/2100 MHz (Band 66) bands

Supported Cellular Data Links

GPRS (Class unspecified) , GPRS Multi-slot Class 33 , EDGE (Class unspecified) , EDGE Multi-slot Class 33 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , DC-HSDPA 42.2 Mbps (Cat. 24) , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) , LTE 150 Mbps / 50 Mbps (Cat. 4) data links

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE)

Cellular Controller

MediaTek MT6739WW

SAR (head)

0.530 W/kg

SAR (body)

0.740 W/kg

Dual Cellular Network Operation

Dual standby

Sec. Supported Cellular Networks:

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 1700/2100MHz (Band IV, AWS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , LTE 2100 MHz (Band 1) , LTE 1900 MHz (Band 2, PCS) , LTE 1800 MHz (Band 3) , LTE 1700/2100 MHz (Band 4, AWS) , LTE 850 MHz (Band 5) , LTE 2600 MHz (Band 7) , LTE 900 MHz (Band 8) , LTE 700 MHz (Band 12) , LTE 700 MHz (Band 17) , LTE 700 MHz (Band 28) , LTE 1700/2100 MHz (Band 66)

Sec. Supported Cellular Data Links:

GPRS (Class unspecified) , GPRS Multi-slot Class 33 , EDGE (Class unspecified) , EDGE Multi-slot Class 33 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , HSPA+ 42.2 Mbps (Cat. 20) , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) , LTE 150 Mbps / 50 Mbps (Cat. 4)

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

MediaTek MT6739WW

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging , USB Host

USB Connector

USB Series Micro-AB

Max. Charging Power

7.8 W charging

Bluetooth

Bluetooth 5.0

Bluetooth profiles

A2DP , A2DP with aptX codec , AVRCP , DIP , HCRP , HFP , HID , HSP , MAP , OPP , PAN , PBA

Wi‑Fi

IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering

FM Radio Receiver

FM radio (88-108 MHz) with RDS

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Navigation Controller

MediaTek MT6739ww

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

4160x3120 pixel

Number of effective pixels

13.0 MP camera

Aperture (W)

f/1.90

Zoom

1.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Recordable Image Formats

JPG

Video snimanje

1920x1080 pixel

Recordable Video Formats

MPEG4

Flash

single LED

Camera Extra Functions

HDR photo , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch

Aux. Camera Image Sensor

CMOS

Aux. Camera Number of Pixels

1.9 MP aux. cam

Aux. Camera Aperture (W)

f/2.40

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

2560x1920 pixel

Secondary Camera Number of pixels

4.9 MP sec. cam

Secondary Aperture (W)

f/2.00

Secondary Recordable Image Formats

JPG

Secondary Recordable Video Formats

3GP

Secondary Camera Extra Functions

HDR photo , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Da

Additional sensors

Proximity sensor

Zaštita od prašine

Da

Zaštita od vode

Da
