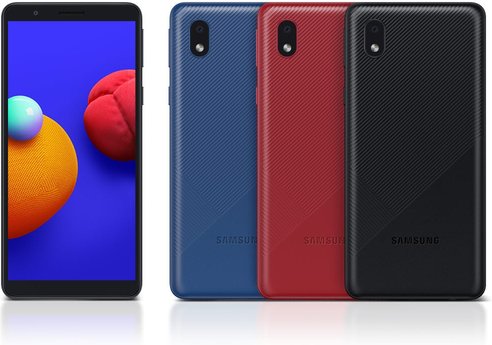

Samsung SM-M013F/DS Galaxy M01 Core 2020 Dual SIM TD-LTE IN 16GB (Samsung A013)

Osnovno

Datum izlaska

2020-07-28

Brend

Samsung

Model

SM-M013F/DS Galaxy M01 Core 2020 Dual SIM TD-LTE IN 16GB

Najavljen

2020 Jul 27

Dizajner hardvera

Huaqin Telecom

Kodna oznaka

Samsung A013

OEM ID

M013FZBD

Dodatna oprema

Haptic touch feedback

Kategorija

Smartphone

Kućište

Masa

150 g

Širina

67.5 mm

Visina

141.7 mm

Debljina

8.6 mm

Zapremina kućišta

82.3 ccm

Ekran

Tip

Color PLS TFT LCD display

Dijagonala

5.31 inča

Rezolucija

720x1480

Gustina

310 ppi

Rezolucija

720x1480

Širina ekrana

58.97 mm

Visina ekrana

121.22 mm

Horizontal Full Bezel Width

8.53 mm

Površina ekrana

7148.2 square millimeter

Display Area Utilization

74.7%

Pixel Size

0.0819 mm/pixel

Gustina piksela

310 PPI

Tip ekrana

Color PLS TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

8 bit/pixel

Osvetljenje ekrana

Da

Display Light Reflection Mode

Da

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Da

Display Module

Samsung

Graphical Controller

PowerVR Ge8100

GPU Clock:

570 MHz

A/V Out

Ne

Platforma

Sistem

Android

Čip

mediatek-mt6739

Takt procesora

1500 MHz

Procesor

MediaTek MT6739, 2017, 64 bit, quad-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache, 28 nm, IMG PowerVR GE8100 GPU

Tip RAM memorije

mobile (LP) DDR3 SDRAM

RAM

1024 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

eMMC 5.1

Interna memorija

15258 MiB non-volatile

Memorija

RAM

1 GB

Interna

16 GB

Baterija

Kapacitet

3000 mAh

Battery

Lithium-ion polymer (LiPo)

Nominal Cell Capacity (1st cell)

3000 mAh cell

Kapacitet baterije

3000 mAh battery

Estimated Battery Life

14.0 hours

Estimated Average Current

214 mA

Talk Time:

17.0 hours

Current During Talk

176 mA

Market Countries

India

Market Regions

Asia

Price

5499

Data Integrity

Final

Added

2021-07-08 22:02

Softver

Platforma

Google Android

Operativni sistem

Google Android 10 Go edition (Q)

Softverske mogućnosti

Voice Command , Navigation software , Intelligent personal assistant , Face Recognition

Zvuk

Audio Channel(s)

stereo

Microphone(s)

stereo

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , UMTS 2100MHz (Band I, IMT) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , LTE 850 MHz (Band 5) , LTE 2600 MHz (Band 7) , LTE 900 MHz (Band 8) , LTE 800 MHz (Band 20) , TD-LTE 2600 MHz (Band 38) , TD-LTE 2300 MHz (Band XL) , TD-LTE 2500 MHz (Band XLI) bands

Supported Cellular Data Links

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSDPA 7.2 Mbps (Cat. 8) , HSPA+ 21.1 Mbps (Cat. 18) , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) , LTE 150 Mbps / 50 Mbps (Cat. 4) , LTE 300 Mbps / 50 Mbps (Cat. 6) data links

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC

Cellular Controller

MediaTek MT6739WW

SAR (head)

0.638 W/kg

SAR (body)

1.180 W/kg

Dual Cellular Network Operation

Dual standby

Sec. Supported Cellular Networks:

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , UMTS 2100MHz (Band I, IMT) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , LTE 850 MHz (Band 5) , LTE 2600 MHz (Band 7) , LTE 900 MHz (Band 8) , LTE 800 MHz (Band 20) , TD-LTE 2600 MHz (Band 38) , TD-LTE 2300 MHz (Band XL) , TD-LTE 2500 MHz (Band XLI)

Sec. Supported Cellular Data Links:

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSDPA 7.2 Mbps (Cat. 8) , HSPA+ 21.1 Mbps (Cat. 18) , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) , LTE 150 Mbps / 50 Mbps (Cat. 4)

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

MediaTek MT6739WW

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-AB

Max. Charging Power

10.0 W charging

Bluetooth

Bluetooth 5.0

Bluetooth profiles

A2DP , A2DP with aptX codec , AVRCP , HFP , HID , LAP , OPP , PAN

Wi‑Fi

IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering

FM Radio Receiver

FM radio (76-108 MHz) with RDS

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Navigation Controller

MediaTek MT6739ww

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

3264x2448 pixel

Number of effective pixels

8.0 MP camera

Aperture (W)

f/2.20

Zoom

1.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Recordable Image Formats

JPG

Video snimanje

1280x720 pixel

Recordable Video Formats

MPEG4

Flash

single LED

Camera Extra Functions

HDR photo , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

2560x1920 pixel

Secondary Camera Number of pixels

4.9 MP sec. cam

Secondary Aperture (W)

f/2.40

Secondary Recordable Image Formats

JPG

Secondary Recordable Video Formats

MPEG4

Secondary Camera Extra Functions

HDR photo , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Da

Additional sensors

Proximity sensor

Zaštita od prašine

Da

Zaštita od vode

Da
