Samsung

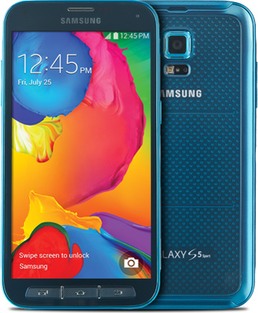

Samsung SM-G860P Galaxy S5 Sport TD-LTE
Model iz 2014. godine, ekran od 5.09 inča, baterija od 2800 mAh.
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2014-07-26
- Brend
- Samsung
- Model
- SM-G860P Galaxy S5 Sport TD-LTE
- Dizajner hardvera
- Samsung Electronics
- Proizvođač
- Samsung Electronics
- Kategorija
- Smartphone
Kućište
- Masa
- 170 g
- Širina
- 73.45 mm
- Visina
- 145.3 mm
- Debljina
- 8.9 mm
- Zapremina kućišta
- 95 ccm
Ekran
- Tip
- AM-OLED display
- Dijagonala
- 5.09 inča
- Rezolucija
- 1080x1920
- Gustina
- 432 ppi
- Rezolucija
- 1080x1920
- Širina ekrana
- 63.44 mm
- Visina ekrana
- 112.78 mm
- Horizontal Full Bezel Width
- 10.01 mm
- Površina ekrana
- 7154.9 square millimeter
- Display Area Utilization
- 67.0%
- Pixel Size
- 0.05874 mm/pixel
- Gustina piksela
- 432 PPI
- Tip ekrana
- Color AM-OLED display
- Display Subtype
- Super AM-OLED Plus
- Dubina boja
- 24 bit/pixel
- Number of Display Scales
- 16.8M
- Osvetljenje ekrana
- Self-illuminating
- Display Subpixel Scheme
- RGBG PenTile Matrix (2 subpixels)
- Zaštita ekrana
- Corning Gorilla Glass 3
- Graphical Controller
- Qualcomm Adreno 330
- Dedicated Graphics Memory
- 0.5 MiB
- A/V Out
- MHL 2.1
- A/V Out Max. Resolution
- 1920x1080 (1080p) FHD
Platforma
- Sistem
- Android
- Čip
- qualcomm-snapdragon-801-msm8974ac-v3
- Takt procesora
- 2457 MHz
- Procesor
- Qualcomm Snapdragon 801 MSM8974AC v3, 2014, 32 bit, quad-core, 2048 Kbyte L2, 28 nm, Qualcomm Adreno 330 GPU
- Tip RAM memorije
- mobile (LP) DDR3 SDRAM
- RAM
- 2048 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 15259 MiB non-volatile
Memorija
- RAM
- 2 GB
- Interna
- 16 GB
Baterija
- Kapacitet
- 2800 mAh
- Battery
- Lithium-ion
- Nominal Cell Capacity (1st cell)
- 2800 mAh cell
- Kapacitet baterije
- 2800 mAh battery
- Market Countries
- USA
- Mobile Operator
- Sprint Nextel Corporation
- Data Integrity
- Final
- Added
- 2014-05-31 20:01
Softver
- Platforma
- Google Android
- Operativni sistem
- Google Android 4.4.2 (KitKat)
Zvuk
- Audio Channel(s)
- stereo
- Audio Controller
- Qualcomm WCD9320
- Microphone(s)
- stereo
- Loudspeaker(s):
- mono
- Audio Output:
- 3.5mm
- Mrežni opsezi
- GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , LTE 1900 MHz (Band 25) , LTE 850 MHz (Band 26) , TD-LTE 2500 MHz (Band XLI) bands
- Supported Cellular Data Links
- GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 12 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , HSPA+ 42.2 Mbps (Cat. 20) , cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 , CDMA2000 1xEV-DO Revision A , LTE (Cat. unspecified) , LTE 150 Mbps / 50 Mbps (Cat. 4) data links
- SIM
- Micro-SIM (3FF)
- Cellular Antenna
- Internal antenna
- Call Alert Sound
- 64-chord melody
- Hearing Aid Compatibility (HAC)
- M3 , T4
- Complementary Phone Services
- Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , Voice over LTE (VoLTE)
- Cellular Controller
- Qualcomm MSM8974AC
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Touchscreen Type
- Capacitive multi-touch sensing screen
- Touchscreen Simultaneous Touch Points
- 5-point
- Proširenja
- TransFlash , microSD , microSDHC , microSD Extended Capacity
- USB
- USB 2.0
- USB Services
- USB charging , USB Host , USB On-The-Go 1.3 , USB Power Delivery
- USB Connector
- USB Series Micro-AB
- Bluetooth
- Bluetooth 4.0
- Bluetooth profiles
- A2DP , A2DP with aptX codec , AVRCP
- Wi‑Fi
- IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac
- Wireless Services
- DLNA , Wi-Fi Direct , Wi-Fi Tethering
- NFC
- Da
- IR
- Da
- FM Radio Receiver
- Ne
- Supported GPS protocol(s)
- GPS (NMEA 0183)
- Satellite Antenna:
- Internal antenna
- Complementary Satellite Services
- Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS
- Supported GLONASS protocol(s)
- L1OF
- Navigation Controller
- Qualcomm MSM8974AC gpsOne
Kamere
- Camera Placement
- Rear
- Senzor kamere
- BSI CMOS
- Camera Resolution
- 5312x2988 pixel
- Number of effective pixels
- 15.9 MP camera
- Zoom
- 1.0 x optical zoom
- Focus
- Contrast Detection Autofocus (CD AF)
- Recordable Image Formats
- JPG
- Video snimanje
- 3840x2160 pixel
- Recordable Video Formats
- 3GP , 3G2 , MPEG4
- Flash
- dual LED
- Camera Extra Functions
- HDR photo , HDR video , Macro mode
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Placement
- Front
- Secondary Camera Sensor
- CMOS
- Prednja kamera
- 1920x1080 pixel
- Secondary Camera Number of pixels
- 2.1 MP sec. cam
- Secondary Recordable Image Formats
- JPG
- Secondary Video Recording
- 1920x1080 pixel
- Secondary Recordable Video Formats
- 3GP
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in compass
- Da
- Built-in accelerometer
- Da
- Built-in gyroscope
- Da
- Additional sensors
- Barometer , Gesture sensor , Heart rate sensor , Light intensity sensor , Proximity sensor , Thermometer
- Zaštita od prašine
- 6 Totally protected from dust (no ingress)
- Zaštita od vode
- 7 Protected against the effect of immersion up to 1m of depth
- Military Standard Compliance (MIL-STD)
- MIL-STD-810G
