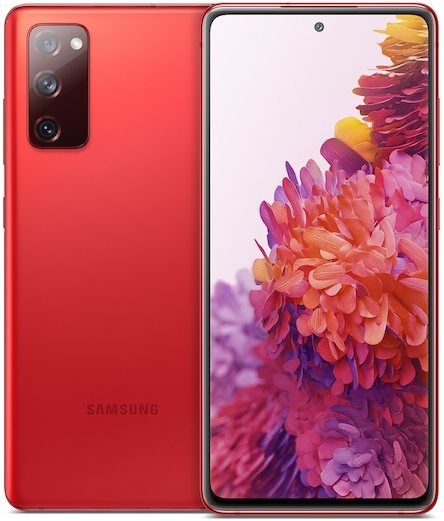

Samsung SM-G780G/DS Galaxy S20 FE Standard Edition Dual SIM TD-LTE 128GB / S20 Lite (Samsung G780)

Osnovno

Datum izlaska

2020-10-02

Brend

Samsung

Model

SM-G780G/DS Galaxy S20 FE Standard Edition Dual SIM TD-LTE 128GB / S20 Lite

Najavljen

2020 Sep 23

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kodna oznaka

Samsung G780

OEM ID

G780GZBDEUB

Dodatna oprema

Haptic touch feedback

Kategorija

Smartphone

Kućište

Masa

190 g

Širina

74.5 mm

Visina

159.8 mm

Debljina

8.4 mm

Zapremina kućišta

100 ccm

Ekran

Tip

AM-OLED display

Dijagonala

6.46 inča

Rezolucija

1080x2400

Gustina

408 ppi

Display Hole

1-hole

Rezolucija

1080x2400

Širina ekrana

67.3 mm

Visina ekrana

149.56 mm

Horizontal Full Bezel Width

7.2 mm

Površina ekrana

10065 square millimeter

Display Area Utilization

84.5%

Pixel Size

0.06231 mm/pixel

Gustina piksela

408 PPI

Tip ekrana

Color AM-OLED display

Display Subtype

Super AM-OLED Plus

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

10 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Display Refresh Rate

120 Hz

Zaštita ekrana

Corning Gorilla Glass 3

Display Module

Samsung

Graphical Controller

Qualcomm Adreno 650

GPU Clock:

587 MHz

A/V Out

DisplayPort (Unspecified)

A/V Out Max. Resolution

3840x2160 (2160p) 4K UHD

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-865-5g-sm8250

Takt procesora

2842 MHz

Procesor

Qualcomm Snapdragon 865 5G SM8250 (Kona), 2020, 64 bit, octa-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache, 2304 Kbyte L2, 4096 Kbyte L3, 7 nm, Qualcomm Adreno 650 GPU

Tip RAM memorije

Da

RAM

6144 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

UFS 3.0

Interna memorija

122070 MiB non-volatile

Memorija

RAM

6 GB

Interna

128 GB

Baterija

Kapacitet

4500 mAh

Battery

Lithium-ion polymer (LiPo)

Nominal Cell Voltage (1st cell)

3.85 Volts

Softver

Platforma

Google Android

Operativni sistem

Google Android 10 (Q)

Softverske mogućnosti

Voice Command , Business card recognition , Navigation software , Augmented Reality (AR) , Intelligent personal assistant , Voice Recognition , Face Recognition

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

32 bit quantization

Microphone(s)

stereo

D/A Converter Nominal Resolution

32 bit quantization

D/A Holding Frequency

384000 Hz

Loudspeaker(s):

stereo

Audio Output:

USB Type-C

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

128-chord melody

Hearing Aid Compatibility (HAC)

M3 , T3

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE) , Video over LTE (ViLTE)

Cellular Controller

Qualcomm SM8250

Dual Cellular Network Operation

Dual standby

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Qualcomm SM8250

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 3.0 / USB 3.1 Gen 1 / USB 3.2 Gen 1x1

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB On-The-Go 2.0 , USB Power Delivery , USB Power Delivery 2.0 , USB Power Delivery 3.0

USB Connector

USB Type-C reversible

Max. Charging Power

25.0 W charging

Bluetooth

Bluetooth 5.0

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , DIP , GAVDP , HFP , HID , HSP , MAP , OPP , PAN , PBA , SAP , SPP

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11i , IEEE 802.11g , IEEE 802.11n , IEEE 802.11r , IEEE 802.11ac , IEEE 802.11ax (Wi-Fi 6)

Wireless Services

DLNA , Miracast , Wi-Fi Direct , Wi-Fi Tethering , WiDi , Wi-Fi Calling (VoWiFi)

NFC

NFC A , NFC B

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS , QZSS

Supported GLONASS protocol(s)

L1OF

Supported Galileo service(s)

E1

Supported BeiDou system (BDS)

B1I BeiDou receiver

Navigation Controller

Qualcomm SM8250

Kamere

Camera Placement

Rear

Senzor kamere

BSI CMOS

Image Sensor Format

1/1.76

Image Sensor Pixel Size

1.80 micrometer

Camera Resolution

4032x3024 pixel

Number of effective pixels

12.2 MP camera

Aperture (W)

f/1.80

Zoom

3.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Min. Equiv. Focal Length

25.3 mm

Recordable Image Formats

JPG

Video snimanje

3480x2160 pixel

Recordable Video Formats

3G2 , HEVC

Flash

single LED

Camera Extra Functions

Video Stabilizer (EIS) , Optical Image Stabilization (OIS) , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. Camera Image Sensor

BSI CMOS

Aux. Cam. Image Sensor Format

1/3.00

Aux. Cam. Image Sensor Pixel Size

1.12 micrometer

Aux. Camera Number of Pixels

12.2 MP aux. cam

Aux. Camera Aperture (W)

f/2.20

Aux. Cam. Min. Equiv. Focal Length

13 mm

Aux. Camera Extra Functions

HDR photo , HDR video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. 2 Camera Image Sensor

BSI CMOS

Aux. 2 Cam. Image Sensor Pixel Size

1.00 micrometer

Aux. 2 Cam. Image Sensor Format

1/4.50

Aux. 2 Camera Number of Pixels

8.0 MP aux. 2 cam

Aux. 2 Camera Aperture (W)

f/2.40

Aux. 2 Cam. Min. Equiv. Focal Length

76 mm

Aux. 2 Camera Extra Functions

HDR photo , Burst mode , Panorama Photo , Intelligent scene detection

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

BSI CMOS

Secondary Image Sensor Format

1/2.74

Secondary Image Sensor Pixel Size

0.80 micrometer

Prednja kamera

6528x4896 pixel

Secondary Camera Number of pixels

32.0 MP sec. cam

Secondary Aperture (W)

f/2.20

Secondary Camera Focus

Phase-Detection Autofocus (PD AF)

Secondary Min. Equiv. Focal Length

26 mm

Secondary Recordable Image Formats

JPG

Secondary Video Recording

3840x2160 pixel

Secondary Recordable Video Formats

3GP , 3G2 , HEVC

Secondary Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , Pixel unification , HDR photo , HDR video , Slow motion video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

3D (3-axis) compass

Built-in accelerometer

3D (3-axis) accelerometer

Built-in gyroscope

3D (3-axis) gyro

Additional sensors

Barometer , In-screen fingerprint sensor , Hall sensor , Heart rate sensor , Light intensity sensor , Proximity sensor , Step counter

Zaštita od prašine

6 Totally protected from dust (no ingress)

Zaštita od vode

8 Persistently protected against immersion beyond 1 meter of depth

Immersion into liquids (depth limit)

150 cm

Immersion into liquids time limit

30 min
