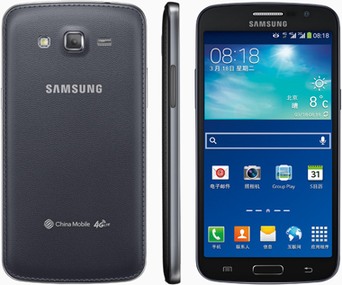

Samsung SM-G7108V Galaxy Grand 2 4G TD-LTE

Osnovno

Datum izlaska

2014-04-01

Brend

Samsung

Model

SM-G7108V Galaxy Grand 2 4G TD-LTE

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

163 g

Širina

75.3 mm

Visina

146.8 mm

Debljina

8.95 mm

Zapremina kućišta

98.9 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

5.25 inča

Rezolucija

720x1280

Gustina

280 ppi

Rezolucija

720x1280

Širina ekrana

65.4 mm

Visina ekrana

116.27 mm

Horizontal Full Bezel Width

9.9 mm

Površina ekrana

7604 square millimeter

Display Area Utilization

68.8%

Pixel Size

0.09083 mm/pixel

Gustina piksela

280 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Da

Display Light Reflection Mode

Da

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

Qualcomm Adreno 305

Dedicated Graphics Memory

0.25 MiB

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-400-msm8926

Takt procesora

1200 MHz

Procesor

Qualcomm Snapdragon 400 MSM8926, 2013, 32 bit, quad-core, 16 Kbyte I-Cache, 16 Kbyte D-Cache, 1024 Kbyte L2, 28 nm, Qualcomm Adreno 305 GPU

Tip RAM memorije

Da

RAM

1536 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

eMMC 4.5

Interna memorija

7629 MiB non-volatile

Memorija

RAM

2 GB

Interna

8 GB

Baterija

Kapacitet

2600 mAh

Battery

Lithium-ion polymer (LiPo)

Nominal Cell Capacity (1st cell)

2600 mAh cell

Kapacitet baterije

2600 mAh battery

Market Countries

China

Market Regions

Asia

Mobile Operator

China Mobile Limited

Data Integrity

Final

Added

2014-03-26 11:27

Softver

Platforma

Google Android

Operativni sistem

Google Android 4.3 (Jelly Bean)

Operating System Kernel Version

3.4.0

Zvuk

Audio Channel(s)

stereo

Microphone(s)

stereo

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , TD-SCDMA 2000 MHz (B34) , TD-SCDMA 1900 MHz (B39) , LTE 1800 MHz (Band 3) , LTE 2600 MHz (Band 7) , TD-LTE 2600 MHz (Band 38) , TD-LTE 1900 MHz (Band 39) , TD-LTE 2300 MHz (Band XL) bands

Supported Cellular Data Links

GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 12 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSDPA (Cat. unspecified) , TD-SCDMA , TD-HSDPA , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) data links

SIM

Micro-SIM (3FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC

Cellular Controller

Qualcomm MSM8926

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging , USB Host , USB Power Delivery

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 4.0

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

Wireless Services

DLNA , Wi-Fi Direct

FM Radio Receiver

Nepoznato

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Navigation Controller

Qualcomm MSM8926 gpsOne

Kamere

Camera Placement

Rear

Senzor kamere

BSI CMOS

Camera Resolution

3264x2448 pixel

Number of effective pixels

8.0 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

1920x1080 pixel

Recordable Video Formats

3GP , 3G2 , MPEG4

Flash

single LED

Camera Extra Functions

Macro mode

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

1600x1200 pixel

Secondary Camera Number of pixels

1.9 MP sec. cam

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1280x720 pixel

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Built-in gyroscope

Da

Additional sensors

Hall sensor , Light intensity sensor , Proximity sensor

Zaštita od prašine

Da

Zaštita od vode

Da
