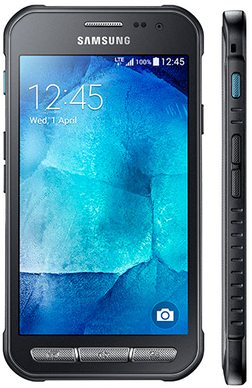

Samsung SM-G388D Galaxy Active neo SC-01H / SGH-N533

Osnovno

Datum izlaska

2015-11-01

Brend

Samsung

Model

SM-G388D Galaxy Active neo SC-01H / SGH-N533

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

154 g

Širina

70.1 mm

Visina

132.9 mm

Debljina

10.1 mm

Zapremina kućišta

94.1 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

4.5 inča

Rezolucija

480x800

Gustina

208 ppi

Rezolucija

480x800

Širina ekrana

58.76 mm

Visina ekrana

97.93 mm

Horizontal Full Bezel Width

11.34 mm

Površina ekrana

5753.7 square millimeter

Display Area Utilization

61.8%

Pixel Size

0.12241 mm/pixel

Gustina piksela

208 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Da

Display Light Reflection Mode

Da

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Corning Gorilla Glass 4

Graphical Controller

Vivante GC7000UL

A/V Out

Ne

Platforma

Sistem

Android

Čip

marvell-armada-pxa1908

Takt procesora

1200 MHz

Procesor

Marvell ARMADA PXA1908, 2014, 64 bit, quad-core, 28 nm, Vivante GC7000UL GPU

Tip RAM memorije

Da

RAM

2048 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

15259 MiB non-volatile

Memorija

RAM

2 GB

Interna

16 GB

Baterija

Kapacitet

2200 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

2200 mAh cell

Kapacitet baterije

2200 mAh battery

Market Countries

Japan , South Korea

Market Regions

Asia

Mobile Operator

NTT DoCoMo

Related Page:

URL

Data Integrity

Preliminary

Added

2015-08-12 10:48

Softver

Platforma

Google Android

Operativni sistem

Google Android 4.4.4 (KitKat)

Zvuk

Audio Channel(s)

stereo

A/D Sampling Frequency

48000 Hz

Microphone(s)

mono

D/A Holding Frequency

48000 Hz

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 850MHz (Band V, CLR) , UMTS 800MHz (Band VI) , UMTS 800MHz (Band XIX) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , LTE 700 MHz (Band 17) , LTE 800 MHz (Band 19) bands

Supported Cellular Data Links

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , LTE (Cat. unspecified) , LTE 150 Mbps / 50 Mbps (Cat. 4) data links

SIM

Micro-SIM (3FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , Voice over LTE (VoLTE)

Cellular Controller

Marvell PXA1908

SAR (head)

0.628 W/kg

SAR (body)

0.796 W/kg

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 4.1

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

NFC

Da

FM Radio Receiver

Ne

Digital Media Broadcast

ISDB-T One-Seg receiver

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS , Geotagging , QuickGPS

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

3264x2448 pixel

Number of effective pixels

8.0 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

1920x1080 pixel

Recordable Video Formats

3GP , MPEG4

Flash

single LED

Camera Extra Functions

Macro mode , Face detection

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

1600x1200 pixel

Secondary Camera Number of pixels

1.9 MP sec. cam

Secondary Recordable Image Formats

JPG

Secondary Video Recording

640x480 pixel

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Additional sensors

Light intensity sensor , Proximity sensor

Zaštita od prašine

5 Protected against dust with limited ingress (no harmful deposit)

Zaštita od vode

7 Protected against the effect of immersion up to 1m of depth

Protection against mechanical impacts

120 cm

Military Standard Compliance (MIL-STD)

MIL-STD-810G
