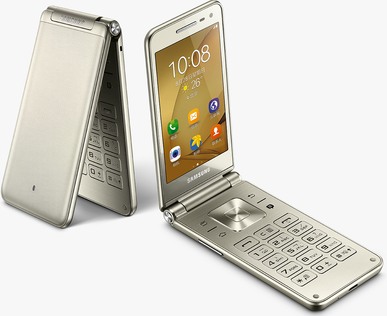

Samsung SM-G1600 Galaxy Folder 2 Dual SIM TD-LTE 16GB (Samsung G160)

Osnovno

Datum izlaska

2016-09-01

Brend

Samsung

Model

SM-G1600 Galaxy Folder 2 Dual SIM TD-LTE 16GB

Najavljen

2016 Sep 8

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kodna oznaka

Samsung G160

OEM ID

G1600ZDACHC

Kategorija

Smartphone

Kućište

Masa

160 g

Širina

60.2 mm

Visina

122 mm

Debljina

15.4 mm

Zapremina kućišta

113.1 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

3.8 inča

Rezolucija

480x800

Gustina

245 ppi

Rezolucija

480x800

Širina ekrana

49.7 mm

Visina ekrana

82.83 mm

Horizontal Full Bezel Width

10.5 mm

Površina ekrana

4116.9 square millimeter

Display Area Utilization

56.1%

Pixel Size

0.10354 mm/pixel

Gustina piksela

245 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Da

Display Light Reflection Mode

Da

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

Qualcomm Adreno 308

Dedicated Graphics Memory

0.125 MiB

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-425-msm8917

Takt procesora

1400 MHz

Procesor

Qualcomm Snapdragon 425 MSM8917, 2016, 64 bit, quad-core, 512 Kbyte L2, 28 nm, Qualcomm Adreno 308 GPU

Tip RAM memorije

mobile (LP) DDR3 SDRAM

RAM

2048 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

eMMC 5.1

Interna memorija

15259 MiB non-volatile

Memorija

RAM

2 GB

Interna

16 GB

Baterija

Kapacitet

1950 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1950 mAh cell

Kapacitet baterije

1950 mAh battery

Vreme pripravnosti

318 hours

Standby Current

6 mA

Market Countries

China , HK

Market Regions

Asia , Southeast Asia

Mobile Operator

China Telecom Corporation Limited

Data Integrity

Preliminary

Added

2016-07-04 14:15

Softver

Platforma

Google Android

Operativni sistem

Google Android 6.0.1 (Marshmallow)

Softverske mogućnosti

Voice Command , Navigation software

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , CDMA 800MHz (BC0, 850) , TD-SCDMA 2000 MHz (B34) , TD-SCDMA 1900 MHz (B39) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , LTE 2600 MHz (Band 7) , LTE 900 MHz (Band 8) , TD-LTE 2600 MHz (Band 38) , TD-LTE 1900 MHz (Band 39) , TD-LTE 2300 MHz (Band XL) , TD-LTE 2500 MHz (Band XLI) bands

Supported Cellular Data Links

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 , TD-SCDMA , TD-HSDPA , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) , LTE 150 Mbps / 50 Mbps (Cat. 4) data links

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE)

Cellular Controller

Qualcomm MSM8917

Dual Cellular Network Operation

Dual standby

Sec. Supported Cellular Networks:

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2)

Sec. Supported Cellular Data Links:

GPRS (Class unspecified) , EDGE (Class unspecified)

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Qualcomm MSM8917

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Tastatura

Built-in numeric

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

19

Directional Pad

Four-way (with action button)-way

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 4.2

Bluetooth profiles

A2DP , AVRCP , DIP , HFP , HID , HSP , MAP , OPP , PAN , PBA

Wi‑Fi

IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Supported BeiDou system (BDS)

B1I BeiDou receiver

Navigation Controller

Qualcomm MSM8917 iZat

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

3264x2448 pixel

Number of effective pixels

8.0 MP camera

Aperture (W)

f/1.90

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

1920x1080 pixel

Recordable Video Formats

3GP , 3G2 , MPEG4

Flash

single LED

Camera Extra Functions

Macro mode , Panorama Photo , Face detection

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

2576x1932 pixel

Secondary Camera Number of pixels

5.0 MP sec. cam

Secondary Aperture (W)

f/1.90

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1920x1080 pixel

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Additional sensors

Hall sensor , Light intensity sensor , Proximity sensor

Zaštita od prašine

Da

Zaštita od vode

Da
