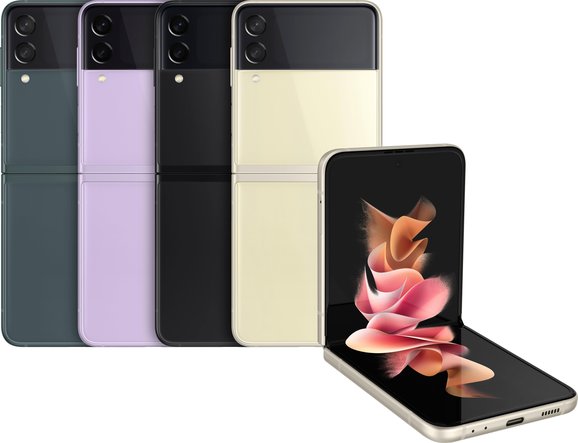

Samsung SM-F711U1 Galaxy Z Flip 3 5G UW TD-LTE US 128GB (Samsung Bloom 2)

Osnovno

Datum izlaska

2021-08-27

Brend

Samsung

Model

SM-F711U1 Galaxy Z Flip 3 5G UW TD-LTE US 128GB

Najavljen

2021 Aug 11

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kodna oznaka

Samsung Bloom 2

OEM ID

F711UZEBXAA

Dodatna oprema

Haptic touch feedback , Foldable screen

Kategorija

Smartphone

Kućište

Masa

183 g

Širina

72.2 mm

Visina

166 mm

Debljina

6.9 mm

Zapremina kućišta

82.7 ccm

Ekran

Tip

AM-OLED display

Dijagonala

6.7 inča

Rezolucija

1080x2640

Gustina

425 ppi

Display Hole

1-hole

Rezolucija

1080x2640

Širina ekrana

64.48 mm

Visina ekrana

157.62 mm

Horizontal Full Bezel Width

7.72 mm

Površina ekrana

10163.6 square millimeter

Display Area Utilization

84.8%

Pixel Size

0.0597 mm/pixel

Gustina piksela

425 PPI

Tip ekrana

Color AM-OLED display

Display Subtype

Dynamic AM-OLED

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

8 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Display Refresh Rate

120 Hz

Zaštita ekrana

Ne

Display Module

Samsung

Secondary Display Diagonal:

48.2 mm

Secondary Display Resolution

512x260

Secondary Number of pixels:

133120 pixels

Secondary Horizontal Display Size:

42.98 mm

Secondary Horizontal Display Size :

1.69 inch

Secondary Vertical Display Size:

21.82 mm

Secondary Display Area:

937.9 square millimeter

Secondary Display Pixel Size:

0.08394 mm/pixel

Secondary Display Pixel Density (dot pitch):

303 PPI

Secondary Display Type:

Color AM-OLED 2nd display

Secondary Display Subtype:

Super AM-OLED

Secondary Display Color Depth:

24 bit/pixel

Secondary Number of Display Colors/Scales:

16.8M

Secondary Display Dyn. Range Depth:

8 bit/pixel

Secondary Display Illumination:

Self-illuminating

Secondary Display Light Reflection Mode:

Da

Secondary Display Subpixel Scheme:

Da

Scratch Resistant Sec. Screen:

Da

Secondary Display Module

Samsung

Graphical Controller

Qualcomm Adreno 660

GPU Clock:

840 MHz

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-888-5g-sm8350

Takt procesora

2842 MHz

Procesor

Qualcomm Snapdragon 888 5G SM8350 (Lahaina), 2021, 64 bit, octa-core, 5 nm, Qualcomm Adreno 660 GPU

Tip RAM memorije

LPDDR5 SDRAM

RAM

8192 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

UFS 3.1

Interna memorija

122070 MiB non-volatile

Secondary Non-volatile Memory Type

Flash EEPROM

Memorija

RAM

8 GB

Interna

128 GB

Baterija

Kapacitet

3300 mAh

Softver

Platforma

Google Android

Operativni sistem

Google Android 11 (R)

Softverske mogućnosti

Voice Command , Business card recognition , Navigation software , Augmented Reality (AR) , Virtual Reality (VR) support , Intelligent personal assistant , Voice Recognition , Face Recognition

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

32 bit quantization

Microphone(s)

stereo

D/A Converter Nominal Resolution

32 bit quantization

D/A Holding Frequency

384000 Hz

Loudspeaker(s):

stereo

Audio Output:

USB Type-C

SIM

e-SIM (embedded) , Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

128-chord melody

Hearing Aid Compatibility (HAC)

M3 , T3

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE) , Video over LTE (ViLTE)

Cellular Controller

Qualcomm Snapdragon X60

SAR (head)

1.050 W/kg

SAR (body)

1.080 W/kg

SAR (hotspot)

1.210 W/kg

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Proširenja

Ne

USB

USB 2.0

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB On-The-Go 2.0 , USB Power Delivery , USB Power Delivery 2.0

USB Connector

USB Type-C reversible

Max. Charging Power

15.0 W charging

Bluetooth

Bluetooth 5.1

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , DIP , GAVDP , HFP , HID , HSP , MAP , OPP , PAN , PBA

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac , IEEE 802.11ax (Wi-Fi 6)

Wireless Services

DLNA , Miracast , Wi-Fi Direct , Wi-Fi Tethering , Wi-Fi Calling (VoWiFi)

NFC

NFC A , NFC B

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS , QZSS

Supported GLONASS protocol(s)

L1OF

Supported Galileo service(s)

E1

Navigation Controller

Qualcomm SM8350

Kamere

Camera Placement

Rear

Senzor kamere

BSI CMOS

Image Sensor Format

1/2.55

Image Sensor Pixel Size

1.40 micrometer

Camera Resolution

4000x3000 pixel

Number of effective pixels

12.0 MP camera

Aperture (W)

f/1.80

Zoom

1.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Min. Equiv. Focal Length

27 mm

Recordable Image Formats

JPG

Video snimanje

3840x2160 pixel

Recordable Video Formats

HEVC , MPEG4

Flash

single LED

Camera Extra Functions

Video Stabilizer (EIS) , Optical Image Stabilization (OIS) , Pixel unification , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Refocus , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. Camera Image Sensor

BSI CMOS

Aux. Cam. Image Sensor Pixel Size

1.12 micrometer

Aux. Camera Number of Pixels

12.0 MP aux. cam

Aux. Camera Aperture (W)

f/2.20

Aux. Camera Extra Functions

Video Stabilizer (OIS) , HDR photo , HDR video , Burst mode , Touch focus , Panorama Photo , Intelligent scene detection

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

BSI CMOS

Secondary Image Sensor Pixel Size

1.22 micrometer

Prednja kamera

3648x2736 pixel

Secondary Camera Number of pixels

10.0 MP sec. cam

Secondary Aperture (W)

f/2.40

Secondary Camera Focus

Phase-Detection Autofocus (PD AF)

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1920x1080 pixel

Secondary Recordable Video Formats

3GP , 3G2 , HEVC

Secondary Camera Extra Functions

HDR photo , HDR video , Slow motion video , Burst mode , Touch focus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

3D (3-axis) compass
