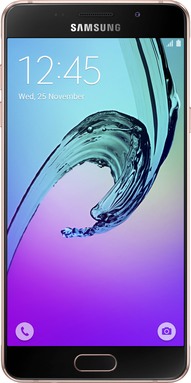

Samsung SM-A5100 Galaxy A5 2016 Duos TD-LTE CN

Osnovno

Datum izlaska

2016-01-11

Brend

Samsung

Model

SM-A5100 Galaxy A5 2016 Duos TD-LTE CN

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

155 g

Širina

71 mm

Visina

144.8 mm

Debljina

7.3 mm

Zapremina kućišta

75 ccm

Ekran

Tip

AM-OLED display

Dijagonala

5.2 inča

Rezolucija

1080x1920

Gustina

423 ppi

Rezolucija

1080x1920

Širina ekrana

64.81 mm

Visina ekrana

115.22 mm

Horizontal Full Bezel Width

6.19 mm

Površina ekrana

7467.8 square millimeter

Display Area Utilization

72.6%

Pixel Size

0.06001 mm/pixel

Gustina piksela

423 PPI

Tip ekrana

Color AM-OLED display

Display Subtype

Super AM-OLED

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

8 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Subpixel Scheme

RGBG PenTile Matrix (2 subpixels)

Zaštita ekrana

Corning Gorilla Glass 4

Graphical Controller

Qualcomm Adreno 405

Dedicated Graphics Memory

0.25 MiB

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-616-msm8939v2

Takt procesora

1500 MHz

Procesor

Qualcomm Snapdragon 616 MSM8939v2, 2015, 64 bit, octa-core, 28 nm, Qualcomm Adreno 405 GPU

Tip RAM memorije

mobile (LP) DDR3 SDRAM

RAM

2048 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

eMMC 4.5

Interna memorija

15259 MiB non-volatile

Memorija

RAM

2 GB

Interna

16 GB

Baterija

Kapacitet

2900 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

2900 mAh cell

Kapacitet baterije

2900 mAh battery

Market Countries

China

Market Regions

Asia

Mobile Operator

China Telecom Corporation Limited

Data Integrity

Preliminary

Added

2015-12-14 13:32

Softver

Platforma

Google Android

Operativni sistem

Google Android 5.1.1 (Lollipop)

Zvuk

Audio Channel(s)

stereo

Microphone(s)

stereo

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , CDMA 800MHz (BC0, 850) , TD-SCDMA 2000 MHz (B34) , TD-SCDMA 1900 MHz (B39) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , LTE 2600 MHz (Band 7) , TD-LTE 2600 MHz (Band 38) , TD-LTE 1900 MHz (Band 39) , TD-LTE 2300 MHz (Band XL) , TD-LTE 2500 MHz (Band XLI) bands

Supported Cellular Data Links

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , HSPA+ 42.2 Mbps (Cat. 20) , cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 , CDMA2000 1xEV-DO Revision A , TD-SCDMA , TD-HSDPA , LTE (Cat. unspecified) , LTE 300 Mbps / 50 Mbps (Cat. 6) data links

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC

Cellular Controller

Qualcomm MSM8939v2

Dual Cellular Network Operation

Dual standby

Sec. Supported Cellular Networks:

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2)

Sec. Supported Cellular Data Links:

GPRS (Class unspecified) , EDGE (Class unspecified)

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Qualcomm MSM8939v2

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging , USB fast charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 4.1

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

Wireless Services

DLNA , Wi-Fi Tethering

NFC

Da

FM Radio Receiver

FM radio (88-108 MHz) with RDS

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Supported BeiDou system (BDS)

B1I BeiDou receiver

Navigation Controller

Qualcomm MSM8939v2 IZat

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

4128x3096 pixel

Number of effective pixels

12.8 MP camera

Aperture (W)

f/1.90

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

1920x1080 pixel

Recordable Video Formats

3GP , 3G2 , MPEG4

Flash

single LED

Camera Extra Functions

Optical Image Stabilization (OIS) , Touch focus , Macro mode , Panorama Photo , Face detection

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

2576x1932 pixel

Secondary Camera Number of pixels

5.0 MP sec. cam

Secondary Aperture (W)

f/1.90

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1920x1080 pixel

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Additional sensors

Fingerprint sensor , Hall sensor , Light intensity sensor , Proximity sensor

Zaštita od prašine

Da

Zaštita od vode

Da
