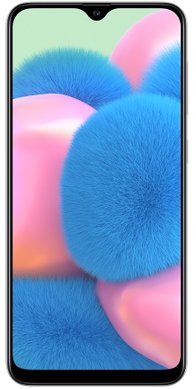

Samsung SM-A307FN/DS Galaxy A30s 2019 Dual SIM TD-LTE EMEA IN 128GB (Samsung A307)

Osnovno

Datum izlaska

2019-12-28

Brend

Samsung

Model

SM-A307FN/DS Galaxy A30s 2019 Dual SIM TD-LTE EMEA IN 128GB

Najavljen

2019 Dec 27

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kodna oznaka

Samsung A307

OEM ID

A307FZWWPAK

Dodatna oprema

Haptic touch feedback

Kategorija

Smartphone

Kućište

Masa

169 g

Širina

74.7 mm

Visina

158.5 mm

Debljina

7.8 mm

Zapremina kućišta

92.4 ccm

Ekran

Tip

AM-OLED display

Dijagonala

6.38 inča

Rezolucija

720x1560

Gustina

269 ppi

Otvor na ekranu

1-notch

Rezolucija

720x1560

Širina ekrana

67.89 mm

Visina ekrana

147.09 mm

Horizontal Full Bezel Width

6.81 mm

Površina ekrana

9985.5 square millimeter

Display Area Utilization

84.3%

Pixel Size

0.09429 mm/pixel

Gustina piksela

269 PPI

Tip ekrana

Color AM-OLED display

Display Subtype

Super AM-OLED

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

8 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

RGBG PenTile Matrix (2 subpixels)

Zaštita ekrana

Da

Display Module

Samsung

Graphical Controller

ARM Mali-G71MP2

A/V Out

Ne

Platforma

Sistem

Android

Čip

samsung-exynos-7-octa-7904

Takt procesora

1800 MHz

Procesor

Samsung Exynos 7 Octa 7904, 2019, 64 bit, octa-core, 14 nm, ARM Mali-G71 GPU

Tip RAM memorije

LPDDR4x SDRAM

RAM

4096 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

eMMC 5.1

Interna memorija

122070 MiB non-volatile

Memorija

RAM

4 GB

Interna

128 GB

Baterija

Kapacitet

4000 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

4000 mAh cell

Kapacitet baterije

4000 mAh battery

Estimated Battery Life

14.0 hours

Estimated Average Current

286 mA

Talk Time:

32.0 hours

Current During Talk

125 mA

Market Countries

Bahrain , Belarus , Belgium , Bulgaria , Egypt , Germany , Hungary , India , Kenya , Luxembourg , Moldova , Oman , Pakistan , Poland , Qatar , Romania , Russia , Saudi Arabia , South Africa , Emirates (UAE) , UK , Ukraine

Market Regions

Africa , Asia , Eastern Europe , Europe , Middle East , Western Europe

Data Integrity

Final

Added

2019-12-31 11:47

Softver

Platforma

Google Android

Operativni sistem

Google Android 9.0 (Pie)

Softverske mogućnosti

Voice Command , Navigation software , Face Recognition

Zvuk

Audio Channel(s)

stereo

Microphone(s)

stereo

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , LTE 850 MHz (Band 5) , LTE 2600 MHz (Band 7) , LTE 900 MHz (Band 8) , LTE 800 MHz (Band 20) , TD-LTE 2600 MHz (Band 38) , TD-LTE 2300 MHz (Band XL) , TD-LTE 2500 MHz (Band XLI) bands

Supported Cellular Data Links

GPRS (Class unspecified) , GPRS Multi-slot Class 33 , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , DC-HSDPA 42.2 Mbps (Cat. 24) , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) , LTE 150 Mbps / 50 Mbps (Cat. 4) , LTE 300 Mbps / 50 Mbps (Cat. 6) data links

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE)

Cellular Controller

Samsung Exynos 7904 ModAP

SAR (head)

1.380 W/kg

Dual Cellular Network Operation

Dual standby

Sec. Supported Cellular Networks:

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , LTE 850 MHz (Band 5) , LTE 2600 MHz (Band 7) , LTE 900 MHz (Band 8) , LTE 800 MHz (Band 20) , TD-LTE 2600 MHz (Band 38) , TD-LTE 2300 MHz (Band XL) , TD-LTE 2500 MHz (Band XLI)

Sec. Supported Cellular Data Links:

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , DC-HSDPA 42.2 Mbps (Cat. 24) , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) , LTE 150 Mbps / 50 Mbps (Cat. 4) , LTE 300 Mbps / 50 Mbps (Cat. 6)

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Samsung Exynos 7904 ModAP

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB Power Delivery

USB Connector

USB Type-C reversible

Max. Charging Power

15.0 W charging

Bluetooth

Bluetooth 5.0

Bluetooth profiles

A2DP , A2DP with aptX codec , AVRCP , DIP , HCRP , HFP , HID , HSP , MAP , OPP , PAN , PBA

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering

NFC

NFC A , NFC B

FM Radio Receiver

FM radio (88-108 MHz) with RDS

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Supported Galileo service(s)

E1

Supported BeiDou system (BDS)

B1I BeiDou receiver

Navigation Controller

Samsung Exynos 7904 ModAP

Kamere

Camera Placement

Rear

Senzor kamere

BSI CMOS

Camera Resolution

5760x4320 pixel

Number of effective pixels

24.9 MP camera

Aperture (W)

f/1.70

Zoom

1.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Min. Equiv. Focal Length

27 mm

Recordable Image Formats

JPG

Video snimanje

1920x1080 pixel

Recordable Video Formats

MPEG4

Flash

single LED

Camera Extra Functions

HDR photo , Red-eye effect reduction , Slow motion video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch

Aux. Camera Image Sensor

CMOS

Aux. Cam. Image Sensor Format

1/4.00

Aux. Cam. Image Sensor Pixel Size

1.12 micrometer

Aux. Camera Number of Pixels

8.0 MP aux. cam

Aux. Camera Aperture (W)

f/2.20

Aux. Camera Extra Functions

HDR photo , HDR video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection

Aux. 2 Camera Image Sensor

CMOS

Aux. 2 Camera Number of Pixels

4.9 MP aux. 2 cam

Aux. 2 Camera Aperture (W)

f/2.20

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

BSI CMOS

Secondary Image Sensor Format

1/3.10

Secondary Image Sensor Pixel Size

1.00 micrometer

Prednja kamera

4608x3456 pixel

Secondary Camera Number of pixels

15.9 MP sec. cam

Secondary Aperture (W)

f/2.00

Secondary Min. Equiv. Focal Length

26 mm

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1920x1080 pixel

Secondary Recordable Video Formats

3GP

Secondary Camera Extra Functions

HDR photo , HDR video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video)

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Built-in gyroscope

Da

Additional sensors

In-screen fingerprint sensor , Light intensity sensor , Proximity sensor

Zaštita od prašine

Da

Zaštita od vode

Da
