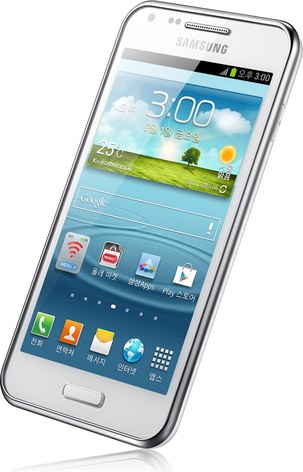

Samsung SHV-E170L Galaxy R Style (Samsung Jaguar)

Osnovno

Datum izlaska

2012-07-01

Brend

Samsung

Model

SHV-E170L Galaxy R Style

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kodna oznaka

Samsung Jaguar

Kategorija

Smartphone

Kućište

Masa

127 g

Širina

64.5 mm

Visina

128 mm

Debljina

9.79 mm

Zapremina kućišta

80.8 ccm

Ekran

Tip

AM-OLED display

Dijagonala

4.29 inča

Rezolucija

540x960

Gustina

257 ppi

Rezolucija

540x960

Širina ekrana

53.44 mm

Visina ekrana

95 mm

Horizontal Full Bezel Width

11.06 mm

Površina ekrana

5076.7 square millimeter

Display Area Utilization

61.5%

Pixel Size

0.09896 mm/pixel

Gustina piksela

257 PPI

Tip ekrana

Color AM-OLED display

Display Subtype

Super AM-OLED

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Self-illuminating

Display Subpixel Scheme

RGBG PenTile Matrix (2 subpixels)

Zaštita ekrana

Corning Gorilla Glass

Graphical Controller

Qualcomm Adreno 225

Dedicated Graphics Memory

0.5 MiB

A/V Out

MHL (Unspecified)

A/V Out Max. Resolution

Da

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-s4-msm8960

Takt procesora

1512 MHz

Procesor

Qualcomm Snapdragon S4 MSM8960, 2012, 32 bit, dual-core, 16 Kbyte I-Cache, 16 Kbyte D-Cache, 1024 Kbyte L2, 28 nm, Qualcomm Adreno 225 GPU

Tip RAM memorije

mobile (LP) DDR2 SDRAM

RAM

1024 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

15259 MiB non-volatile

Memorija

RAM

1 GB

Interna

16 GB

Baterija

Kapacitet

2000 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

2000 mAh cell

Kapacitet baterije

2000 mAh battery

Market Countries

South Korea

Market Regions

Asia

Mobile Operator

LG Uplus Corporation

Related Page:

URL

Data Integrity

Preliminary

Added

2012-07-27 20:38

Softver

Platforma

Google Android

Operativni sistem

Google Android 4.0.4 (Ice Cream Sandwich)

Operating System Kernel Version

3.0.15

Zvuk

Audio Channel(s)

stereo

Microphone(s)

stereo

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , CDMA 1800MHz (BC4) , LTE 850 MHz (Band 5) bands

Supported Cellular Data Links

GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 12 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 , CDMA2000 1xEV-DO Revision A , CDMA2000 1xEV-DO Revision B , LTE (Cat. unspecified) data links

SIM

Da

Cellular Antenna

Internal antenna

Call Alert Sound

72-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC

Cellular Controller

Qualcomm MSM8960

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 4.0

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

Wireless Services

DLNA , Wi-Fi Tethering

NFC

Da

FM Radio Receiver

Ne

Digital Media Broadcast

T-DMB receiver

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Navigation Controller

Qualcomm MSM8960 gpsOne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2592x1944 pixel

Number of effective pixels

5.0 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

1920x1080 pixel

Recordable Video Formats

3GP , 3G2 , MPEG4

Flash

single LED

Camera Extra Functions

Macro mode

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

1280x1024 pixel

Secondary Camera Number of pixels

1.3 MP sec. cam

Secondary Recordable Image Formats

JPG

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Zaštita od prašine

Da

Zaštita od vode

Da
