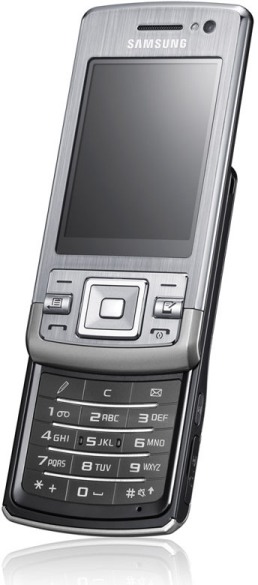

Samsung SGH-L870

Osnovno

Datum izlaska

2008-08-01

Brend

Samsung

Model

SGH-L870

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

120 g

Širina

50.5 mm

Visina

103.5 mm

Debljina

13.5 mm

Zapremina kućišta

70.6 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.36 inča

Rezolucija

240x320

Gustina

169 ppi

Rezolucija

240x320

Širina ekrana

36 mm

Visina ekrana

48 mm

Horizontal Full Bezel Width

14.5 mm

Površina ekrana

1728 square millimeter

Display Area Utilization

33.1%

Pixel Size

0.15 mm/pixel

Gustina piksela

169 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

18 bit/pixel

Number of Display Scales

262144

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Symbian

Čip

stmicroelectronics-nomadik-stn8815p14

Takt procesora

264 MHz

Procesor

STMicroelectronics Nemadik STn8815P14, 2008, 32 bit, single-core, 16 Kbyte I-Cache, 16 Kbyte D-Cache, 128 Kbyte L2

Tip RAM memorije

SDRAM

RAM

128 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

256 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1000 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1000 mAh cell

Kapacitet baterije

1000 mAh battery

Related Page:

URL

Data Integrity

Final

Added

2008-04-16 18:15

Softver

Platforma

Symbian

Operativni sistem

Symbian OS 9.3 Series 60 3rd Edition

Operating System Kernel Version

9.3

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

Proprietary

Mrežni opsezi

GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSDPA (Cat. unspecified) , HSDPA 3.6 Mbps (Cat. 6) data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Tastatura

Slide-out numeric

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

15

Directional Pad

Four-way (with action button)-way

Proširenja

TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 2.0 + Enhanced Data Rate

Bluetooth profiles

A2DP

Wi‑Fi

Ne

FM Radio Receiver

FM radio (88-108 MHz) with RDS

Supported GPS protocol(s)

Ne

Complementary Satellite Services

Assisted GPS

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2048x1536 pixel

Number of effective pixels

3.1 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

352x288 pixel

Recordable Video Formats

3GP , MPEG4

Flash

Ne

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

640x480 pixel

Secondary Camera Number of pixels

0.3 MP sec. cam

Secondary Recordable Image Formats

JPG

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
