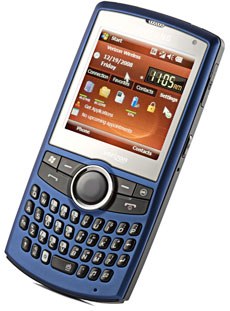

Samsung SGH-i777 Saga

Osnovno

Datum izlaska

2008-12-01

Brend

Samsung

Model

SGH-i777 Saga

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

130 g

Širina

62 mm

Visina

124 mm

Debljina

13.5 mm

Zapremina kućišta

103.8 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.55 inča

Rezolucija

320x320

Gustina

177 ppi

Rezolucija

320x320

Širina ekrana

45.82 mm

Visina ekrana

45.82 mm

Horizontal Full Bezel Width

16.18 mm

Površina ekrana

2099.5 square millimeter

Display Area Utilization

27.3%

Pixel Size

0.14319 mm/pixel

Gustina piksela

177 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

18 bit/pixel

Number of Display Scales

262144

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Windows Mobile

Čip

qualcomm-msm7500

Takt procesora

400 MHz

Procesor

Qualcomm MSM7500, 2006, 32 bit, single-core, 16 Kbyte I-Cache, 16 Kbyte D-Cache, 90 nm

Tip RAM memorije

SDRAM

RAM

128 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

256 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1300 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1300 mAh cell

Kapacitet baterije

1300 mAh battery

Related Page:

URL

Data Integrity

Final

Added

2009-01-09 18:01

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Mobile 6.1 Professional

Operating System Kernel Version

5.2

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

44100 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

Proprietary

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , CDMA 800MHz (BC0, 850) , CDMA 1900MHz (BC1/BC14, PCS) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 , CDMA2000 1xEV-DO Revision A data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

72-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

Qualcomm MSM7500 (QDSP4000, QDSP5000)

SAR (head)

0.687 W/kg

SAR (body)

1.010 W/kg

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Touch Surface Type

Resistive touch sensing surface

Tastatura

Built-in QWERTY

Number of keys

43

Proširenja

Secure Digital Input/Output interface , TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging

USB Connector

Proprietary

Bluetooth

Bluetooth 2.0

Bluetooth profiles

A2DP

Wi‑Fi

IEEE 802.11b , IEEE 802.11g

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS

Navigation Controller

Qualcomm MSM7500 gpsOne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

1600x1200 pixel

Number of effective pixels

1.9 MP camera

Zoom

1.0 x optical zoom

Focus

Ne

Recordable Image Formats

BMP , JPG

Video snimanje

320x240 pixel

Recordable Video Formats

3GP , MPEG4

Flash

Ne

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
