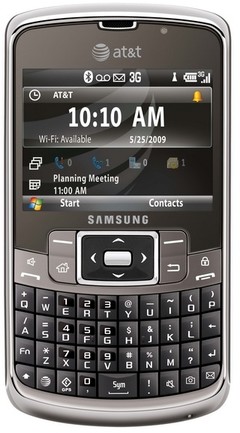

Samsung SGH-i637 Jack

Osnovno

Datum izlaska

2009-05-19

Brend

Samsung

Model

SGH-i637 Jack

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

102 g

Širina

59.7 mm

Visina

111.9 mm

Debljina

12.6 mm

Zapremina kućišta

84.2 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.4 inča

Rezolucija

320x240

Gustina

167 ppi

Rezolucija

320x240

Širina ekrana

48.8 mm

Visina ekrana

36.6 mm

Horizontal Full Bezel Width

10.9 mm

Površina ekrana

1786.1 square millimeter

Display Area Utilization

26.7%

Pixel Size

0.1525 mm/pixel

Gustina piksela

167 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

16 bit/pixel

Number of Display Scales

65536

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

Qualcomm Adreno 130

A/V Out

Ne

Platforma

Sistem

Windows Mobile

Čip

qualcomm-msm7225

Takt procesora

528 MHz

Procesor

Qualcomm MSM7225, 2007, 32 bit, single-core, 65 nm, Qualcomm Adreno 200 enhanced GPU

Tip RAM memorije

SDRAM

RAM

256 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

256 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1480 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1480 mAh cell

Kapacitet baterije

1480 mAh battery

Data Integrity

Preliminary

Added

2009-05-15 18:27

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Mobile 6.1 Standard

Operating System Kernel Version

5.2

Softverske mogućnosti

Business card recognition

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

44100 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

stereo

Audio Output:

Proprietary

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , EDGE Multi-slot Class 10 , UMTS 384 kbps (W-CDMA) , HSDPA (Cat. unspecified) , HSDPA 3.6 Mbps (Cat. 6) data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

Qualcomm MSM7225

SAR (head)

0.906 W/kg

SAR (body)

0.759 W/kg

Sec. Supported Cellular Networks:

Ne

Upravljanje

Tastatura

Built-in QWERTY

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

45

Directional Pad

Four-way (with action button)-way

Proširenja

Secure Digital Input/Output interface , TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Mini-B (mini-USB)

Bluetooth

Bluetooth 2.0 + Enhanced Data Rate

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11g

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS

Navigation Controller

Qualcomm MSM7225 gpsOne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2048x1536 pixel

Number of effective pixels

3.1 MP camera

Zoom

1.0 x optical zoom

Focus

Ne

Recordable Image Formats

JPG

Video snimanje

320x240 pixel

Recordable Video Formats

3GP , 3G2 , MJPG

Flash

Ne

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
