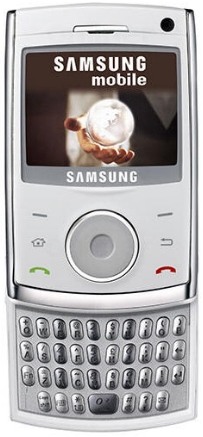

Samsung SGH-i620

Osnovno

Datum izlaska

2007-10-16

Brend

Samsung

Model

SGH-i620

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

126.2 g

Širina

59.3 mm

Visina

94.9 mm

Debljina

16.3 mm

Zapremina kućišta

91.7 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.2 inča

Rezolucija

320x240

Gustina

181 ppi

Rezolucija

320x240

Širina ekrana

44.8 mm

Visina ekrana

33.6 mm

Horizontal Full Bezel Width

14.5 mm

Površina ekrana

1505.3 square millimeter

Display Area Utilization

26.7%

Pixel Size

0.14 mm/pixel

Gustina piksela

181 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

16 bit/pixel

Number of Display Scales

65536

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Windows Mobile

Čip

intel-xscale-pxa270

Takt procesora

416 MHz

Procesor

Intel XScale PXA270 (Bulverde), 2004, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache

Tip RAM memorije

SDRAM

RAM

64 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

128 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1200 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1200 mAh cell

Kapacitet baterije

1200 mAh battery

Estimated Battery Life

13.0 hours

Estimated Average Current

92 mA

Market Countries

Germany

Market Regions

Western Europe

Related Page:

URL

Data Integrity

Preliminary

Added

2007-08-01 13:31

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Mobile 6 Standard (Crossbow)

Operating System Kernel Version

5.2

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

44100 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

stereo

Audio Output:

Proprietary

Mrežni opsezi

GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSDPA (Cat. unspecified) data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Complementary Phone Services

Voice transmission , Vibrating Alert , Speakerphone

SAR (head)

0.338 W/kg

Sec. Supported Cellular Networks:

Ne

Upravljanje

Tastatura

Slide-out QWERTY

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

37

Scroll Wheel

Optical trackpad

Proširenja

TransFlash , microSD

USB

USB 1.1

USB Services

USB charging

USB Connector

USB Series Mini-B (mini-USB)

Bluetooth

Bluetooth 2.0

Bluetooth profiles

A2DP

Wi‑Fi

Ne

FM Radio Receiver

Ne

Supported GPS protocol(s)

Ne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

1600x1200 pixel

Number of effective pixels

1.9 MP camera

Zoom

1.0 x optical zoom

Focus

Ne

Recordable Image Formats

BMP , JPG

Video snimanje

176x144 pixel

Recordable Video Formats

3GP , 3G2 , MJPG

Flash

single LED

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

640x480 pixel

Secondary Camera Number of pixels

0.3 MP sec. cam

Secondary Recordable Image Formats

JPG

Secondary Video Recording

320x240 pixel

Secondary Recordable Video Formats

3GP , MJPG

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
