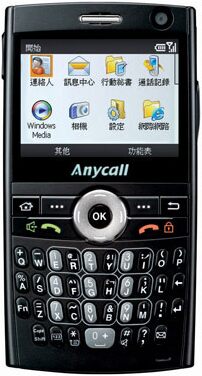

Samsung SGH-i608

Osnovno

Datum izlaska

2008-01-01

Brend

Samsung

Model

SGH-i608

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

105 g

Širina

59 mm

Visina

113 mm

Debljina

11.8 mm

Zapremina kućišta

78.7 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.32 inča

Rezolucija

320x240

Gustina

172 ppi

Rezolucija

320x240

Širina ekrana

47.2 mm

Visina ekrana

35.4 mm

Horizontal Full Bezel Width

11.8 mm

Površina ekrana

1670.9 square millimeter

Display Area Utilization

25.1%

Pixel Size

0.1475 mm/pixel

Gustina piksela

172 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

16 bit/pixel

Number of Display Scales

65536

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Windows Mobile

Čip

texas-instruments-omap-1710

Takt procesora

220 MHz

Procesor

Texas Instruments OMAP 1710, 2004, 32 bit, single-core, 32 Kbyte I-Cache, 16 Kbyte D-Cache

Tip RAM memorije

SDRAM

RAM

48 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

128 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1000 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1000 mAh cell

Kapacitet baterije

1000 mAh battery

Estimated Battery Life

12.0 hours

Estimated Average Current

83 mA

Market Countries

South Korea

Market Regions

Asia

Related Page:

URL

Data Integrity

Final

Added

2009-12-18 10:01

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Mobile 6 Standard (Crossbow)

Operating System Kernel Version

5.2

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

44100 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

stereo

Audio Output:

Proprietary

Mrežni opsezi

GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSDPA (Cat. unspecified) , HSDPA 1.8 Mbps (Cat. 4) data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

TI TMS320C55x

Sec. Supported Cellular Networks:

Ne

Upravljanje

Tastatura

Built-in QWERTY

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

43

Directional Pad

Four-way (with action button)-way

Proširenja

Secure Digital Input/Output interface , TransFlash , microSD

USB

USB 1.1

USB Services

USB charging

USB Connector

Proprietary

Bluetooth

Bluetooth 2.0

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11g

FM Radio Receiver

Ne

Supported GPS protocol(s)

Ne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

1280x1024 pixel

Number of effective pixels

1.3 MP camera

Zoom

1.0 x optical zoom

Focus

Ne

Recordable Image Formats

BMP , JPG

Video snimanje

176x144 pixel

Recordable Video Formats

3GP , 3G2 , MJPG

Flash

Ne

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

640x480 pixel

Secondary Camera Number of pixels

0.3 MP sec. cam

Secondary Recordable Image Formats

JPG

Secondary Video Recording

176x144 pixel

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
