Samsung

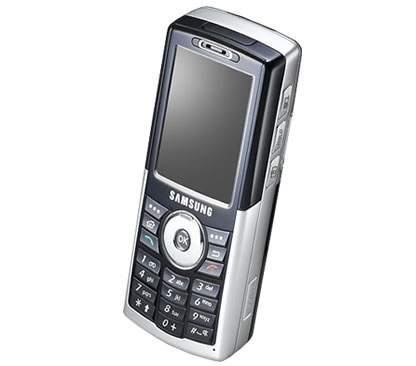

Samsung SGH-i300x (Samsung Odin)
Model iz 2006. godine, ekran od 1.97 inča, baterija od 1000 mAh.
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2006-04-01
- Brend
- Samsung
- Model
- SGH-i300x
- Dizajner hardvera
- Samsung Electronics
- Proizvođač
- Samsung Electronics
- Kodna oznaka
- Samsung Odin
- Kategorija
- Smartphone
Kućište
- Masa
- 121 g
- Širina
- 48 mm
- Visina
- 113 mm
- Debljina
- 20 mm
- Zapremina kućišta
- 108.5 ccm
Ekran
- Tip
- Color TN-TFT LCD display
- Dijagonala
- 1.97 inča
- Rezolucija
- 240x320
- Gustina
- 203 ppi
- Rezolucija
- 240x320
- Širina ekrana
- 30 mm
- Visina ekrana
- 40 mm
- Horizontal Full Bezel Width
- 18 mm
- Površina ekrana
- 1200 square millimeter
- Display Area Utilization
- 22.1%
- Pixel Size
- 0.125 mm/pixel
- Gustina piksela
- 203 PPI
- Tip ekrana
- Color TN-TFT LCD display
- Dubina boja
- 18 bit/pixel
- Number of Display Scales
- 262144
- Osvetljenje ekrana
- Da
- Display Light Reflection Mode
- transflective
- Display Subpixel Scheme
- RGB Matrix (3 subpixels)
- Zaštita ekrana
- Ne
- Graphical Controller
- N/A
- A/V Out
- Ne
Platforma
- Sistem
- Windows Mobile
- Čip
- intel-xscale-pxa272
- Takt procesora
- 416 MHz
- Procesor
- Intel XScale PXA272 (Bulverde), 2004, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache
- Tip RAM memorije
- SDRAM
- RAM
- 64 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 32 MiB non-volatile
- Hard Disk Capacity
- 3800 MB
Memorija
- RAM
- 1 GB
Baterija
- Kapacitet
- 1000 mAh
- Battery
- Lithium-ion
- Nominal Cell Capacity (1st cell)
- 1000 mAh cell
- Kapacitet baterije
- 1000 mAh battery
- Estimated Battery Life
- 12.0 hours
- Estimated Average Current
- 83 mA
- Related Page:
- URL
- Data Integrity
- Final
- Added
- 2006-01-16 10:09
Softver
- Platforma
- Windows (mobile-class)
- Operativni sistem
- Microsoft Windows Mobile 2003 Second Edition for Smartphone (Magneto)
- Operating System Kernel Version
- 4.21.1088
Zvuk
- Audio Channel(s)
- stereo
- A/D Converter Nominal Resolution
- 16 bit quantization
- A/D Sampling Frequency
- 44100 Hz
- Microphone(s)
- mono
- D/A Converter Nominal Resolution
- 16 bit quantization
- D/A Holding Frequency
- 44100 Hz
- Loudspeaker(s):
- stereo
- Audio Output:
- 2.5mm
- Mrežni opsezi
- GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) bands
- Supported Cellular Data Links
- CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 data links
- SIM
- Mini-SIM (2FF)
- Cellular Antenna
- Internal antenna
- Call Alert Sound
- 64-chord melody
- Complementary Phone Services
- Voice transmission , Voice speaker , Vibrating Alert
- SAR (head)
- 0.470 W/kg
- SAR (body)
- 0.660 W/kg
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Tastatura
- Built-in numeric
- Keyboard Backlight
- Aut. keyboard backlight (upon press of key)
- Number of keys
- 12
- Directional Pad
- Four-way (with action button)-way
- Proširenja
- Secure Digital Input/Output interface , TransFlash , microSD
- USB
- USB 2.0
- USB Connector
- Proprietary
- Bluetooth
- Bluetooth 1.2
- Bluetooth profiles
- A2DP
- Wi‑Fi
- Ne
- IR
- IrDA 1.2
- FM Radio Receiver
- Ne
- Supported GPS protocol(s)
- Ne
Kamere
- Camera Placement
- Rear
- Senzor kamere
- CMOS
- Camera Resolution
- 1280x1024 pixel
- Number of effective pixels
- 1.3 MP camera
- Zoom
- 1.0 x optical zoom
- Focus
- Ne
- Recordable Image Formats
- BMP , JPG
- Video snimanje
- 320x240 pixel
- Recordable Video Formats
- 3GP , MPEG4
- Flash
- single LED
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Sensor
- Ne
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in accelerometer
- Ne
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
