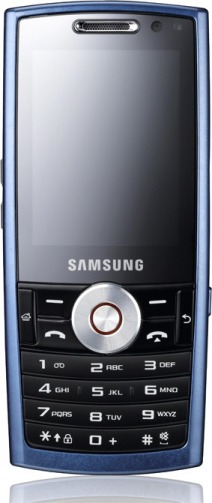

Samsung SGH-i200

Osnovno

Datum izlaska

2008-05-07

Brend

Samsung

Model

SGH-i200

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

101.4 g

Širina

50.8 mm

Visina

116.6 mm

Debljina

11.6 mm

Zapremina kućišta

68.7 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.28 inča

Rezolucija

240x320

Gustina

175 ppi

Rezolucija

240x320

Širina ekrana

34.8 mm

Visina ekrana

46.4 mm

Horizontal Full Bezel Width

16 mm

Površina ekrana

1614.7 square millimeter

Display Area Utilization

27.3%

Pixel Size

0.145 mm/pixel

Gustina piksela

175 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

18 bit/pixel

Number of Display Scales

262144

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Windows Mobile

Čip

stmicroelectronics-nomadik-stn8810

Takt procesora

264 MHz

Procesor

STMicroelectronics Nemadik STn8810, 2005, 32 bit, single-core, 32 Kbyte I-Cache, 16 Kbyte D-Cache

Tip RAM memorije

SDRAM

RAM

64 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

128 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1100 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1100 mAh cell

Kapacitet baterije

1100 mAh battery

Estimated Battery Life

15.0 hours

Estimated Average Current

73 mA

Market Regions

Southeast Asia

Related Page:

URL

Data Integrity

Preliminary

Added

2008-02-12 22:05

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Mobile 6.1 Standard

Operating System Kernel Version

5.2

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

44100 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

Proprietary

Mrežni opsezi

GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , EDGE Multi-slot Class 10 , UMTS 384 kbps (W-CDMA) , HSDPA (Cat. unspecified) , HSDPA 3.6 Mbps (Cat. 6) data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Complementary Phone Services

Voice transmission , Vibrating Alert , Speakerphone

SAR (head)

0.876 W/kg

Sec. Supported Cellular Networks:

Ne

Upravljanje

Tastatura

Built-in numeric

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

19

Directional Pad

Four-way (with action button)-way

Proširenja

TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging

USB Connector

Proprietary

Bluetooth

Bluetooth 2.0 + Enhanced Data Rate

Bluetooth profiles

A2DP

Wi‑Fi

Ne

FM Radio Receiver

Ne

Supported GPS protocol(s)

Ne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

1600x1200 pixel

Number of effective pixels

1.9 MP camera

Zoom

1.0 x optical zoom

Focus

Ne

Recordable Image Formats

BMP , JPG

Video snimanje

320x240 pixel

Recordable Video Formats

3GP , 3G2 , MJPG

Flash

Ne

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

352x288 pixel

Secondary Camera Number of pixels

0.1 MP sec. cam

Secondary Recordable Image Formats

JPG

Secondary Video Recording

176x144 pixel

Secondary Recordable Video Formats

3GP , MJPG

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
