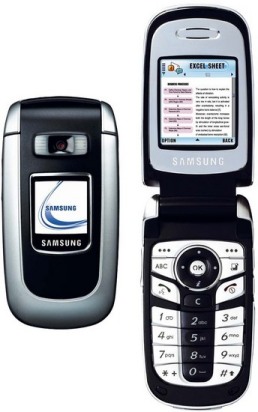

Samsung SGH-D730

Osnovno

Datum izlaska

2005-10-01

Brend

Samsung

Model

SGH-D730

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

97 g

Širina

47 mm

Visina

95 mm

Debljina

21 mm

Zapremina kućišta

93.8 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

1.83 inča

Rezolucija

176x208

Gustina

149 ppi

Rezolucija

176x208

Širina ekrana

30.04 mm

Visina ekrana

35.5 mm

Horizontal Full Bezel Width

16.96 mm

Površina ekrana

1066.2 square millimeter

Display Area Utilization

23.9%

Pixel Size

0.17066 mm/pixel

Gustina piksela

149 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

18 bit/pixel

Number of Display Scales

262144

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Secondary Display Diagonal:

29.8 mm

Secondary Display Resolution

96x96

Secondary Number of pixels:

9216 pixels

Secondary Horizontal Display Size:

21.07 mm

Secondary Horizontal Display Size :

0.83 inch

Secondary Vertical Display Size:

21.07 mm

Secondary Display Area:

444 square millimeter

Secondary Display Pixel Size:

0.2195 mm/pixel

Secondary Display Pixel Density (dot pitch):

116 PPI

Secondary Display Type:

Color TN-TFT LCD 2nd display

Secondary Display Color Depth:

16 bit/pixel

Secondary Number of Display Colors/Scales:

65536

Secondary Display Illumination:

Da

Secondary Display Light Reflection Mode:

transflective

Secondary Display Subpixel Scheme:

RGB Matrix (3 subpixels)

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Symbian

Čip

texas-instruments-omap-5910

Takt procesora

192 MHz

Procesor

Texas Instruments OMAP 5910, 2004, 32 bit, single-core, 16 Kbyte I-Cache, 8 Kbyte D-Cache, 130 nm

Tip RAM memorije

SDRAM

RAM

32 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

64 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

800 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

800 mAh cell

Kapacitet baterije

800 mAh battery

Estimated Battery Life

9.0 hours

Estimated Average Current

89 mA

Related Page:

URL

Data Integrity

Final

Added

2007-12-18 17:56

Softver

Platforma

Symbian

Operativni sistem

Symbian OS 7.0 Series 60 2nd Edition

Operating System Kernel Version

7.0s

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

Loudspeaker(s):

mono

Audio Output:

Proprietary

Mrežni opsezi

GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

TI TMS320C55x

Sec. Supported Cellular Networks:

Ne

Upravljanje

Tastatura

Built-in numeric

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

19

Directional Pad

Four-way (with action button)-way

Proširenja

MMCmicro

USB

USB 1.1

USB Connector

Proprietary

Bluetooth

Bluetooth 2.0

Wi‑Fi

Ne

FM Radio Receiver

Ne

Supported GPS protocol(s)

Ne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

1280x1024 pixel

Number of effective pixels

1.3 MP camera

Focus

Ne

Recordable Image Formats

JPG

Video snimanje

352x288 pixel

Recordable Video Formats

MPEG4

Flash

single LED

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
