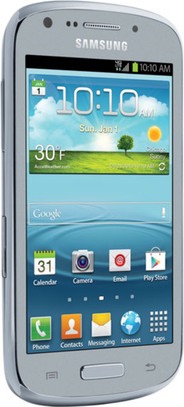

Samsung SCH-R830 Galaxy Axiom

Osnovno

Datum izlaska

2012-12-01

Brend

Samsung

Model

SCH-R830 Galaxy Axiom

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

135 g

Širina

63.7 mm

Visina

121.7 mm

Debljina

12 mm

Zapremina kućišta

93 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

3.98 inča

Rezolucija

480x800

Gustina

235 ppi

Rezolucija

480x800

Širina ekrana

51.96 mm

Visina ekrana

86.61 mm

Horizontal Full Bezel Width

11.74 mm

Površina ekrana

4500.4 square millimeter

Display Area Utilization

58.1%

Pixel Size

0.10826 mm/pixel

Gustina piksela

235 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Da

Display Light Reflection Mode

Da

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Corning Gorilla Glass

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-s4-msm8960-lite

Takt procesora

1200 MHz

Procesor

Qualcomm Snapdragon S4 MSM8960 Lite, 2012, 32 bit, dual-core, 16 Kbyte I-Cache, 16 Kbyte D-Cache, 512 Kbyte L2, 28 nm, Qualcomm Adreno 225 GPU

Tip RAM memorije

mobile (LP) DDR2 SDRAM

RAM

768 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

3814 MiB non-volatile

Memorija

RAM

1 GB

Interna

4 GB

Baterija

Kapacitet

2100 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

2100 mAh cell

Kapacitet baterije

2100 mAh battery

Market Countries

USA

Mobile Operator

United States Cellular Corporation

Data Integrity

Preliminary

Added

2012-11-17 16:45

Softver

Platforma

Google Android

Operativni sistem

Google Android 4.0.4 (Ice Cream Sandwich)

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

CDMA 800MHz (BC0, 850) , CDMA 1900MHz (BC1/BC14, PCS) , CDMA 1700/2100MHz (BC15, AWS) , LTE 1900 MHz (Band 2, PCS) , LTE 1700/2100 MHz (Band 4, AWS) , LTE 850 MHz (Band 5) , LTE 700 MHz (Band 12) bands

Supported Cellular Data Links

cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 , CDMA2000 1xEV-DO Revision A , LTE (Cat. unspecified) data links

Cellular Antenna

Internal antenna

Call Alert Sound

72-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

Qualcomm MSM8960

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 4.0

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

Wireless Services

DLNA , Wi-Fi Tethering

NFC

Da

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2592x1944 pixel

Number of effective pixels

5.0 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

1280x720 pixel

Recordable Video Formats

3GP , 3G2 , MPEG4

Flash

single LED

Camera Extra Functions

Macro mode

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

1280x1024 pixel

Secondary Camera Number of pixels

1.3 MP sec. cam

Secondary Recordable Image Formats

JPG

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Zaštita od prašine

Da

Zaštita od vode

Da
