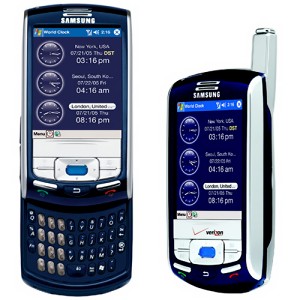

Samsung SCH-i830 / IP-830w
Model iz 2006. godine, ekran od 2.83 inča, baterija od 1000 mAh.
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2006-01-24
- Brend
- Samsung
- Model
- SCH-i830 / IP-830w
- Dizajner hardvera
- Samsung Electronics
- Proizvođač
- Samsung Electronics
- Dodatna oprema
- Passive stylus
- Kategorija
- Smartphone
Kućište
- Masa
- 183 g
- Širina
- 58 mm
- Visina
- 114 mm
- Debljina
- 25 mm
- Zapremina kućišta
- 165.3 ccm
Ekran
- Tip
- Color TN-TFT LCD display
- Dijagonala
- 2.83 inča
- Rezolucija
- 240x320
- Gustina
- 141 ppi
- Rezolucija
- 240x320
- Širina ekrana
- 43.2 mm
- Visina ekrana
- 57.6 mm
- Horizontal Full Bezel Width
- 14.8 mm
- Površina ekrana
- 2488.3 square millimeter
- Display Area Utilization
- 37.6%
- Pixel Size
- 0.18 mm/pixel
- Gustina piksela
- 141 PPI
- Tip ekrana
- Color TN-TFT LCD display
- Dubina boja
- 16 bit/pixel
- Number of Display Scales
- 65536
- Osvetljenje ekrana
- Da
- Display Light Reflection Mode
- transflective
- Display Subpixel Scheme
- RGB Matrix (3 subpixels)
- Zaštita ekrana
- Ne
- Graphical Controller
- N/A
- A/V Out
- Ne
Platforma
- Sistem
- Windows Mobile
- Čip
- intel-xscale-pxa270
- Takt procesora
- 520 MHz
- Procesor
- Intel XScale PXA270 (Bulverde), 2004, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache
- Tip RAM memorije
- SDRAM
- RAM
- 64 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 128 MiB non-volatile
Memorija
- RAM
- 1 GB
Baterija
- Kapacitet
- 1000 mAh
- Battery
- Lithium-ion
- Nominal Cell Capacity (1st cell)
- 1000 mAh cell
- Kapacitet baterije
- 1000 mAh battery
- Estimated Battery Life
- 7.0 hours
- Estimated Average Current
- 143 mA
- Data Integrity
- Final
- Added
- 2005-11-14 16:22
Softver
- Platforma
- Windows (mobile-class)
- Operativni sistem
- Microsoft Windows Mobile 2003 Second Edition for Pocket PC Phone Edition (Ozone Update)
- Operating System Kernel Version
- 4.21.1088
Zvuk
- Audio Channel(s)
- stereo
- Microphone(s)
- mono
- D/A Converter Nominal Resolution
- 16 bit quantization
- Loudspeaker(s):
- stereo
- Audio Output:
- 2.5mm
- Mrežni opsezi
- GSM 900MHz (B8) , GSM 1800MHz (B3) , CDMA 800MHz (BC0, 850) , CDMA 1900MHz (BC1/BC14, PCS) bands
- Supported Cellular Data Links
- GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 data links
- SIM
- Mini-SIM (2FF)
- Cellular Antenna
- Fixed external antenna
- Call Alert Sound
- 64-chord melody
- Complementary Phone Services
- Voice transmission , Vibrating Alert
- SAR (head)
- 1.170 W/kg
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Touchscreen Type
- Resistive touch sensing screen
- Touchscreen Simultaneous Touch Points
- Single-touch
- Tastatura
- Built-in QWERTY
- Number of keys
- 37
- Directional Pad
- Four-way (with action button)-way
- Proširenja
- MMC , SD , Secure Digital Input/Output interface
- USB
- USB 1.1
- USB Connector
- Proprietary
- Bluetooth
- Bluetooth 1.1
- Wi‑Fi
- IEEE 802.11b
- IR
- IrDA 1.2
- FM Radio Receiver
- Ne
- Supported GPS protocol(s)
- Ne
Kamere
- Senzor kamere
- Ne
- Focus
- Ne
- Flash
- single LED
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Sensor
- Ne
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in accelerometer
- Ne
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
