Samsung

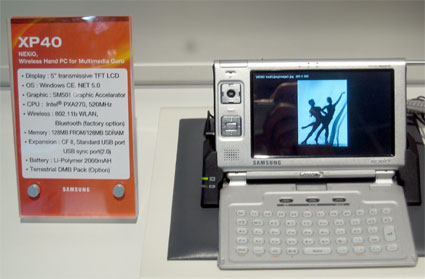

Samsung NEXiO XP40
Model iz 2005. godine, ekran od 5 inča, baterija od 2000 mAh.
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2005-08-01
- Brend
- Samsung
- Model
- NEXiO XP40
- Dizajner hardvera
- Samsung Electronics
- Proizvođač
- Samsung Electronics
- Kategorija
- Personal Digital Assistant (PDA)
Kućište
- Masa
- 240 g
- Širina
- 155 mm
- Visina
- 91 mm
- Debljina
- 13.1 mm
- Zapremina kućišta
- 184.8 ccm
Ekran
- Tip
- Color TN-TFT LCD display
- Dijagonala
- 5 inča
- Rezolucija
- 800x480
- Gustina
- 187 ppi
- Rezolucija
- 800x480
- Širina ekrana
- 108.9 mm
- Visina ekrana
- 65.34 mm
- Horizontal Full Bezel Width
- 46.1 mm
- Površina ekrana
- 7115.7 square millimeter
- Display Area Utilization
- 50.4%
- Pixel Size
- 0.13613 mm/pixel
- Gustina piksela
- 187 PPI
- Tip ekrana
- Color TN-TFT LCD display
- Dubina boja
- 16 bit/pixel
- Number of Display Scales
- 65536
- Osvetljenje ekrana
- Da
- Display Light Reflection Mode
- transflective
- Display Subpixel Scheme
- RGB Matrix (3 subpixels)
- Zaštita ekrana
- Ne
- Graphical Controller
- Silicon Motion SM501
- A/V Out
- Da
- A/V Out Max. Resolution
- 1024x768 (XGA)
Platforma
- Sistem
- Windows Mobile
- Čip
- intel-xscale-pxa270
- Takt procesora
- 520 MHz
- Procesor
- Intel XScale PXA270 (Bulverde), 2004, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache
- Tip RAM memorije
- SDRAM
- RAM
- 128 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 128 MiB non-volatile
Memorija
- RAM
- 1 GB
Baterija
- Kapacitet
- 2000 mAh
- Battery
- Lithium-ion
- Nominal Cell Capacity (1st cell)
- 2000 mAh cell
- Kapacitet baterije
- 2000 mAh battery
- Estimated Battery Life
- 15.0 hours
- Estimated Average Current
- 133 mA
- Related Page:
- URL
- Data Integrity
- Final
- Added
- 2005-05-24 23:09
Softver
- Platforma
- Windows (mobile-class)
- Operativni sistem
- Microsoft Windows CE 5.0 (Macallan)
- Operating System Kernel Version
- 5.00 Build 1400
Zvuk
- Audio Channel(s)
- stereo
- Microphone(s)
- mono
- D/A Converter Nominal Resolution
- 16 bit quantization
- Loudspeaker(s):
- mono
- Audio Output:
- 3.5mm
- Mrežni opsezi
- Ne
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Touchscreen Type
- Resistive touch sensing screen
- Touchscreen Simultaneous Touch Points
- Single-touch
- Tastatura
- Attachable QWERTY
- Number of keys
- 53
- Directional Pad
- Four-way (with action button)-way
- Proširenja
- CF I. , CF II.
- USB
- USB 1.1
- USB Services
- USB Host , USB Power Delivery
- USB Connector
- Proprietary
- Bluetooth
- Ne
- Wi‑Fi
- IEEE 802.11b
- IR
- IrDA 1.3
- Serial
- Recommended Standard 232
- Serial Connector:
- Proprietary
- Serial Data Rate:
- 115200 bps
- FM Radio Receiver
- Ne
- Supported GPS protocol(s)
- Ne
Kamere
- Senzor kamere
- Ne
- Focus
- Ne
- Flash
- Ne
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Sensor
- Ne
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in accelerometer
- Ne
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
