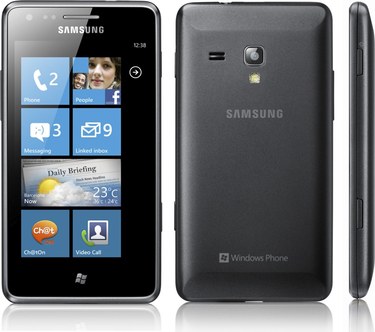

Samsung GT-S7530 Omnia M / GT-S7530E

Osnovno

Datum izlaska

2012-06-01

Brend

Samsung

Model

GT-S7530 Omnia M / GT-S7530E

Dizajner hardvera

Samsung Electronics

Proizvođač

Samsung Electronics

Kategorija

Smartphone

Kućište

Masa

119 g

Širina

64.1 mm

Visina

121.6 mm

Debljina

10.5 mm

Zapremina kućišta

81.8 ccm

Ekran

Tip

AM-OLED display

Dijagonala

3.98 inča

Rezolucija

480x800

Gustina

235 ppi

Rezolucija

480x800

Širina ekrana

51.96 mm

Visina ekrana

86.61 mm

Horizontal Full Bezel Width

12.14 mm

Površina ekrana

4500.4 square millimeter

Display Area Utilization

57.7%

Pixel Size

0.10826 mm/pixel

Gustina piksela

235 PPI

Tip ekrana

Color AM-OLED display

Display Subtype

Super AM-OLED

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Self-illuminating

Display Subpixel Scheme

RGBG PenTile Matrix (2 subpixels)

Zaštita ekrana

Ne

Graphical Controller

Qualcomm Adreno 205

Dedicated Graphics Memory

0.25 MiB

A/V Out

Ne

Platforma

Sistem

Windows Mobile

Čip

qualcomm-snapdragon-s2-msm8255

Takt procesora

1000 MHz

Procesor

Qualcomm Snapdragon S2 MSM8255, 2010, 32 bit, single-core, 256 Kbyte L2, 45 nm, Qualcomm Adreno 205 GPU

Tip RAM memorije

mobile (LP) DDR2 SDRAM

RAM

384 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

3814 MiB non-volatile

Memorija

RAM

1 GB

Interna

4 GB

Baterija

Kapacitet

1500 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1500 mAh cell

Kapacitet baterije

1500 mAh battery

Data Integrity

Preliminary

Added

2012-07-03 09:57

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Phone 7.5 (Mango)

Operating System Kernel Version

7.10

Softverske mogućnosti

Navigation software

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 900MHz (Band VIII) bands

Supported Cellular Data Links

GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSDPA 7.2 Mbps (Cat. 8) , HSPA+ 21.1 Mbps (Cat. 18) data links

SIM

Da

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

Qualcomm MSM8255

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 2.1 + Enhanced Data Rate

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

Wireless Services

DLNA

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS

Navigation Controller

Qualcomm MSM8255 gpsOne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2592x1944 pixel

Number of effective pixels

5.0 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

1280x720 pixel

Recordable Video Formats

3G2 , MPEG4

Flash

single LED

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

640x480 pixel

Secondary Camera Number of pixels

0.3 MP sec. cam

Secondary Recordable Image Formats

JPG

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Additional sensors

Light intensity sensor , Proximity sensor

Zaštita od prašine

Da

Zaštita od vode

Da
