Samsung

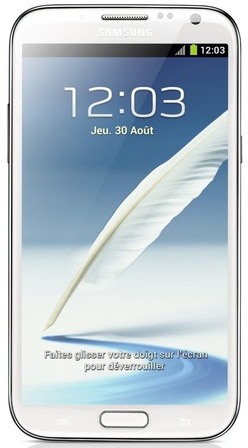

Samsung GT-N7108D Galaxy Note II TD-LTE
Model iz 2013. godine, ekran od 5.55 inča, baterija od 3100 mAh.
Ovo je posebna verzija uređaja. Glavna stranica modela: Samsung GT-N7105T Galaxy Note II LTE.
Druge verzije ovog modela
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2013-09-01
- Brend
- Samsung
- Model
- GT-N7108D Galaxy Nete II TD-LTE
- Dizajner hardvera
- Samsung Electronics
- Proizvođač
- Samsung Electronics
- Dodatna oprema
- Active stylus
- Kategorija
- Smartphone
Kućište
- Masa
- 182.5 g
- Širina
- 80.5 mm
- Visina
- 151.1 mm
- Debljina
- 9.4 mm
- Zapremina kućišta
- 114.3 ccm
Ekran
- Tip
- AM-OLED display
- Dijagonala
- 5.55 inča
- Rezolucija
- 720x1280
- Gustina
- 265 ppi
- Rezolucija
- 720x1280
- Širina ekrana
- 69.08 mm
- Visina ekrana
- 122.8 mm
- Horizontal Full Bezel Width
- 11.42 mm
- Površina ekrana
- 8483.1 square millimeter
- Display Area Utilization
- 69.7%
- Pixel Size
- 0.09594 mm/pixel
- Gustina piksela
- 265 PPI
- Tip ekrana
- Color AM-OLED display
- Display Subtype
- HD Super AM-OLED
- Dubina boja
- 24 bit/pixel
- Number of Display Scales
- 16.8M
- Osvetljenje ekrana
- Self-illuminating
- Display Subpixel Scheme
- RGBG PenTile Matrix (2 subpixels)
- Zaštita ekrana
- Corning Gorilla Glass 2
- Graphical Controller
- Qualcomm Adreno 320
- Dedicated Graphics Memory
- 0.5 MiB
- GPU Clock:
- 450 MHz
- A/V Out
- MHL (Unspecified)
- A/V Out Max. Resolution
- 1920x1080 (1080p) FHD
Platforma
- Sistem
- Android
- Čip
- qualcomm-snapdragon-600-apq8064ab
- Takt procesora
- 1890 MHz
- Procesor
- Qualcomm Snapdragon 600 APQ8064AB, 2013, 32 bit, quad-core, 16 Kbyte I-Cache, 16 Kbyte D-Cache, 2048 Kbyte L2, 28 nm, Qualcomm Adreno 320 enhanced GPU
- Tip RAM memorije
- mobile (LP) DDR3 SDRAM
- RAM
- 2048 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- eMMC 4.5
- Interna memorija
- 15259 MiB non-volatile
Memorija
- RAM
- 2 GB
- Interna
- 16 GB
Baterija
- Kapacitet
- 3100 mAh
- Battery
- Lithium-ion
- Nominal Cell Capacity (1st cell)
- 3100 mAh cell
- Kapacitet baterije
- 3100 mAh battery
- Market Countries
- China
- Market Regions
- Asia
- Data Integrity
- Preliminary
- Added
- 2013-07-28 23:50
Softver
- Platforma
- Google Android
- Operativni sistem
- Google Android 4.2.2 (Jelly Bean)
Zvuk
- Audio Channel(s)
- stereo
- Microphone(s)
- stereo
- Loudspeaker(s):
- mono
- Audio Output:
- 3.5mm
- Mrežni opsezi
- GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , TD-SCDMA 2000 MHz (B34) , TD-SCDMA 1900 MHz (B39) , LTE 1800 MHz (Band 3) , LTE 2600 MHz (Band 7) , TD-LTE 1900 MHz (Band 39) , TD-LTE 2300 MHz (Band XL) , TD-LTE 2500 MHz (Band XLI) bands
- Supported Cellular Data Links
- GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 12 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 5.76 Mbps (Cat. 6) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , HSPA+ 42.2 Mbps (Cat. 20) , LTE (Cat. unspecified) , LTE 100 Mbps / 50 Mbps (Cat. 3) data links
- SIM
- Micro-SIM (3FF)
- Cellular Antenna
- Internal antenna
- Call Alert Sound
- 64-chord melody
- Complementary Phone Services
- Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC
- Cellular Controller
- Qualcomm MDM9215M
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Touchscreen Type
- Capacitive multi-touch sensing screen
- Touchscreen Simultaneous Touch Points
- Da
- Proširenja
- TransFlash , microSD , microSDHC , microSD Extended Capacity
- USB
- USB 2.0
- USB Services
- USB charging , USB Host , USB On-The-Go 1.3 , USB Power Delivery
- USB Connector
- USB Series Micro-AB
- Bluetooth
- Bluetooth 4.0
- Bluetooth profiles
- A2DP , A2DP with aptX codec , AVRCP
- Wi‑Fi
- IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac
- Wireless Services
- Wi-Fi Direct , Wi-Fi Tethering
- FM Radio Receiver
- Nepoznato
- Supported GPS protocol(s)
- GPS (NMEA 0183)
- Satellite Antenna:
- Internal antenna
- Complementary Satellite Services
- Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging
- Supported GLONASS protocol(s)
- L1OF
- Navigation Controller
- Qualcomm APQ8064T gpsOne
Kamere
- Camera Placement
- Rear
- Senzor kamere
- BSI CMOS
- Camera Resolution
- 3264x2448 pixel
- Number of effective pixels
- 8.0 MP camera
- Zoom
- 1.0 x optical zoom
- Focus
- Contrast Detection Autofocus (CD AF)
- Recordable Image Formats
- JPG
- Video snimanje
- 1920x1080 pixel
- Recordable Video Formats
- 3GP , 3G2 , MPEG4
- Flash
- single LED
- Camera Extra Functions
- Touch focus , Macro mode , Panorama Photo
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Placement
- Front
- Secondary Camera Sensor
- CMOS
- Prednja kamera
- 1920x1080 pixel
- Secondary Camera Number of pixels
- 2.1 MP sec. cam
- Secondary Recordable Image Formats
- JPG
- Secondary Video Recording
- 1280x720 pixel
- Secondary Recordable Video Formats
- 3G2
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in compass
- Da
- Built-in accelerometer
- Da
- Built-in gyroscope
- Da
- Additional sensors
- Barometer , Light intensity sensor , Proximity sensor
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
