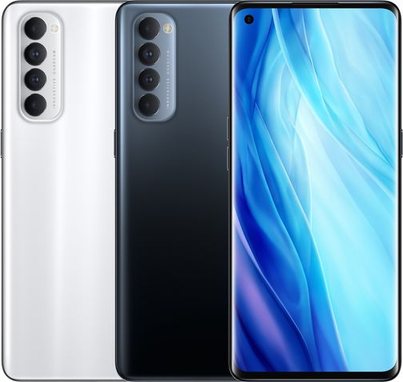

Oppo Reno4 Pro 4G Dual SIM TD-LTE APAC V1 128GB CPH2109 (BBK 2109)

Osnovno

Datum izlaska

2020-08-01

Brend

Oppo

Model

Reno4 Pro 4G Dual SIM TD-LTE APAC V1 128GB CPH2109

Najavljen

2020 Jul

Dizajner hardvera

Oppo

Proizvođač

BBK Electronics

Kodna oznaka

BBK 2109

Dodatna oprema

Haptic touch feedback

Kategorija

Smartphone

Kućište

Masa

161 g

Širina

73.2 mm

Visina

160.2 mm

Debljina

7.7 mm

Zapremina kućišta

90.3 ccm

Ekran

Tip

AM-OLED display

Dijagonala

6.54 inča

Rezolucija

1080x2400

Gustina

403 ppi

Display Hole

1-hole

Rezolucija

1080x2400

Širina ekrana

68.12 mm

Visina ekrana

151.38 mm

Horizontal Full Bezel Width

5.08 mm

Površina ekrana

10312 square millimeter

Display Area Utilization

87.9%

Pixel Size

0.06307 mm/pixel

Gustina piksela

403 PPI

Tip ekrana

Color AM-OLED display

Display Subtype

Super AM-OLED

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

10 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Display Refresh Rate

90 Hz

Zaštita ekrana

Corning Gorilla Glass 5

Display Module

Samsung

Graphical Controller

Qualcomm Adreno 618

Dedicated Graphics Memory

0.5 MiB

GPU Clock:

750 MHz

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-720g-sm7125

Takt procesora

2300 MHz

Procesor

Qualcomm Snapdragon 720G SM7125 (Atoll), 2020, 64 bit, octa-core, 8 nm, Qualcomm Adreno 618 GPU

Tip RAM memorije

LPDDR4x SDRAM

RAM

8192 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

UFS 2.1 2-lane

Interna memorija

122070 MiB non-volatile

Memorija

RAM

8 GB

Interna

128 GB

Baterija

Kapacitet

4000 mAh

Softver

Platforma

Google Android

Operativni sistem

Google Android 10 (Q)

Softverske mogućnosti

Voice Command , Navigation software , Augmented Reality (AR) , Intelligent personal assistant , Face Recognition

Zvuk

Audio Channel(s)

stereo

Microphone(s)

stereo

Loudspeaker(s):

mono

Audio Output:

USB Type-C

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , LTE 850 MHz (Band 5) , LTE 900 MHz (Band 8) , TD-LTE 2600 MHz (Band 38) , TD-LTE 2300 MHz (Band XL) , TD-LTE 2500 MHz (Band XLI) bands

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE)

Cellular Controller

Qualcomm SM7125

SAR (head)

1.190 W/kg

SAR (body)

0.740 W/kg

Dual Cellular Network Operation

Dual standby

Sec. Supported Cellular Networks:

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , LTE 850 MHz (Band 5) , LTE 900 MHz (Band 8) , TD-LTE 2600 MHz (Band 38) , TD-LTE 2300 MHz (Band XL) , TD-LTE 2500 MHz (Band XLI)

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Qualcomm SM7125

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Touchscreen Sampling rate

180 Hz

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB On-The-Go 2.0 , USB Power Delivery , USB Power Delivery 2.0 , USB Power Delivery 3.0

USB Connector

USB Type-C reversible

Max. Charging Power

65.0 W charging

Bluetooth

Bluetooth 5.1

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , GAVDP , HID , HSP , MAP , OPP , PAN , PBA

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering , WiDi , Wi-Fi Calling (VoWiFi)

NFC

NFC A , NFC B

FM Radio Receiver

FM radio (88-108 MHz) with RDS

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Geotagging , QuickGPS , QZSS

Supported GLONASS protocol(s)

L1OF

Supported Galileo service(s)

E1

Supported BeiDou system (BDS)

B1I BeiDou receiver

Navigation Controller

Qualcomm SM7125

Kamere

Camera Placement

Rear

Camera Module

Sony IMX586

Senzor kamere

BSI CMOS

Image Sensor Format

1/2.00

Image Sensor Pixel Size

0.80 micrometer

Camera Resolution

8000x6000 pixel

Number of effective pixels

48.0 MP camera

Aperture (W)

f/1.70

Zoom

1.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Min. Equiv. Focal Length

26 mm

Recordable Image Formats

JPG

Video snimanje

3840x2160 pixel

Recordable Video Formats

HEVC , MPEG4

Flash

single LED

Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , Pixel unification , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. Camera Image Sensor

BSI CMOS

Aux. Camera Module

SK Hynix Hi846

Aux. Cam. Image Sensor Format

1/4.00

Aux. Cam. Image Sensor Pixel Size

1.12 micrometer

Aux. Camera Number of Pixels

8.0 MP aux. cam

Aux. Camera Aperture (W)

f/2.20

Aux. Cam. Min. Equiv. Focal Length

16 mm

Aux. Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , HDR photo , Burst mode , Panorama Photo , Face tagging , Smile detection , Intelligent scene detection

Aux. 2 Camera Image Sensor

CMOS

Aux. 2 Cam. Image Sensor Pixel Size

1.75 micrometer

Aux. 2 Cam. Image Sensor Format

1/5.00

Aux. 2 Camera Number of Pixels

1.9 MP aux. 2 cam

Aux. 2 Camera Aperture (W)

f/2.40

Aux. 2 Cam. Min. Equiv. Focal Length

22 mm

Aux. 2 Camera Extra Functions

Burst mode , Macro mode

Aux. 3 Camera Image Sensor

Mono CMOS

Aux. 3 Cam. Image Sensor Pixel Size

1.75 micrometer

Aux. 3 Camera Number of Pixels

1.9 MP aux. 3 cam

Aux. 3 Camera Aperture (W)

f/2.40

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Module

Sony IMX616

Secondary Camera Sensor

BSI CMOS

Secondary Image Sensor Format

1/2.80

Secondary Image Sensor Pixel Size

0.80 micrometer

Prednja kamera

6560x4928 pixel

Secondary Camera Number of pixels

32.3 MP sec. cam

Secondary Aperture (W)

f/2.40

Secondary Min. Equiv. Focal Length

26 mm

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1920x1080 pixel

Secondary Recordable Video Formats

3GP

Secondary Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , Pixel unification , HDR photo , HDR video , Slow motion video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

3D (3-axis) accelerometer

Built-in gyroscope

Da

Additional sensors

In-screen fingerprint sensor , Light intensity sensor , Proximity sensor , Step counter

Zaštita od prašine

Da
