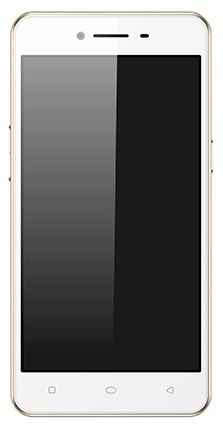

Oppo A37 Dual SIM TD-LTE CN A37m (Oppo Neo 9)

Osnovno

Datum izlaska

2016-05-17

Brend

Oppo

Model

A37 Dual SIM TD-LTE CN A37m

Dizajner hardvera

Oppo

Proizvođač

BBK Electronics

Kodna oznaka

Oppo Neo 9

Dodatna oprema

Haptic touch feedback

Kategorija

Smartphone

Kućište

Masa

143 g

Širina

71 mm

Visina

143.1 mm

Debljina

7.68 mm

Zapremina kućišta

78 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

5 inča

Rezolucija

720x1280

Gustina

294 ppi

Rezolucija

720x1280

Širina ekrana

62.26 mm

Visina ekrana

110.69 mm

Horizontal Full Bezel Width

8.74 mm

Površina ekrana

6891.9 square millimeter

Display Area Utilization

67.8%

Pixel Size

0.08648 mm/pixel

Gustina piksela

294 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Display Dynamic Range Depth

8 bit/pixel

Osvetljenje ekrana

Da

Display Light Reflection Mode

Da

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Corning Gorilla Glass 4

Graphical Controller

ARM Mali-T860MP2

A/V Out

Ne

Platforma

Sistem

Android

Čip

mediatek-mt6750

Takt procesora

1500 MHz

Procesor

MediaTek MT6750, 2016, 64 bit, octa-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache, 512 Kbyte L2, 28 nm, ARM Mali-T860 GPU

Tip RAM memorije

mobile (LP) DDR3 SDRAM

RAM

2048 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

eMMC 5.1

Interna memorija

15259 MiB non-volatile

Memorija

RAM

2 GB

Interna

16 GB

Baterija

Kapacitet

2630 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

2630 mAh cell

Kapacitet baterije

2630 mAh battery

Market Countries

China

Mobile Operator

China Telecom Corporation Limited

Data Integrity

Preliminary

Added

2016-04-24 18:57

Softver

Platforma

Google Android

Operativni sistem

Google Android 5.1 (Lollipop)

Softverske mogućnosti

Navigation software

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) , UMTS 900MHz (Band VIII) , CDMA 800MHz (BC0, 850) , TD-SCDMA 2000 MHz (B34) , TD-SCDMA 1900 MHz (B39) , LTE 2100 MHz (Band 1) , LTE 1800 MHz (Band 3) , TD-LTE 2600 MHz (Band 38) , TD-LTE 1900 MHz (Band 39) , TD-LTE 2300 MHz (Band XL) , TD-LTE 2500 MHz (Band XLI) bands

Supported Cellular Data Links

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSDPA (Cat. unspecified) , HSPA+ 21.1 Mbps (Cat. 18) , cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 , CDMA2000 1xEV-DO Revision A , TD-SCDMA , TD-HSDPA , LTE (Cat. unspecified) , LTE 150 Mbps / 50 Mbps (Cat. 4) data links

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

Mediatek MT6750

Dual Cellular Network Operation

Dual standby

Sec. Supported Cellular Networks:

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2)

Sec. Supported Cellular Data Links:

GPRS (Class unspecified) , EDGE (Class unspecified)

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Mediatek MT6750

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Proširenja

TransFlash , microSD , microSDHC , microSD Extended Capacity

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 4.0

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

Wireless Services

Wi-Fi Tethering

FM Radio Receiver

FM radio (88-108 MHz)

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Navigation Controller

Mediatek MT6750

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Image Sensor Format

1/3.20

Image Sensor Pixel Size

1.40 micrometer

Camera Resolution

3264x2448 pixel

Number of effective pixels

8.0 MP camera

Aperture (W)

f/2.20

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

1920x1080 pixel

Recordable Video Formats

3GP , 3G2 , MPEG4

Flash

single LED

Camera Extra Functions

HDR photo , Macro mode , Panorama Photo , Face detection , Face retouch

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Secondary Image Sensor Format

1/4.00

Secondary Image Sensor Pixel Size

1.40 micrometer

Prednja kamera

2592x1944 pixel

Secondary Camera Number of pixels

5.0 MP sec. cam

Secondary Aperture (W)

f/2.40

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1280x720 pixel

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Additional sensors

Light intensity sensor , Proximity sensor

Zaštita od prašine

Da

Zaštita od vode

Da
