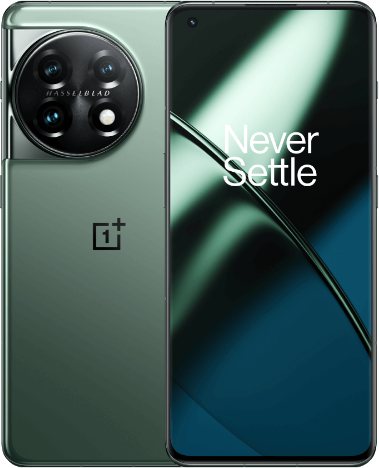

OnePlus 11 5G Premium Edition Dual SIM TD-LTE CN 256GB PHB110 (BBK Salami)

Osnovno

Datum izlaska

2023-01-09

Brend

OnePlus

Model

11 5G Premium Edition Dual SIM TD-LTE CN 256GB PHB110

Najavljen

2023 Jan 4

Dizajner hardvera

Oppo

Proizvođač

BBK Electronics

Kodna oznaka

BBK Salami

Dodatna oprema

Haptic touch feedback , Tactile touch feedback

Kategorija

Smartphone

Kućište

Masa

205 g

Širina

74.1 mm

Visina

163.1 mm

Debljina

8.53 mm

Zapremina kućišta

103.1 ccm

Ekran

Tip

AM-OLED display

Dijagonala

6.7 inča

Rezolucija

1440x3216

Gustina

526 ppi

Display Hole

1-hole

Rezolucija

1440x3216

Širina ekrana

69.55 mm

Visina ekrana

155.34 mm

Horizontal Full Bezel Width

4.55 mm

Površina ekrana

10804.6 square millimeter

Display Area Utilization

89.4%

Pixel Size

0.0483 mm/pixel

Gustina piksela

526 PPI

Tip ekrana

Color AM-OLED display

Dubina boja

30 bit/pixel

Number of Display Scales

1073.7M

Display Dynamic Range Depth

10 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Display Refresh Rate

120 Hz

Zaštita ekrana

Corning Gorilla Glass Victus

Display Module

Samsung

Graphical Controller

Qualcomm Adreno 740

GPU Clock:

680 MHz

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-8-gen-2-5g-sm8550-ab

Takt procesora

3187 MHz

Procesor

Qualcomm Snapdragon 8 Gen 2 5G SM8550-AB (Kalama), 2022, 64 bit, octa-core, 8192 Kbyte L3, 4 nm, Qualcomm Adreno 740 GPU

Tip RAM memorije

LPDDR5X SDRAM

RAM

12288 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

UFS 4.0

Interna memorija

244140 MiB non-volatile

Memorija

RAM

12 GB

Interna

256 GB

Baterija

Kapacitet

5000 mAh

Battery

Lithium-ion

Battery Cells in Parallel

Da

Nominal Cell Voltage (1st cell)

3.89 Volts

Nominal Cell Capacity (1st cell)

2500 mAh cell

Nominal Battery Voltage (2nd cell)

3.89 Volts

Nominal Cell Capacity (2nd cell)

2500 mAh cell

Nominal Battery Voltage

3.89 Volts

Kapacitet baterije

5000 mAh battery

Nominal Battery Energy

19.45 Wh

Wireless Charging

Qi wireless charging , Qi reverse wireless charging

Softver

Platforma

Google Android

Operativni sistem

Google Android 13 (Tiramisu)

Softverske mogućnosti

Voice Command , Navigation software , Intelligent personal assistant , Face Recognition

Zvuk

Audio Channel(s)

stereo

Microphone(s)

stereo

Loudspeaker(s):

stereo

Audio Output:

USB Type-C

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE)

Cellular Controller

Qualcomm SM8550

Dual Cellular Network Operation

Dual standby

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Qualcomm SM8550

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Touchscreen Sampling rate

1000 Hz

Proširenja

Ne

USB

USB 2.0

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB On-The-Go 2.0 , USB Power Delivery , USB Power Delivery 2.0 , USB Power Delivery 3.0

USB Connector

USB Type-C reversible

Max. Charging Power

100.0 W charging

Bluetooth

Bluetooth 5.3

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , GAVDP , HFP , HID , HSP , MAP , OPP , PAN , PBA , SPP

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac , IEEE 802.11ax (Wi-Fi 6) , IEEE 802.11be (Wi-Fi 7)

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering , Wi-Fi Calling (VoWiFi)

NFC

NFC A , NFC B

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Kétfrekvenciás GPS , Geotagging , QuickGPS

Supported GLONASS protocol(s)

L1OF

Supported Galileo service(s)

E1 , E5a

Supported BeiDou system (BDS)

B1c , B1I , B2a BeiDou receiver

Navigation Controller

Qualcomm SM8550

Kamere

Camera Placement

Rear

Camera Module

Sony IMX890

Senzor kamere

BSI CMOS

Image Sensor Format

1/1.56

Image Sensor Pixel Size

1.00 micrometer

Camera Resolution

8160x6144 pixel

Number of effective pixels

50.1 MP camera

Aperture (W)

f/1.80

Zoom

2.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF) , Phase-Detection Autofocus (PD AF)

Min. Equiv. Focal Length

24 mm

Recordable Image Formats

JPG , RAW

Video snimanje

7680x4320 pixel

Recordable Video Formats

MPEG4

Flash

dual LED

Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , Optical Image Stabilization (OIS) , Pixel unification , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Refocus , Touch focus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. Camera Image Sensor

BSI CMOS

Aux. Camera Module

Sony IMX581

Aux. Cam. Image Sensor Format

1/2.00

Aux. Cam. Image Sensor Pixel Size

0.80 micrometer

Aux. Camera Number of Pixels

48.0 MP aux. cam

Aux. Camera Aperture (W)

f/2.20

Aux. Camera Focus

Phase-Detection Autofocus (PD AF)

Aux. Camera Extra Functions

Pixel unification , HDR photo , HDR video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. 2 Camera Image Sensor

BSI CMOS

Aux. 2 Cam. Image Sensor Pixel Size

0.80 micrometer

Aux. 2 Cam. Image Sensor Format

1/2.74

Aux. 2 Camera Number of Pixels

32.0 MP aux. 2 cam

Aux. 2 Camera Aperture (W)

f/2.00

Aux. 2 Cam. Min. Equiv. Focal Length

48 mm

Aux. 2 Camera Focus

Phase-Detection Autofocus (PD AF)

Aux. 2 Camera Extra Functions

Optical Image Stabilization (OIS) , Pixel unification , HDR photo , Burst mode , Panorama Photo , Intelligent scene detection

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

BSI CMOS

Secondary Image Sensor Pixel Size

1.00 micrometer

Prednja kamera

4608x3456 pixel

Secondary Camera Number of pixels

15.9 MP sec. cam

Secondary Aperture (W)

f/2.45

Secondary Recordable Image Formats

JPG

Secondary Video Recording

1920x1080 pixel

Secondary Recordable Video Formats

MPEG4

Secondary Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , HDR photo , HDR video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

3D (3-axis) accelerometer

Built-in gyroscope

3D (3-axis) gyro

Additional sensors

In-screen fingerprint sensor , Light intensity sensor , Proximity sensor

Zaštita od prašine

6 Totally protected from dust (no ingress)

Zaštita od vode

4 Protection against water sprayed from all directions (limited ingress permitted)
