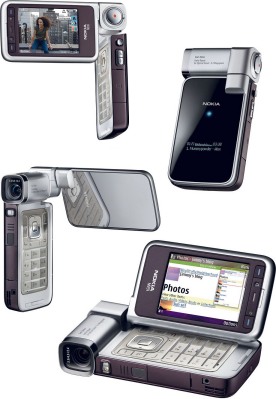

Nokia N93i-5

Osnovno

Datum izlaska

2007-03-01

Brend

Nekia

Model

N93i-5

Dizajner hardvera

Nekia

Proizvođač

Nekia

OEM ID

RM-157

Kategorija

Smartphone

Kućište

Masa

163 g

Širina

58 mm

Visina

108 mm

Debljina

25 mm

Zapremina kućišta

156.6 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.4 inča

Rezolucija

240x320

Gustina

167 ppi

Rezolucija

240x320

Širina ekrana

36.6 mm

Visina ekrana

48.8 mm

Horizontal Full Bezel Width

21.4 mm

Površina ekrana

1786.1 square millimeter

Display Area Utilization

28.5%

Pixel Size

0.1525 mm/pixel

Gustina piksela

167 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Secondary Display Diagonal:

28 mm

Secondary Display Resolution

128x36

Secondary Number of pixels:

4608 pixels

Secondary Horizontal Display Size:

26.95 mm

Secondary Horizontal Display Size :

1.06 inch

Secondary Vertical Display Size:

7.58 mm

Secondary Display Area:

204.3 square millimeter

Secondary Display Pixel Size:

0.21058 mm/pixel

Secondary Display Pixel Density (dot pitch):

121 PPI

Secondary Display Type:

Color TN-TFT LCD 2nd display

Secondary Display Color Depth:

16 bit/pixel

Secondary Number of Display Colors/Scales:

65536

Secondary Display Illumination:

Da

Secondary Display Light Reflection Mode:

transflective

Secondary Display Subpixel Scheme:

RGB Matrix (3 subpixels)

Graphical Controller

PowerVR MBX

A/V Out

Da

A/V Out Max. Resolution

NTSC/PAL

Platforma

Sistem

Symbian

Čip

texas-instruments-omap-2420

Takt procesora

332 MHz

Procesor

Texas Instruments OMAP 2420, 2005, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache, 90 nm, IMG PowerVR MBX GPU

Tip RAM memorije

SDRAM

RAM

64 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

128 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

950 mAh

Battery

Lithium-ion polymer (LiPo)

Nominal Cell Capacity (1st cell)

950 mAh cell

Kapacitet baterije

950 mAh battery

Estimated Battery Life

10.0 hours

Estimated Average Current

95 mA

Market Countries

China , HK , Singapore , Taiwan

Market Regions

Asia , Southeast Asia

Data Integrity

Final

Added

2007-11-21 23:19

Softver

Platforma

Symbian

Operativni sistem

Symbian OS 9.1 Series 60 3rd Edition

Operating System Kernel Version

9.1

Zvuk

Audio Channel(s)

stereo

A/D Sampling Frequency

48000 Hz

Microphone(s)

stereo

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

48000 Hz

Loudspeaker(s):

mono

Audio Output:

Proprietary

Mrežni opsezi

GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) bands

Supported Cellular Data Links

CSD 9.6 kbps , HSCSD 57.6 kbps , GPRS (Class unspecified) , GPRS Multi-slot Class 11 , EDGE (Class unspecified) , EDGE Multi-slot Class 32 data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC

Cellular Controller

TI TMS320C55x

Sec. Supported Cellular Networks:

Ne

Upravljanje

Tastatura

Built-in numeric

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

20

Directional Pad

Four-way (with action button)-way

Proširenja

Secure Digital Input/Output interface , miniSD

USB

USB 2.0

USB Services

USB charging

USB Connector

Proprietary

Bluetooth

Bluetooth 2.0

Wi‑Fi

Ne

IR

IrDA 1.2

FM Radio Receiver

FM radio (88-108 MHz)

Supported GPS protocol(s)

Ne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2048x1536 pixel

Number of effective pixels

3.1 MP camera

Aperture (W)

f/3.30

Zoom

3.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Minimal Focal Length

4.5 mm

Recordable Image Formats

JPG

Video snimanje

640x480 pixel

Recordable Video Formats

3GP , MPEG4

Flash

single LED

Camera Extra Functions

Macro mode

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

352x288 pixel

Secondary Camera Number of pixels

0.1 MP sec. cam

Secondary Recordable Image Formats

JPG

Secondary Video Recording

176x144 pixel

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Da

Zaštita od prašine

Da

Zaštita od vode

Da
