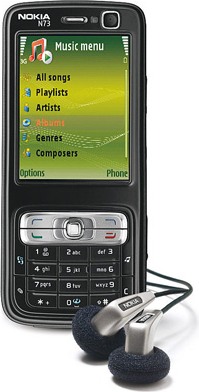

Nokia N73 Music Edition

Osnovno

Datum izlaska

2006-09-01

Brend

Nekia

Model

N73 Music Edition

Dizajner hardvera

Nekia

Proizvođač

Nekia

OEM ID

RM-133

Kategorija

Smartphone

Kućište

Masa

116 g

Širina

49 mm

Visina

110 mm

Debljina

19 mm

Zapremina kućišta

102.4 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.4 inča

Rezolucija

240x320

Gustina

167 ppi

Rezolucija

240x320

Širina ekrana

36.6 mm

Visina ekrana

48.8 mm

Horizontal Full Bezel Width

12.4 mm

Površina ekrana

1786.1 square millimeter

Display Area Utilization

33.1%

Pixel Size

0.1525 mm/pixel

Gustina piksela

167 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

18 bit/pixel

Number of Display Scales

262144

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Symbian

Čip

texas-instruments-omap-1710

Takt procesora

220 MHz

Procesor

Texas Instruments OMAP 1710, 2004, 32 bit, single-core, 32 Kbyte I-Cache, 16 Kbyte D-Cache

Tip RAM memorije

SDRAM

RAM

64 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

128 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1100 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1100 mAh cell

Kapacitet baterije

1100 mAh battery

Estimated Battery Life

12.0 hours

Estimated Average Current

92 mA

Market Countries

Thailand

Market Regions

Asia , Southeast Asia

Related Page:

URL

Data Integrity

Final

Added

2007-11-25 23:25

Softver

Platforma

Symbian

Operativni sistem

Symbian OS 9.1 Series 60 3rd Edition

Operating System Kernel Version

9.1

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

stereo

Audio Output:

Proprietary

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , EDGE Multi-slot Class 11 , UMTS 384 kbps (W-CDMA) data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

TI TMS320C55x

Sec. Supported Cellular Networks:

Ne

Upravljanje

Tastatura

Built-in numeric

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

20

Directional Pad

Four-way (with action button)-way

Proširenja

miniSD

USB

USB 2.0

USB Connector

Proprietary

Bluetooth

Bluetooth 2.0

Wi‑Fi

Ne

IR

IrDA 1.2

FM Radio Receiver

FM radio (88-108 MHz)

Supported GPS protocol(s)

Ne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2048x1536 pixel

Number of effective pixels

3.1 MP camera

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

352x288 pixel

Recordable Video Formats

3GP , MPEG4

Flash

single LED

Camera Extra Functions

Macro mode

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

640x480 pixel

Secondary Camera Number of pixels

0.3 MP sec. cam

Secondary Recordable Image Formats

JPG

Secondary Video Recording

176x144 pixel

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
