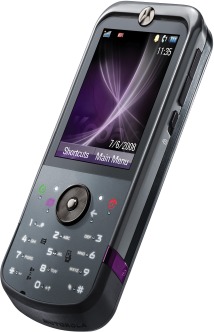

Motorola ZINE ZN5

Osnovno

Datum izlaska

2008-07-01

Brend

Motorola

Model

ZINE ZN5

Dizajner hardvera

Motorola Mobile Devices

Proizvođač

Motorola Mobile Devices

Kategorija

Smartphone

Kućište

Masa

114 g

Širina

50.5 mm

Visina

118 mm

Debljina

16 mm

Zapremina kućišta

95.3 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.4 inča

Rezolucija

240x320

Gustina

167 ppi

Rezolucija

240x320

Širina ekrana

36.6 mm

Visina ekrana

48.8 mm

Horizontal Full Bezel Width

13.9 mm

Površina ekrana

1786.1 square millimeter

Display Area Utilization

30.0%

Pixel Size

0.1525 mm/pixel

Gustina piksela

167 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

18 bit/pixel

Number of Display Scales

262144

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Da

A/V Out Max. Resolution

NTSC/PAL

Platforma

Sistem

Feature phone

Čip

freescale-mxc275-30

Takt procesora

500 MHz

Procesor

Freescale MXC275-30, 2005, 32 bit, single-core, 128 Kbyte L2

Tip RAM memorije

SDRAM

RAM

64 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

512 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

950 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

950 mAh cell

Kapacitet baterije

950 mAh battery

Related Page:

URL

Data Integrity

Final

Added

2008-05-03 09:49

Softver

Platforma

Linux

Operativni sistem

Trolltech Qt for Embedded Linux + MOTOMAGX

Operating System Kernel Version

2.6.10

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 12 data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

StarCore SC140

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Tastatura

Built-in numeric

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

18

Directional Pad

Four-way (with action button)-way

Proširenja

TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 2.0 + Enhanced Data Rate

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11i , IEEE 802.11g

FM Radio Receiver

FM radio (88-108 MHz) with RDS

Supported GPS protocol(s)

Ne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2560x1920 pixel

Number of effective pixels

4.9 MP camera

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

176x144 pixel

Recordable Video Formats

3GP , MPEG4

Flash

real flash

Camera Extra Functions

Macro mode

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
