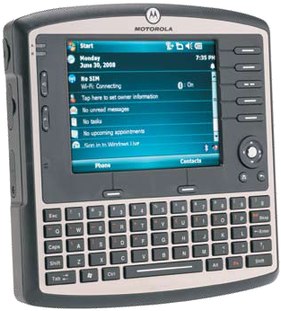

Motorola VC6096

Osnovno

Datum izlaska

2008-10-06

Brend

Motorola

Model

VC6096

Dizajner hardvera

Motorola Mobile Devices

Proizvođač

Motorola Mobile Devices

Kategorija

Personal Digital Assistant (PDA)

Kućište

Masa

150 g

Širina

242 mm

Visina

235 mm

Debljina

49.5 mm

Zapremina kućišta

2815.1 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

6.54 inča

Rezolucija

640x480

Gustina

122 ppi

Rezolucija

640x480

Širina ekrana

132.8 mm

Visina ekrana

99.6 mm

Horizontal Full Bezel Width

109.2 mm

Površina ekrana

13226.9 square millimeter

Display Area Utilization

23.3%

Pixel Size

0.2075 mm/pixel

Gustina piksela

122 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

16 bit/pixel

Number of Display Scales

65536

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Windows Mobile

Čip

intel-xscale-pxa270

Takt procesora

624 MHz

Procesor

Intel XScale PXA270 (Bulverde), 2004, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache

Tip RAM memorije

SDRAM

RAM

128 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

256 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1500 mAh

Battery

Ne

Market Countries

USA

Market Regions

Nerth America (NA)

Data Integrity

Preliminary

Added

2008-10-12 15:35

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Mobile 6.1 Professional

Operating System Kernel Version

5.2

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

44100 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

Da

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) bands

Supported Cellular Data Links

GPRS (Class unspecified) , EDGE (Class unspecified) , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSDPA (Cat. unspecified) data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Complementary Phone Services

Speakerphone

Sec. Supported Cellular Networks:

Ne

Upravljanje

Tastatura

Built-in QWERTY

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

65

Directional Pad

Four-way (with action button)-way

Proširenja

MMC , SD , Secure Digital Input/Output interface

USB

USB 1.1

USB Services

USB charging

USB Connector

USB Series Mini-B (mini-USB)

USB2

USB 1.1

USB2 Services:

USB Host , USB Power Delivery

USB2 connector:

USB Series A

USB3

USB 1.1

USB3 Services:

USB Host , USB Power Delivery

USB3 connector:

USB Series A

Bluetooth

Bluetooth 2.0 + Enhanced Data Rate

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g

LAN

100 BASE-T (100Mbit/s)

LAN Connector:

8P8C ("RJ-45")

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183) , SiRF

Satellite Antenna:

Fixed external antenna and external antenna jack

Complementary Satellite Services

Assisted GPS

Navigation Controller

SiRFstarIII GSC3f/LP

Kamere

Senzor kamere

Ne

Focus

Ne

Recordable Image Formats

BMP , JPG

Recordable Video Formats

3GP , MPEG4 , WMV

Flash

Ne

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

6 Totally protected from dust (no ingress)

Zaštita od vode

4 Protection against water sprayed from all directions (limited ingress permitted)

Military Standard Compliance (MIL-STD)

MIL-STD-810F
