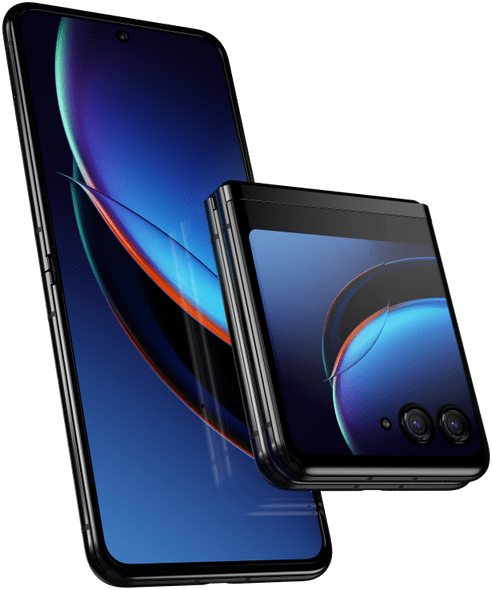

Motorola RAZR+ 5G 4th gen 2023 Dual SIM TD-LTE US 256GB XT2321-5 (Motorola Zeekr)

Osnovno

Datum izlaska

2023-06-23

Brend

Motorola

Model

RAZR+ 5G 4th gen 2023 Dual SIM TD-LTE US 256GB XT2321-5

Najavljen

2023 Jun 1

Dizajner hardvera

Lenovo

Proizvođač

Lenovo

Kodna oznaka

Motorola Zeekr

OEM ID

6786D

Dodatna oprema

Haptic touch feedback , Tactile touch feedback , Foldable screen

Kategorija

Smartphone

Kućište

Masa

188.5 g

Širina

73.95 mm

Visina

170.83 mm

Debljina

6.99 mm

Zapremina kućišta

88.3 ccm

Ekran

Tip

AM-OLED display

Dijagonala

6.9 inča

Rezolucija

1080x2640

Gustina

413 ppi

Display Hole

1-hole

Rezolucija

1080x2640

Širina ekrana

66.36 mm

Visina ekrana

162.21 mm

Horizontal Full Bezel Width

7.59 mm

Površina ekrana

10764.2 square millimeter

Display Area Utilization

85.2%

Pixel Size

0.06144 mm/pixel

Gustina piksela

413 PPI

Tip ekrana

Color AM-OLED display

Display Subtype

Foldable AMOLED

Dubina boja

30 bit/pixel

Number of Display Scales

1073.7M

Display Dynamic Range Depth

10 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Display Refresh Rate

165 Hz

Zaštita ekrana

Ne

Secondary Display Hole

3-hole

Secondary Display Diagonal:

91.44 mm

Secondary Display Resolution

1056x1066

Secondary Number of pixels:

1125696 pixels

Secondary Horizontal Display Size:

64.35 mm

Secondary Horizontal Display Size :

2.53 inch

Secondary Vertical Display Size:

64.96 mm

Secondary Display Area:

4180.5 square millimeter

Secondary Display Pixel Size:

0.06094 mm/pixel

Secondary Display Pixel Density (dot pitch):

417 PPI

Secondary Display Type:

Color AM-OLED 2nd display

Secondary Display Color Depth:

30 bit/pixel

Secondary Number of Display Colors/Scales:

1073.7M

Secondary Display Dyn. Range Depth:

10 bit/pixel

Secondary Display Illumination:

Self-illuminating

Secondary Display Light Reflection Mode:

Da

Secondary Display Subpixel Scheme:

Da

Scratch Resistant Sec. Screen:

Corning Gorilla Glass Victus

Secondary Display Refresh Rate

144 Hz

Graphical Controller

Qualcomm Adreno 730

GPU Clock:

875 MHz

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-8-gen-1-5g-sm8475

Takt procesora

3190 MHz

Procesor

Qualcomm Snapdragon 8+ Gen 1 5G SM8475 (Palima), 2022, 64 bit, octa-core, 6144 Kbyte L3, 4 nm, Qualcomm Adreno 730 GPU

Tip RAM memorije

LPDDR5 SDRAM

RAM

8192 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

UFS 3.1

Interna memorija

244140 MiB non-volatile

Memorija

RAM

8 GB

Interna

256 GB

Baterija

Kapacitet

3800 mAh

Battery

Lithium-ion

Softver

Platforma

Google Android

Operativni sistem

Google Android 13 (Tiramisu)

Softverske mogućnosti

Voice Command , Navigation software , Intelligent personal assistant , Face Recognition

Zvuk

Audio Channel(s)

stereo

Microphone(s)

3

Loudspeaker(s):

stereo

Audio Output:

USB Type-C

SIM

e-SIM (embedded)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Hearing Aid Compatibility (HAC)

M3 , T3

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE)

Cellular Controller

Qualcomm SM8475

Dual Cellular Network Operation

Dual standby

Sec. SIM Card Slot

Nano-SIM (4FF)

Sec. Phone Controller IC:

Qualcomm SM8475

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Touchscreen Sampling rate

360 Hz

Proširenja

Ne

USB

USB 2.0

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB Power Delivery , USB Power Delivery 2.0 , USB Power Delivery 3.0

USB Connector

USB Type-C reversible

Max. Charging Power

30.0 W charging

Bluetooth

Bluetooth 5.3

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , GAVDP , HFP , HID , HSP , MAP , OPP , PAN , PBA

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac , IEEE 802.11ax (Wi-Fi 6)

Wireless Services

Miracast , Wi-Fi Direct , Wi-Fi Tethering , Wi-Fi Calling (VoWiFi)

NFC

NFC A , NFC B

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Kétfrekvenciás GPS , Geotagging , QuickGPS , QZSS

Supported GLONASS protocol(s)

L1OF

Supported Galileo service(s)

E1 , E5a

Navigation Controller

Qualcomm SM8475

Kamere

Camera Placement

Rear

Senzor kamere

BSI CMOS

Image Sensor Format

1/2.55

Image Sensor Pixel Size

1.40 micrometer

Camera Resolution

4000x3000 pixel

Number of effective pixels

12.0 MP camera

Aperture (W)

f/1.50

Zoom

1.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Recordable Image Formats

JPG , RAW

Video snimanje

3840x2160 pixel

Recordable Video Formats

3GP , 3G2 , HEVC , MPEG4

Flash

single LED

Camera Extra Functions

Video Stabilizer (EIS) , Optical Image Stabilization (OIS) , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Refocus , Touch focus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. Camera Image Sensor

CMOS

Aux. Cam. Image Sensor Pixel Size

1.12 micrometer

Aux. Camera Number of Pixels

13.0 MP aux. cam

Aux. Camera Aperture (W)

f/2.20

Aux. Camera Focus

Contrast Detection Autofocus (CD AF)

Aux. Camera Extra Functions

HDR photo , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

BSI CMOS

Secondary Image Sensor Pixel Size

0.70 micrometer

Prednja kamera

6528x4896 pixel

Secondary Camera Number of pixels

32.0 MP sec. cam

Secondary Aperture (W)

f/2.40

Secondary Recordable Image Formats

JPG

Secondary Video Recording

3840x2160 pixel

Secondary Recordable Video Formats

MPEG4

Secondary Camera Extra Functions

Pixel unification , HDR photo , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Intelligent scene detection

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

3D (3-axis) accelerometer

Built-in gyroscope

Da

Additional sensors

Barometer , Fingerprint sensor , Light intensity sensor , Proximity sensor

Zaštita od prašine

5 Protected against dust with limited ingress (no harmful deposit)

Zaštita od vode

2 Protected against direct sprays of water up to 15 degrees from the vertical
