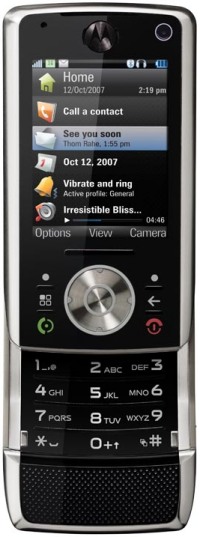

Motorola MOTO Z10

Osnovno

Datum izlaska

2008-05-01

Brend

Motorola

Model

MOTO Z10

Dizajner hardvera

Motorola Mobile Devices

Proizvođač

Motorola Mobile Devices

Kategorija

Smartphone

Kućište

Masa

115 g

Širina

50 mm

Visina

109.7 mm

Debljina

16.5 mm

Zapremina kućišta

90.5 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.2 inča

Rezolucija

240x320

Gustina

181 ppi

Rezolucija

240x320

Širina ekrana

33.6 mm

Visina ekrana

44.8 mm

Horizontal Full Bezel Width

16.4 mm

Površina ekrana

1505.3 square millimeter

Display Area Utilization

27.4%

Pixel Size

0.14 mm/pixel

Gustina piksela

181 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

PowerVR MBX

A/V Out

Ne

Platforma

Sistem

Symbian

Čip

texas-instruments-omap-2420

Takt procesora

330 MHz

Procesor

Texas Instruments OMAP 2420, 2005, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache, 90 nm, IMG PowerVR MBX GPU

Tip RAM memorije

SDRAM

RAM

64 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

128 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1030 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1030 mAh cell

Kapacitet baterije

1030 mAh battery

Estimated Battery Life

10.0 hours

Estimated Average Current

103 mA

Related Page:

URL

Data Integrity

Preliminary

Added

2008-01-27 16:21

Softver

Platforma

Symbian

Operativni sistem

Symbian OS 9.2 UIQ 3.2

Operating System Kernel Version

9.2

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

8000 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

Proprietary

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 12 , UMTS 384 kbps (W-CDMA) , HSDPA (Cat. unspecified) data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Sec. Supported Cellular Networks:

Ne

Upravljanje

Tastatura

Slide-out numeric

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

12

Directional Pad

Four-way (with action button)-way

Proširenja

TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Mini-B (mini-USB)

Bluetooth

Bluetooth 2.0

Bluetooth profiles

A2DP

Wi‑Fi

Ne

FM Radio Receiver

Ne

Supported GPS protocol(s)

Ne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2048x1536 pixel

Number of effective pixels

3.1 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

240x320 pixel

Recordable Video Formats

3GP , MPEG4

Flash

single LED

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

640x480 pixel

Secondary Camera Number of pixels

0.3 MP sec. cam

Secondary Recordable Image Formats

JPG

Secondary Video Recording

176x144 pixel

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
