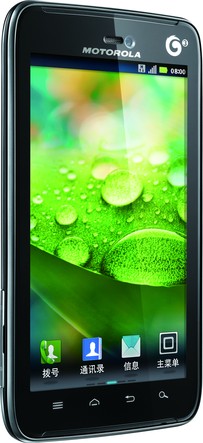

Motorola MOTO MT917 / RAZR R

Osnovno

Datum izlaska

2011-12-01

Brend

Motorola

Model

MOTO MT917 / RAZR R

Dizajner hardvera

Motorola Mobile Devices

Proizvođač

Motorola Mobile Devices

Kategorija

Smartphone

Kućište

Masa

130 g

Širina

69.9 mm

Visina

132.5 mm

Debljina

8.5 mm

Zapremina kućišta

78.7 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

4.29 inča

Rezolucija

540x960

Gustina

257 ppi

Rezolucija

540x960

Širina ekrana

53.44 mm

Visina ekrana

95 mm

Horizontal Full Bezel Width

16.46 mm

Površina ekrana

5076.7 square millimeter

Display Area Utilization

54.8%

Pixel Size

0.09896 mm/pixel

Gustina piksela

257 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Da

Display Light Reflection Mode

Da

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Corning Gorilla Glass

Graphical Controller

PowerVR SGX540

A/V Out

HDMI 1.3

A/V Out Max. Resolution

1920x1080 (1080p) FHD

Platforma

Sistem

Android

Čip

texas-instruments-omap-4430

Takt procesora

1200 MHz

Procesor

Texas Instruments OMAP 4430, 2011, 32 bit, dual-core, 1024 Kbyte L2, 45 nm, IMG PowerVR SGX540 GPU

Tip RAM memorije

mobile (LP) DDR2 SDRAM

RAM

1024 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Memorija

RAM

1 GB

Baterija

Kapacitet

1780 mAh

Battery

Lithium-ion polymer (LiPo)

Nominal Cell Capacity (1st cell)

1780 mAh cell

Kapacitet baterije

1780 mAh battery

Market Countries

China

Market Regions

Asia

Mobile Operator

China Mobile Limited

Data Integrity

Final

Added

2011-11-05 12:25

Softver

Platforma

Google Android

Operativni sistem

Google Android 2.3.5 (Gingerbread)

Operating System Kernel Version

2.6.35

Zvuk

Audio Channel(s)

stereo

Microphone(s)

stereo

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , TD-SCDMA 2000 MHz (B34) bands

Supported Cellular Data Links

GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 12 , TD-SCDMA data links

SIM

Da

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

Da

Proširenja

TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 4.0

Bluetooth profiles

A2DP , A2DP with aptX codec , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11g , IEEE 802.11n

Wireless Services

DLNA , Wi-Fi Tethering

FM Radio Receiver

FM radio (76-90 MHz) with RDS

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS , Geotagging , QuickGPS

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

4128x3096 pixel

Number of effective pixels

12.8 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

1920x1080 pixel

Recordable Video Formats

MPEG4

Flash

single LED

Camera Extra Functions

Electronic Image Stabilizer (EIS) , Macro mode , Face detection

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

1280x720 pixel

Secondary Camera Number of pixels

0.9 MP sec. cam

Secondary Video Recording

1280x720 pixel

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Zaštita od prašine

Da

Zaštita od vode

Da
