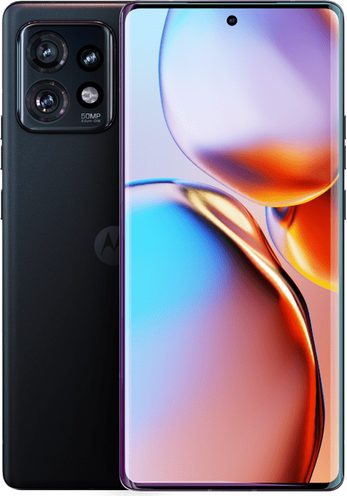

Motorola Moto Edge+ 5G 2023 3rd gen Standard Edition TD-LTE US 512GB XT2301-1 (Motorola RTwo)

Osnovno

Datum izlaska

2023-05-01

Brend

Motorola

Model

Moto Edge+ 5G 2023 3rd gen Standard Edition TD-LTE US 512GB XT2301-1

Najavljen

2023 May 2

Dizajner hardvera

Lenovo

Proizvođač

Lenovo

Kodna oznaka

Motorola RTwo

OEM ID

PAWJ0010CA

Dodatna oprema

Haptic touch feedback , Tactile touch feedback

Kategorija

Smartphone

Kućište

Masa

203 g

Širina

74 mm

Visina

161.16 mm

Debljina

8.59 mm

Zapremina kućišta

102.4 ccm

Ekran

Tip

AM-OLED display

Dijagonala

6.67 inča

Rezolucija

1080x2400

Gustina

395 ppi

Display Hole

1-hole

Rezolucija

1080x2400

Širina ekrana

69.52 mm

Visina ekrana

154.48 mm

Horizontal Full Bezel Width

4.48 mm

Površina ekrana

10738.8 square millimeter

Display Area Utilization

90.0%

Pixel Size

0.06437 mm/pixel

Gustina piksela

395 PPI

Tip ekrana

Color AM-OLED display

Dubina boja

30 bit/pixel

Number of Display Scales

1073.7M

Display Dynamic Range Depth

10 bit/pixel

Osvetljenje ekrana

Self-illuminating

Display Light Reflection Mode

Da

Display Subpixel Scheme

Da

Display Refresh Rate

165 Hz

Zaštita ekrana

Corning Gorilla Glass Victus

Graphical Controller

Qualcomm Adreno 740

GPU Clock:

680 MHz

A/V Out

DisplayPort (Unspecified)

A/V Out Max. Resolution

3840x2160 (2160p) 4K UHD

Platforma

Sistem

Android

Čip

qualcomm-snapdragon-8-gen-2-5g-sm8550-ab

Takt procesora

3187 MHz

Procesor

Qualcomm Snapdragon 8 Gen 2 5G SM8550-AB (Kalama), 2022, 64 bit, octa-core, 8192 Kbyte L3, 4 nm, Qualcomm Adreno 740 GPU

Tip RAM memorije

LPDDR5X SDRAM

RAM

8192 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

UFS 4.0

Interna memorija

488281 MiB non-volatile

Memorija

RAM

8 GB

Interna

512 GB

Baterija

Kapacitet

5100 mAh

Battery

Lithium-ion polymer (LiPo)

Nominal Cell Capacity (1st cell)

5100 mAh cell

Kapacitet baterije

5100 mAh battery

Wireless Charging

Qi wireless charging

Max. Wireless Charging Power

15.0 W

Market Countries

Canada , USA

Market Regions

Nerth America (NA)

Softver

Platforma

Google Android

Operativni sistem

Google Android 13 (Tiramisu)

Softverske mogućnosti

Voice Command , Navigation software , Intelligent personal assistant , Face Recognition

Zvuk

Audio Channel(s)

stereo

Microphone(s)

4

Loudspeaker(s):

stereo

Audio Output:

USB Type-C

SIM

Nano-SIM (4FF)

Cellular Antenna

Internal antenna

Call Alert Sound

64-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC , HD Voice , Voice over LTE (VoLTE)

Cellular Controller

Qualcomm SM8550

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Capacitive multi-touch sensing screen

Touchscreen Simultaneous Touch Points

10-point

Touchscreen Sampling rate

360 Hz

Proširenja

Ne

USB

USB 3.1 Gen 2 / USB 3.2 Gen 2x1

USB Services

USB charging , USB fast charging , USB Host , USB On-The-Go 1.3 , USB On-The-Go 2.0 , USB Power Delivery , USB Power Delivery 2.0 , USB Power Delivery 3.0

USB Connector

USB Type-C reversible

Max. Charging Power

68.0 W charging

Bluetooth

Bluetooth 5.3

Bluetooth profiles

A2DP , A2DP with aptX codec , A2DP with aptX HD codec , AVRCP , GAVDP , HFP , HID , HSP , MAP , OPP , PAN , PBA , SPP

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n , IEEE 802.11ac , IEEE 802.11ax (Wi-Fi 6)

Wireless Services

Wi-Fi Direct , Wi-Fi Tethering , WiDi , Wi-Fi Calling (VoWiFi)

NFC

NFC A , NFC B

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Simultaneous GPS (S-GPS) , Assisted GPS , Kétfrekvenciás GPS , Geotagging , QuickGPS , QZSS

Supported GLONASS protocol(s)

L1OF

Supported Galileo service(s)

E1 , E5a

Supported BeiDou system (BDS)

B1I BeiDou receiver

Navigation Controller

Qualcomm SM8550

Kamere

Camera Placement

Rear

Senzor kamere

BSI CMOS

Image Sensor Format

1/1.50

Image Sensor Pixel Size

1.00 micrometer

Camera Resolution

8160x6144 pixel

Number of effective pixels

50.1 MP camera

Aperture (W)

f/1.80

Zoom

2.0 x optical zoom

Focus

Phase-Detection Autofocus (PD AF)

Min. Equiv. Focal Length

35 mm

Recordable Image Formats

JPG , RAW

Video snimanje

7680x4320 pixel

Recordable Video Formats

3GP , 3G2 , MPEG4

Flash

dual LED

Camera Extra Functions

Video Stabilizer (EIS) , Optical Image Stabilization (OIS) , Pixel unification , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Touch focus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. Camera Image Sensor

BSI CMOS

Aux. Camera Module

Samsung S5KJN1SQ

Aux. Cam. Image Sensor Format

1/2.76

Aux. Cam. Image Sensor Pixel Size

0.64 micrometer

Aux. Camera Number of Pixels

50.1 MP aux. cam

Aux. Camera Aperture (W)

f/2.20

Aux. Cam. Min. Equiv. Focal Length

50 mm

Aux. Camera Focus

Phase-Detection Autofocus (PD AF)

Aux. Camera Extra Functions

Pixel unification , HDR photo , HDR video , Red-eye effect reduction , Slow motion video , Burst mode , Refocus , Macro mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. 2 Camera Image Sensor

BSI CMOS

Aux. 2 Cam. Image Sensor Pixel Size

1.22 micrometer

Aux. 2 Cam. Image Sensor Format

1/2.93

Aux. 2 Camera Number of Pixels

12.0 MP aux. 2 cam

Aux. 2 Camera Aperture (W)

f/1.60

Aux. 2 Cam. Min. Equiv. Focal Length

85 mm

Aux. 2 Camera Focus

Phase-Detection Autofocus (PD AF)

Aux. 2 Camera Extra Functions

HDR photo , Red-eye effect reduction , Slow motion video , Burst mode , Refocus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Module

OmniVision OV60A40

Secondary Camera Sensor

BSI CMOS

Secondary Image Sensor Format

1/2.80

Secondary Image Sensor Pixel Size

0.61 micrometer

Prednja kamera

9152x6592 pixel

Secondary Camera Number of pixels

60.3 MP sec. cam

Secondary Aperture (W)

f/2.20

Secondary Recordable Image Formats

JPG , RAW

Secondary Video Recording

3840x2160 pixel

Secondary Recordable Video Formats

MPEG4

Secondary Camera Extra Functions

Electronic Image Stabilizer (EIS) , Video Stabilizer (EIS) , Pixel unification , HDR photo , HDR video , Slow motion video , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) , Intelligent scene detection

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

3D (3-axis) accelerometer

Built-in gyroscope

Da

Additional sensors

Barometer , In-screen fingerprint sensor , Light intensity sensor , Proximity sensor , Step counter

Zaštita od prašine

6 Totally protected from dust (no ingress)

Zaštita od vode

8 Persistently protected against immersion beyond 1 meter of depth

Immersion into liquids (depth limit)

150 cm

Immersion into liquids time limit

30 min
