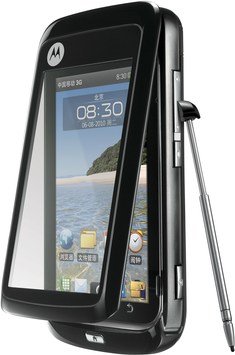

Motorola MING MT810 (Motorola Beihai)

Osnovno

Datum izlaska

2010-09-01

Brend

Motorola

Model

MING MT810

Dizajner hardvera

Motorola Mobile Devices

Proizvođač

Motorola Mobile Devices

Kodna oznaka

Motorola Beihai

Kategorija

Smartphone

Kućište

Masa

160 g

Širina

55.5 mm

Visina

108.6 mm

Debljina

16.7 mm

Zapremina kućišta

100.7 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

3.19 inča

Rezolucija

480x854

Gustina

307 ppi

Rezolucija

480x854

Širina ekrana

39.69 mm

Visina ekrana

70.61 mm

Horizontal Full Bezel Width

15.81 mm

Površina ekrana

2802.4 square millimeter

Display Area Utilization

46.5%

Pixel Size

0.08268 mm/pixel

Gustina piksela

307 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

PowerVR SGX530

A/V Out

Ne

Platforma

Sistem

Android

Čip

texas-instruments-omap-3430

Takt procesora

600 MHz

Procesor

Texas Instruments OMAP 3430, 2008, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache, 65 nm, IMG PowerVR SGX530 GPU

Tip RAM memorije

Da

RAM

256 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

512 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1140 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1140 mAh cell

Kapacitet baterije

1140 mAh battery

Related Page:

URL

Data Integrity

Preliminary

Added

2010-09-04 18:47

Softver

Platforma

Google Android

Operativni sistem

Borqs OPhone OS 2.0 / Android+

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , TD-SCDMA 2000 MHz (B34) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , EDGE Multi-slot Class 10 , TD-SCDMA , TD-HSDPA data links

SIM

Da

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Proširenja

TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 2.1 + Enhanced Data Rate

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11i , IEEE 802.11g

FM Radio Receiver

FM radio (88-108 MHz)

Digital Media Broadcast

CMMB receiver

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2592x1936 pixel

Number of effective pixels

5.0 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

720x480 pixel

Recordable Video Formats

3GP

Flash

single LED

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Placement

Front

Secondary Camera Sensor

CMOS

Prednja kamera

640x480 pixel

Secondary Camera Number of pixels

0.3 MP sec. cam

Secondary Recordable Image Formats

JPG

Secondary Recordable Video Formats

3GP , MPEG4

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Zaštita od prašine

Da

Zaštita od vode

Da
