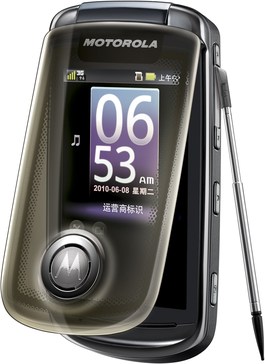

Motorola MING A1680 (Motorola Lucky 3G)

Osnovno

Datum izlaska

2010-09-01

Brend

Motorola

Model

MING A1680

Dizajner hardvera

Motorola Mobile Devices

Proizvođač

Motorola Mobile Devices

Kodna oznaka

Motorola Lucky 3G

Kategorija

Smartphone

Kućište

Masa

120 g

Širina

54.5 mm

Visina

106.9 mm

Debljina

16.8 mm

Zapremina kućišta

97.9 ccm

Ekran

Tip

AM-OLED display

Dijagonala

3.11 inča

Rezolucija

480x800

Gustina

300 ppi

Rezolucija

480x800

Širina ekrana

40.65 mm

Visina ekrana

67.74 mm

Horizontal Full Bezel Width

13.85 mm

Površina ekrana

2753.4 square millimeter

Display Area Utilization

47.3%

Pixel Size

0.08468 mm/pixel

Gustina piksela

300 PPI

Tip ekrana

Color AM-OLED display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Self-illuminating

Display Subpixel Scheme

Da

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Android

Čip

marvell-pxa935

Takt procesora

624 MHz

Procesor

Marvell PXA935 (Tavor-P65), 2009, 32 bit, single-core, 45 nm

Tip RAM memorije

DDR SDRAM

RAM

256 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

512 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1130 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1130 mAh cell

Kapacitet baterije

1130 mAh battery

Market Countries

China

Market Regions

Asia

Related Page:

URL

Data Integrity

Preliminary

Added

2010-08-18 14:09

Softver

Platforma

Google Android

Operativni sistem

Google Android 1.6 (Donut)

Operating System Kernel Version

2.6.29

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 10 , UMTS 384 kbps (W-CDMA) , HSDPA (Cat. unspecified) , HSDPA 3.6 Mbps (Cat. 6) data links

SIM

Da

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Proširenja

TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 2.1 + Enhanced Data Rate

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11i , IEEE 802.11g

FM Radio Receiver

FM radio (88-108 MHz)

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2592x1944 pixel

Number of effective pixels

5.0 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

320x240 pixel

Recordable Video Formats

3GP

Flash

Ne

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Zaštita od prašine

Da

Zaštita od vode

Da
