Motorola

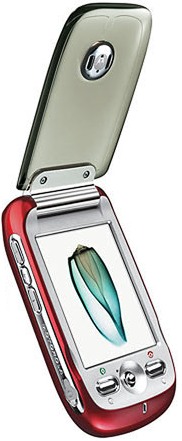

Motorola MING A1200e (Motorola Hainan)
Model iz 2007. godine, ekran od 2.36 inča, baterija od 850 mAh.
Druge verzije ovog modela
Tehnički podaci
Specifikacije
Osnovno
- Datum izlaska
- 2007-09-01
- Brend
- Motorola
- Model
- MING A1200e
- Dizajner hardvera
- Motorola Mobile Devices
- Proizvođač
- Motorola Mobile Devices
- Kodna oznaka
- Motorola Hainan
- Kategorija
- Smartphone
Kućište
- Masa
- 122 g
- Širina
- 51.7 mm
- Visina
- 95.7 mm
- Debljina
- 21.5 mm
- Zapremina kućišta
- 106.4 ccm
Ekran
- Tip
- Color TN-TFT LCD display
- Dijagonala
- 2.36 inča
- Rezolucija
- 240x320
- Gustina
- 169 ppi
- Rezolucija
- 240x320
- Širina ekrana
- 36 mm
- Visina ekrana
- 48 mm
- Horizontal Full Bezel Width
- 15.7 mm
- Površina ekrana
- 1728 square millimeter
- Display Area Utilization
- 34.9%
- Pixel Size
- 0.15 mm/pixel
- Gustina piksela
- 169 PPI
- Tip ekrana
- Color TN-TFT LCD display
- Dubina boja
- 18 bit/pixel
- Number of Display Scales
- 262144
- Osvetljenje ekrana
- Da
- Display Light Reflection Mode
- transflective
- Display Subpixel Scheme
- RGB Matrix (3 subpixels)
- Zaštita ekrana
- Ne
- Graphical Controller
- N/A
- A/V Out
- Ne
Platforma
- Sistem
- Feature phone
- Čip
- intel-xscale-pxa270
- Takt procesora
- 312 MHz
- Procesor
- Intel XScale PXA270 (Bulverde), 2004, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache
- Tip RAM memorije
- SDRAM
- RAM
- 64 MiB RAM
- Non-volatile Memory Type
- Flash EEPROM
- Non-volatile Memory Interface
- Da
- Interna memorija
- 64 MiB non-volatile
Memorija
- RAM
- 1 GB
Baterija
- Kapacitet
- 850 mAh
- Battery
- Lithium-ion
- Nominal Cell Capacity (1st cell)
- 850 mAh cell
- Kapacitet baterije
- 850 mAh battery
- Market Countries
- HK
- Market Regions
- Southeast Asia
- Related Page:
- URL
- Data Integrity
- Final
- Added
- 2008-03-19 00:26
Softver
- Platforma
- Linux
- Operativni sistem
- Trolltech Qt for Embedded Linux + OpenEZX
- Operating System Kernel Version
- 2.4.20
Zvuk
- Audio Channel(s)
- stereo
- Microphone(s)
- mono
- D/A Converter Nominal Resolution
- 16 bit quantization
- D/A Holding Frequency
- 44100 Hz
- Loudspeaker(s):
- stereo
- Audio Output:
- 2.5mm
- Mrežni opsezi
- GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) bands
- Supported Cellular Data Links
- CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) data links
- SIM
- Mini-SIM (2FF)
- Cellular Antenna
- Internal antenna
- Call Alert Sound
- 40-chord melody
- Complementary Phone Services
- Voice transmission , Voice speaker , Vibrating Alert , Speakerphone
- Cellular Controller
- Motorola 56000
- Sec. Supported Cellular Networks:
- Ne
Upravljanje
- Touchscreen Type
- Resistive touch sensing screen
- Touchscreen Simultaneous Touch Points
- Single-touch
- Directional Pad
- Four-way (with action button)-way
- Proširenja
- TransFlash , microSD
- USB
- USB 1.1
- USB Services
- USB charging
- USB Connector
- USB Series Mini-B (mini-USB)
- Bluetooth
- Bluetooth 2.0
- Bluetooth profiles
- A2DP , AVRCP
- Wi‑Fi
- Ne
- FM Radio Receiver
- FM radio (88-108 MHz)
- Supported GPS protocol(s)
- Ne
Kamere
- Camera Placement
- Rear
- Senzor kamere
- CMOS
- Camera Resolution
- 1600x1200 pixel
- Number of effective pixels
- 1.9 MP camera
- Focus
- Ne
- Recordable Image Formats
- JPG
- Video snimanje
- 320x240 pixel
- Recordable Video Formats
- 3GP
- Flash
- Ne
- Aux. Camera Image Sensor
- Ne
- Aux. 2 Camera Image Sensor
- Ne
- Aux. 3 Camera Image Sensor
- Ne
- Aux. 4 Camera Image Sensor
- Ne
- Aux. 4 Camera Focus
- Ne
- Secondary Camera Sensor
- Ne
- Sec. Aux. Cam. Image Sensor
- Ne
- Sec. Aux. 2 Cam. Image Sensor
- Ne
Senzori
- Built-in accelerometer
- Ne
- Zaštita od prašine
- Da
- Zaštita od vode
- Da
