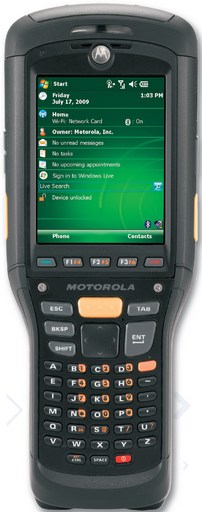

Motorola MC9500-K CDMA

Osnovno

Datum izlaska

2009-09-16

Brend

Motorola

Model

MC9500-K CDMA

Dizajner hardvera

Motorola Enterprise Mobility Solutions

Proizvođač

Motorola Enterprise Mobility Solutions

Kategorija

Smartphone

Kućište

Masa

150 g

Širina

88.9 mm

Visina

233.6 mm

Debljina

50.8 mm

Zapremina kućišta

1055 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

3.7 inča

Rezolucija

480x640

Gustina

216 ppi

Rezolucija

480x640

Širina ekrana

56.4 mm

Visina ekrana

75.2 mm

Horizontal Full Bezel Width

32.5 mm

Površina ekrana

4241.3 square millimeter

Display Area Utilization

20.4%

Pixel Size

0.1175 mm/pixel

Gustina piksela

216 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

16 bit/pixel

Number of Display Scales

65536

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Windows Mobile

Čip

marvell-pxa320

Takt procesora

806 MHz

Procesor

Marvell PXA320 (Monahans P), 2007, 32 bit, single-core, 256 Kbyte L2

Tip RAM memorije

SDRAM

RAM

128 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

512 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1500 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

4800 mAh cell

Related Page:

URL

Data Integrity

Preliminary

Added

2009-09-27 23:52

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Mobile 6.1 Professional

Operating System Kernel Version

5.2.2

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

44100 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

Proprietary

Mrežni opsezi

CDMA 800MHz (BC0, 850) , CDMA 1900MHz (BC1/BC14, PCS) bands

Supported Cellular Data Links

cdmaOne (IS-95) , CDMA2000 1xRTT (IS-2000) , CDMA2000 1xEV-DO Rel. 0 , CDMA2000 1xEV-DO Revision A data links

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Tastatura

Built-in special layout

Number of keys

45

Proširenja

Secure Digital Input/Output interface , TransFlash , microSD , microSDHC

USB

USB 1.1

USB Services

USB charging , USB Host , USB Power Delivery

USB Connector

Proprietary

USB2

USB 2.0

USB2 connector:

USB Series A

Bluetooth

Bluetooth 2.1 + Enhanced Data Rate

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g

IR

IrDA 1.2

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183) , SiRF

Parallel GPS Channels

20

Satellite Antenna:

Internal antenna and external antenna jack

Complementary Satellite Services

Assisted GPS

Navigation Controller

SiRFstarIII GSC3f/LP

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2048x1536 pixel

Number of effective pixels

3.1 MP camera

Zoom

1.0 x optical zoom

Focus

Contrast Detection Autofocus (CD AF)

Recordable Image Formats

JPG

Video snimanje

320x240 pixel

Recordable Video Formats

MPEG

Flash

single LED

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Da

Built-in Barcode Scanner

1D LASER scanner

Zaštita od prašine

6 Totally protected from dust (no ingress)

Zaštita od vode

7 Protected against the effect of immersion up to 1m of depth

Protection against mechanical impacts

180 cm

Military Standard Compliance (MIL-STD)

MIL-STD-810G
