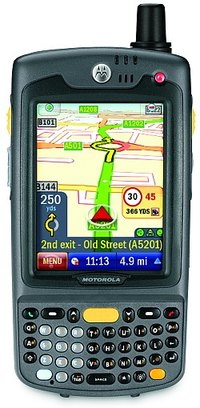

Motorola MC70 GSM

Osnovno

Datum izlaska

2008-02-01

Brend

Motorola

Model

MC70 GSM

Dizajner hardvera

Symbol Technologies

Proizvođač

Motorola Mobile Devices

Kategorija

Smartphone

Kućište

Masa

336 g

Širina

76 mm

Visina

153 mm

Debljina

37 mm

Zapremina kućišta

430.2 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

3.5 inča

Rezolucija

240x320

Gustina

114 ppi

Rezolucija

240x320

Širina ekrana

53.4 mm

Visina ekrana

71.2 mm

Horizontal Full Bezel Width

22.6 mm

Površina ekrana

3802.1 square millimeter

Display Area Utilization

32.7%

Pixel Size

0.2225 mm/pixel

Gustina piksela

114 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

16 bit/pixel

Number of Display Scales

65536

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Windows Mobile

Čip

intel-xscale-pxa270

Takt procesora

624 MHz

Procesor

Intel XScale PXA270 (Bulverde), 2004, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache

Tip RAM memorije

SDRAM

RAM

128 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

128 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1500 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1900 mAh cell

Related Page:

URL

Data Integrity

Final

Added

2009-01-20 18:41

Softver

Platforma

Windows (mobile-class)

Operativni sistem

Microsoft Windows Mobile 6 Professional (Crossbow)

Operating System Kernel Version

5.2

Zvuk

Audio Channel(s)

stereo

A/D Converter Nominal Resolution

16 bit quantization

A/D Sampling Frequency

44100 Hz

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

2.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 900MHz (Band VIII) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Fixed external antenna

Call Alert Sound

1-chord melody

Complementary Phone Services

Voice transmission , Vibrating Alert

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Tastatura

Built-in QWERTY

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

44

Proširenja

MMC , SD , Secure Digital Input/Output interface

USB

USB 1.1

USB Services

USB charging , USB Host , USB Power Delivery

USB Connector

Proprietary

Bluetooth

Bluetooth 1.2

Wi‑Fi

IEEE 802.11a , IEEE 802.11b , IEEE 802.11g

Serial

Recommended Standard 232

Serial Connector:

Proprietary

Serial Data Rate:

115200 bps

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183) , SiRF

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

640x480 pixel

Number of effective pixels

0.3 MP camera

Focus

Ne

Recordable Image Formats

Da

Flash

Ne

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Built-in Barcode Scanner

1D LASER scanner

Zaštita od prašine

5 Protected against dust with limited ingress (no harmful deposit)

Zaštita od vode

4 Protection against water sprayed from all directions (limited ingress permitted)

Protection against mechanical impacts

150 cm
