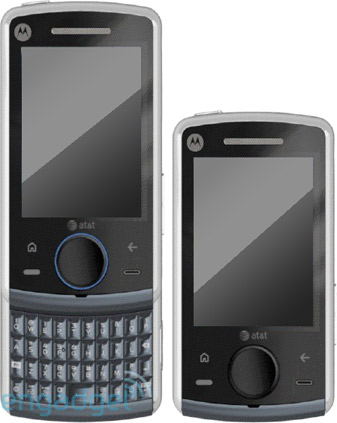

Motorola Heron (Iron Man)

Osnovno

Datum izlaska

2009-01-01

Brend

Motorola

Model

Heron

Kodna oznaka

Iron Man

Dodatna oprema

Passive stylus

Kategorija

Smartphone

Kućište

Masa

125 g

Širina

57.5 mm

Visina

104 mm

Debljina

17.9 mm

Zapremina kućišta

107 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.8 inča

Rezolucija

320x240

Gustina

143 ppi

Rezolucija

320x240

Širina ekrana

56.8 mm

Visina ekrana

42.6 mm

Horizontal Full Bezel Width

0.7 mm

Površina ekrana

2419.7 square millimeter

Display Area Utilization

40.5%

Pixel Size

0.1775 mm/pixel

Gustina piksela

143 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

16 bit/pixel

Number of Display Scales

65536

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Ne

Graphical Controller

N/A

A/V Out

Ne

Platforma

Sistem

Android

Čip

qualcomm-msm7225

Takt procesora

528 MHz

Procesor

Qualcomm MSM7225, 2007, 32 bit, single-core, 65 nm, Qualcomm Adreno 200 enhanced GPU

Tip RAM memorije

SDRAM

RAM

128 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

256 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1500 mAh

Battery

Lithium-ion

Data Integrity

Preliminary

Added

2009-05-29 21:48

Softver

Platforma

Google Android

Operativni sistem

Google Android 2.0.1 (Eclair)

Operating System Kernel Version

2.6.29

Zvuk

Audio Channel(s)

stereo

Microphone(s)

mono

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

Da

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 1900MHz (Band II, PCS) , UMTS 850MHz (Band V, CLR) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 10 , EDGE (Class unspecified) , EDGE Multi-slot Class 10 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 2.0 Mbps (Cat. 5) , HSDPA (Cat. unspecified) , HSDPA 3.6 Mbps (Cat. 6) data links

SIM

Mini-SIM (2FF)

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone

Cellular Controller

Qualcomm MSM7225

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Tastatura

Slide-out QWERTY

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

39

Directional Pad

Four-way (with action button)-way

Scroll Wheel

Optical trackpad

Proširenja

TransFlash , microSD , microSDHC

USB

USB 2.0

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 2.1 + Enhanced Data Rate

Wi‑Fi

Ne

FM Radio Receiver

Ne

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS

Navigation Controller

Qualcomm MSM7225 gpsOne

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2048x1536 pixel

Number of effective pixels

3.1 MP camera

Zoom

1.0 x optical zoom

Focus

Ne

Recordable Image Formats

JPG

Video snimanje

320x240 pixel

Recordable Video Formats

3GP , MPEG4

Flash

single LED

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Secondary Recordable Image Formats

JPG

Secondary Recordable Video Formats

3GP

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in accelerometer

Ne

Zaštita od prašine

Da

Zaštita od vode

Da
