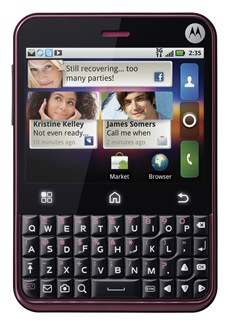

Motorola CHARM ME502

Osnovno

Datum izlaska

2010-09-01

Brend

Motorola

Model

CHARM ME502

Dizajner hardvera

Motorola Mobile Devices

Proizvođač

Motorola Mobile Devices

Kategorija

Smartphone

Kućište

Masa

110 g

Širina

67.2 mm

Visina

98.4 mm

Debljina

11.4 mm

Zapremina kućišta

75.4 ccm

Ekran

Tip

Color TN-TFT LCD display

Dijagonala

2.8 inča

Rezolucija

320x240

Gustina

143 ppi

Rezolucija

320x240

Širina ekrana

56.8 mm

Visina ekrana

42.6 mm

Horizontal Full Bezel Width

10.4 mm

Površina ekrana

2419.7 square millimeter

Display Area Utilization

36.6%

Pixel Size

0.1775 mm/pixel

Gustina piksela

143 PPI

Tip ekrana

Color TN-TFT LCD display

Dubina boja

24 bit/pixel

Number of Display Scales

16.8M

Osvetljenje ekrana

Da

Display Light Reflection Mode

transflective

Display Subpixel Scheme

RGB Matrix (3 subpixels)

Zaštita ekrana

Corning Gorilla Glass

Graphical Controller

PowerVR SGX530

A/V Out

Ne

Platforma

Sistem

Android

Čip

texas-instruments-omap-3410

Takt procesora

600 MHz

Procesor

Texas Instruments OMAP 3410, 2008, 32 bit, single-core, 32 Kbyte I-Cache, 32 Kbyte D-Cache, 65 nm

Tip RAM memorije

SDRAM

RAM

512 MiB RAM

Non-volatile Memory Type

Flash EEPROM

Non-volatile Memory Interface

Da

Interna memorija

512 MiB non-volatile

Memorija

RAM

1 GB

Baterija

Kapacitet

1170 mAh

Battery

Lithium-ion

Nominal Cell Capacity (1st cell)

1170 mAh cell

Kapacitet baterije

1170 mAh battery

Market Countries

China

Market Regions

Asia

Related Page:

URL

Data Integrity

Preliminary

Added

2010-08-22 00:24

Softver

Platforma

Google Android

Operativni sistem

Google Android 2.1 (Eclair)

Operating System Kernel Version

2.6.29

Zvuk

Audio Channel(s)

stereo

Microphone(s)

stereo

D/A Converter Nominal Resolution

16 bit quantization

D/A Holding Frequency

44100 Hz

Loudspeaker(s):

mono

Audio Output:

3.5mm

Mrežni opsezi

GSM 850MHz (B5) , GSM 900MHz (B8) , GSM 1800MHz (B3) , GSM 1900MHz (PCS, B2) , UMTS 2100MHz (Band I, IMT) , UMTS 850MHz (Band V, CLR) bands

Supported Cellular Data Links

CSD 9.6 kbps , GPRS (Class unspecified) , GPRS Class 12 , EDGE (Class unspecified) , EDGE Multi-slot Class 12 , UMTS 384 kbps (W-CDMA) , HSUPA (Cat. unspecified) , HSUPA 2.0 Mbps (Cat. 5) , HSDPA (Cat. unspecified) , HSDPA 3.6 Mbps (Cat. 6) data links

SIM

Da

Cellular Antenna

Internal antenna

Call Alert Sound

40-chord melody

Hearing Aid Compatibility (HAC)

Da

Complementary Phone Services

Voice transmission , Voice speaker , Vibrating Alert , Speakerphone , ANC

Sec. Supported Cellular Networks:

Ne

Upravljanje

Touchscreen Type

Resistive touch sensing screen

Touchscreen Simultaneous Touch Points

Single-touch

Touch Surface Type

Resistive touch sensing surface

Tastatura

Built-in QWERTY

Keyboard Backlight

Aut. keyboard backlight (upon press of key)

Number of keys

45

Proširenja

TransFlash , microSD , microSDHC

USB

USB 2.0

USB Services

USB charging

USB Connector

USB Series Micro-B (Micro-USB)

Bluetooth

Bluetooth 2.0 + Enhanced Data Rate

Bluetooth profiles

A2DP , AVRCP

Wi‑Fi

IEEE 802.11b , IEEE 802.11i , IEEE 802.11g , IEEE 802.11n

FM Radio Receiver

FM radio (88-108 MHz) with RDS

Supported GPS protocol(s)

GPS (NMEA 0183)

Satellite Antenna:

Internal antenna

Complementary Satellite Services

Assisted GPS , Geotagging

Kamere

Camera Placement

Rear

Senzor kamere

CMOS

Camera Resolution

2048x1536 pixel

Number of effective pixels

3.1 MP camera

Zoom

1.0 x optical zoom

Focus

Ne

Recordable Image Formats

JPG

Video snimanje

352x288 pixel

Recordable Video Formats

3GP , MPEG4

Flash

Ne

Aux. Camera Image Sensor

Ne

Aux. 2 Camera Image Sensor

Ne

Aux. 3 Camera Image Sensor

Ne

Aux. 4 Camera Image Sensor

Ne

Aux. 4 Camera Focus

Ne

Secondary Camera Sensor

Ne

Sec. Aux. Cam. Image Sensor

Ne

Sec. Aux. 2 Cam. Image Sensor

Ne

Senzori

Built-in compass

Da

Built-in accelerometer

Da

Zaštita od prašine

Da

Zaštita od vode

Da
